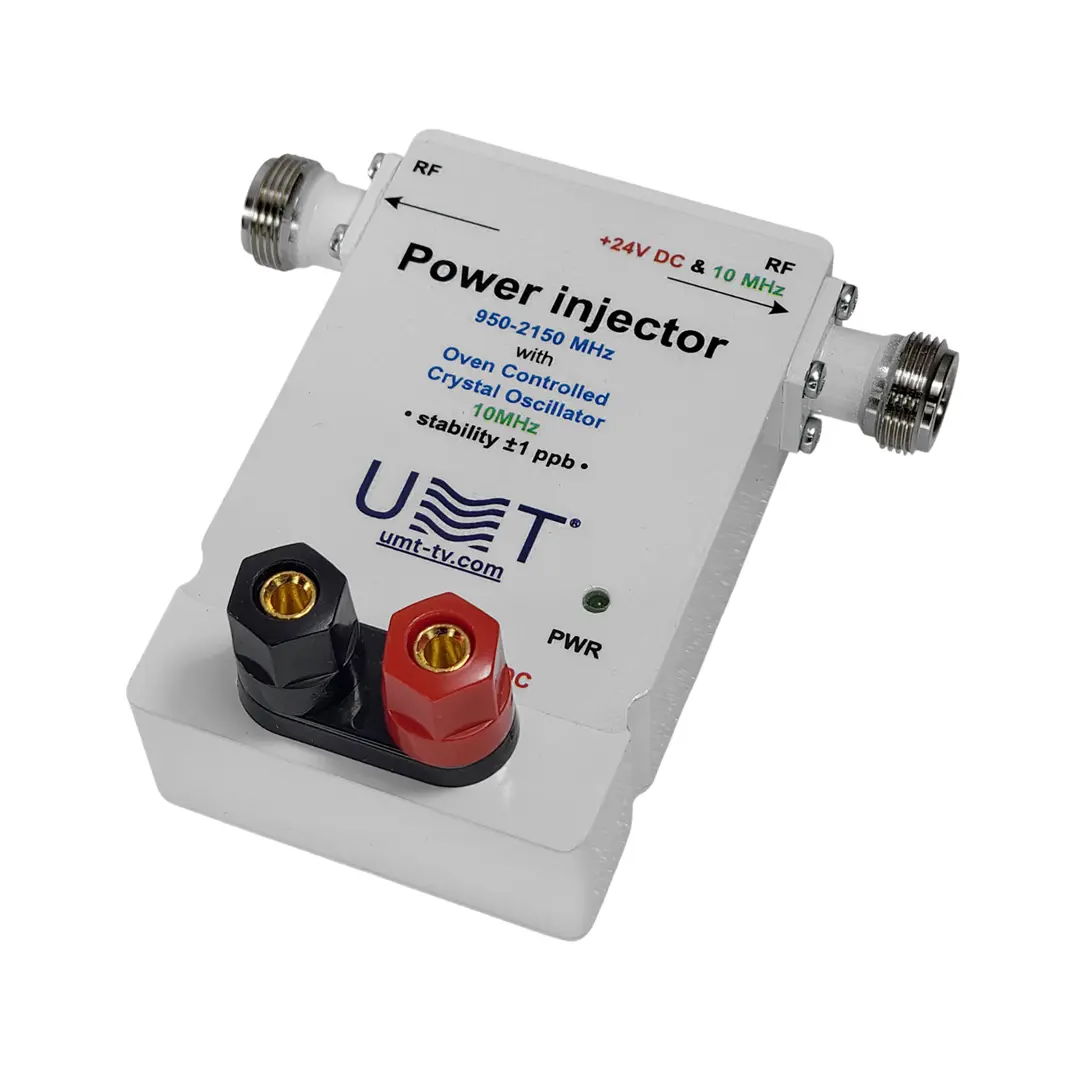

DC injector IDCI with OCXO & 10 MHz

Short description

DC injector IDCI with OCXO and 10MHz reference is two way DC Injector supplies LNB and/or BUC with VDC via radio-frequency cablе from a single power source – Intelligent Power & Reference Signal Injector for Modern BUC Systems

Developed for indoor.

- +
  • Description
  • Downloads

DC injector IDCI with OCXO and 10MHz reference – Intelligent Power & Reference Signal Injector for Modern BUC Systems

DC injector IDCI with OCXO and 10MHz reference is an advanced power and reference signal injector specifically designed for the latest generation of Block Up Converters (BUCs) with output power ratings of 1W, 2W, 4W, 10W, and 20W. It delivers reliable DC power supply and a high-stability 10 MHz reference signal, making it an essential component for satellite communication systems and RF uplink chains.

Equipped with a built-in OCXO (Oven Controlled Crystal Oscillator), this injector ensures reference signal stability of ±1 ppm, enabling high-frequency precision and phase coherence across your transmission system. The integrated IP-based control interface allows real-time monitoring and management of BUC parameters over Ethernet, ensuring smarter infrastructure with remote accessibility.


⚙️ Main Features:

  • 10 MHz Reference

  • OCXO stability (±1 ppm)

  • Supports new-generation BUCs: 1W, 2W, 4W, 10W, 20W

  • Compact, rugged design for professional field deployment
  • Ideal for VSAT hubs, teleports, and broadcast uplinks


🧩 Applications:

  • Satellite uplink stations

  • Teleport & broadcast infrastructure

  • VSAT ground stations

  • RF laboratory and test environments

  • Modern BUC Systems


DC injector IDCI with OCXO and 10MHz reference is engineered for professionals who demand reliability, control, and precision in modern satellite communication setups. Whether you’re operating a commercial uplink station or a mission-critical broadcast network, this injector delivers seamless integration, enhanced visibility, and long-term stability 📈

 Contact us to learn more about integration options or request a quote today.

Parameter Value
Frequency range, MHz 950-2150
Impedance & type of RF connectors, Ohm 50Ω (N-type);
75Ω (F-type) – by order
Supply voltage, VDC (up to) 24
Maximum current, A (total) 4
Insertion loss, dB <1.0 (full band)
Flatness, dB ± 0.5 (full band)   ± 0.2 (any 36MHz)
Return loss, dB 17
Dimensions, mm 97х114х44
Weight, kg 0.32

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
