DC injector IDCI with IP Ctrl

Short description

DC injector IDCI with IP Ctrl is two way DC Injector supplies BUC with VDC via radio-frequency cablе from a single power source.
Via the DC injector IDCI can be controlled BUC parameters by IP.

Developed for indoor using.

indoor
- +

Request for customized equipment Associated Equipment

    • Description
    • Downloads

    DC injector IDCI with IP Ctrl can be used only for new line of BUC with power of 1, 2, 4, 10 and 20 W!

    MAIN FUNCTIONS:

    • BUC connection status;
    • BUC type;
    • BUC serial number;
    • BUC LO frequency;
    • BUC temperature;
    • BUC AGC power;
    • BUC alarm;
    • BUC AGC lock status;
    • BUC input voltage.

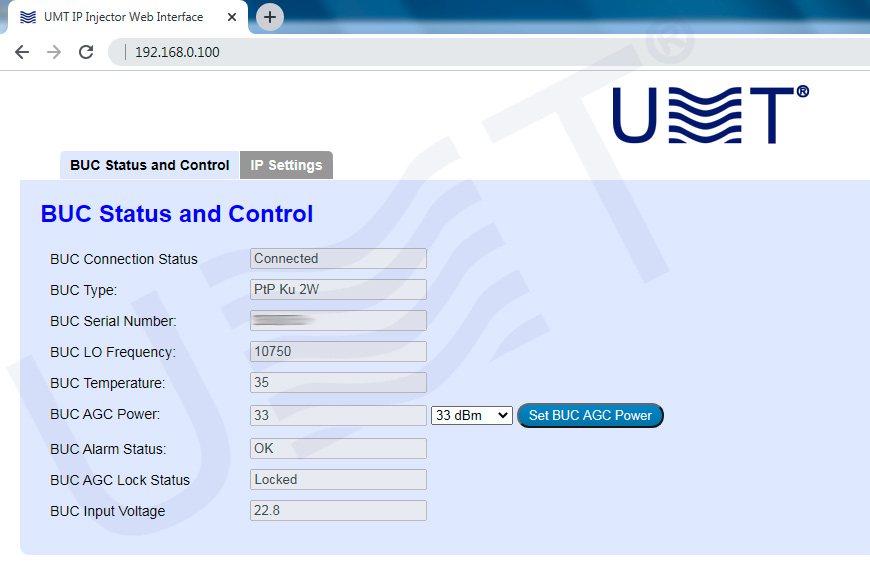

    DC injector IDCI management software
    (control BUC parameters by IP)

    Parameter Value
    Frequency range, MHz 950-2150
    Impedance & type of RF connectors, Ohm 50Ω (N-type)
    Supply voltage, VDC (up to) 24
    Maximum current, A (total) 4
    Insertion loss, dB <1.0 (full band)
    Flatness, dB ± 0.5 (full band)   ± 0.2 (any 36MHz)
    Return loss, dB 17
    Dimensions, mm 115х50х90
    Weight, kg 0.3

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
