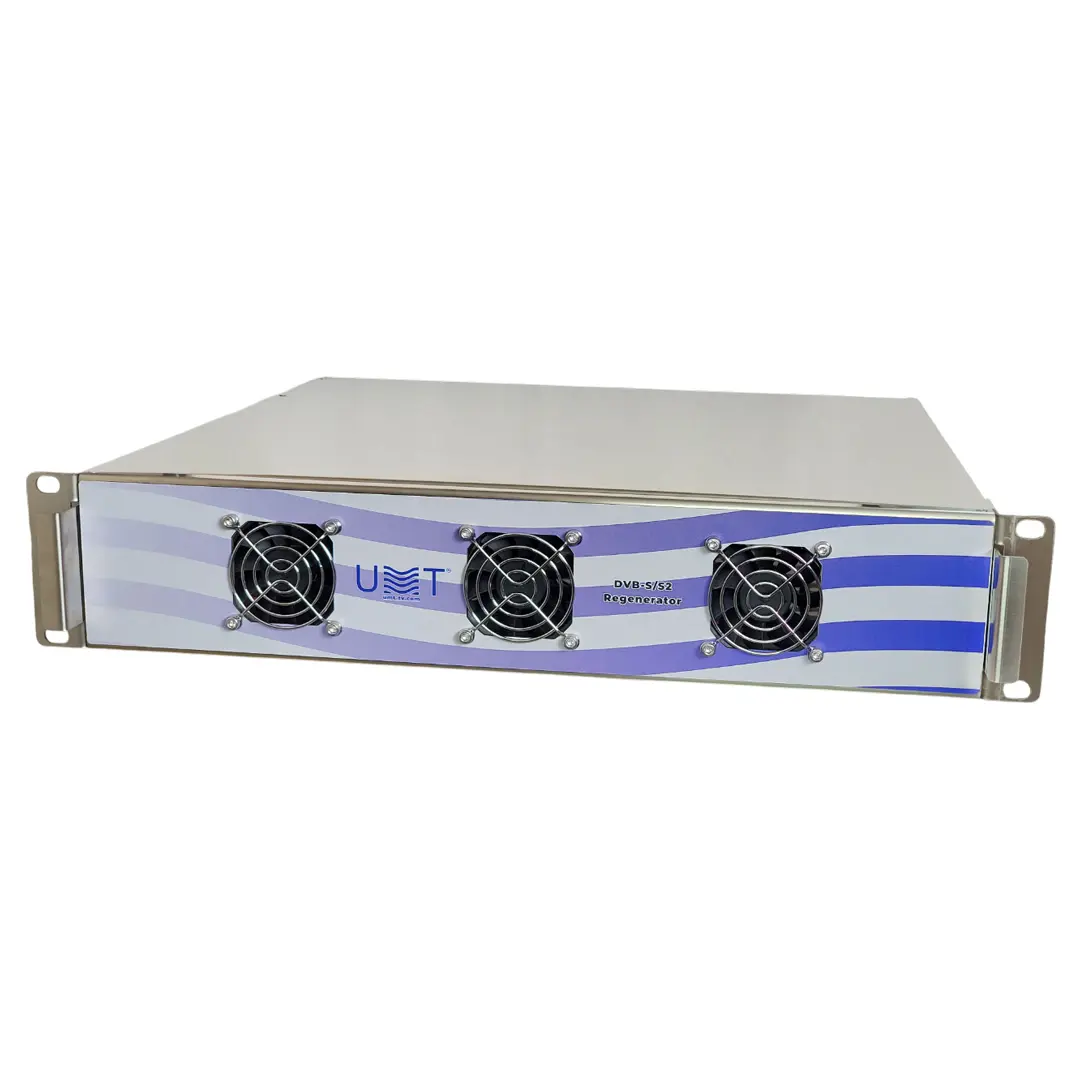

DVB-S-S2 Regenerator v2.0

Short description

DVB-S/S2 Regenerator – Multichannel Signal Recovery Device by UMT LLC

The DVB Regenerator by UMT LLC is a professional-grade multichannel device designed to restore and retransmit noisy or weakened DVB-S/S2 signals. Supporting up to 32 independent regeneration channels, this unit ensures clean signal recovery and consistent output for satellite TV broadcasting, MVDS, and headend systems.

Controlled via Ethernet using UMT’s proprietary VCC software, the regenerator is available with F-type, N-type, or SMA connectors to suit your setup. Designed for high reliability, it features built-in protections against overvoltage, overload, and short circuits. If power is lost, all settings are safely recovered on restart.

DVB-S/S2DVB regenerator
- +

Request for customized equipment HEAD-END

    • Description
    • Downloads

    DVB-S/S2 Regenerator – Professional Multichannel Signal Recovery System by UMT LLC

    The DVB-S/S2 Regenerator developed by UMT LLC is a high-performance, multichannel DVB signal restoration device designed to clean, stabilize, and retransmit DVB-S and DVB-S2 signals for downstream broadcasting and distribution. It is ideal for satellite TV systems, MVDS headends, teleports, and retransmission hubs where signal degradation occurs due to distance, interference, or weak reception.

    This regenerator captures noisy or distorted DVB-S/S2 signals, performs full regeneration (demodulation + remodulation), and outputs a restored and synchronized DVB signal compliant with ETSI standards. It supports from 1 to 32 independent regeneration channels, allowing complete flexibility for small to large systems.

    🔧 Technical Features:

    • Supported Standards: DVB-S, DVB-S2

    • Channels: Configurable from 1 to 32 independent regeneration channels

    • Input/Output Connectors: Available in F-type, N-type, or SMA-type (customizable by order)

    • Remote Control Interface: Ethernet (TCP/IP)

    • Control Software: VCC software by UMT LLC (Windows GUI)

    • Form Factor: Compact 1U/2U rack-mountable chassis

    • Operating Voltage: 12/24V DC or 110–240V AC (depending on version)

    • Cooling: Passive or active (depending on configuration)

    ✅ Key Benefits:

    • Full DVB-S/S2 signal regeneration, not just amplification

    • Ensures error-free rebroadcasting in headend systems

    • Supports MVDS, MITRIS, and custom DVB infrastructures

    • Industrial-grade hardware ensures high MTBF and 24/7 uptime

    • Auto-recovery of saved settings after power failure

    • Integrated protection: over-voltage, overload, and short-circuit

    • Compact design suitable for rack integration in professional setups

    📡 Typical Applications:

    • Regional MVDS broadcasting networks

    • DVB-S2 repeater stations

    • Satellite signal recovery in low-SNR environments

    • Signal quality restoration at uplink and downlink sites

    • Multi-operator headends requiring multi-channel DVB-S/S2 regeneration

    🛠️ Software & Control:

    The device is managed using VCC Software, an intuitive Windows-based control panel developed by UMT LLC. It allows remote configuration, monitoring of signal integrity, channel assignment, input/output levels, and fault diagnostics — all accessible over Ethernet.

    🔒 Reliability and Safety:

    Designed for mission-critical operations, the DVB-S/S2 Regenerator includes embedded hardware-level protections to safeguard the system from electrical faults, surges, and thermal issues. With non-volatile memory, all user settings persist after power interruptions, making it ideal for unattended installations.

    Looking for a reliable way to restore and rebroadcast DVB-S/S2 signals with zero degradation?
    The DVB Regenerator by UMT LLC provides a fully integrated, scalable, and cost-effective solution trusted by broadcasters and telecom operators worldwide.

    📩 Contact us for technical datasheets, integration support, or to place a custom order.

     Video instructions about DVB-S-S2 Regenerator watch here Youtube

    Inputs
    The input level -65 … -25 dBm
    RF Frequency range (DVB-S/S2) 950 MHz-2150 MHz in 1 kHz-steps
    Interface, connector type RF, N-type (F or SMA as option)
    Symbol rate  1 … 45 MSymb/s (QPSK);

    1 … 45 MSymb/s (8PSK);

    1 … 38.7 MSymb/s (16PSK, 1 channel mode),

    1 … 43 MSymb/s (16PSK, 1 channel mode, by request);

    1 … 31 MSymb/s (32PSK, 1 channel mode),

    1 … 34.5 MSymb/s (32PSK, 1 channel mode, by request);

    in steps of 1 KSymb/s
    RF output
    RF out (50Ω) 80-100 dBµV
    Number of inputs, connector type RF output N-type (F or SMA as option)
    Injection Optionaly can provide injection of DC and 10 MHz reference
    RF Frequency range (DVB-S/S2) 950 MHz-2150 MHz in 1 kHz-steps
    Modulation parameters DVB-S mode
    Constellation   QPSK
    Modulation Error Rate (MER)   >27 dB
    FEC  1/2 , 2/3 , 3/4 , 5/6 , 7/8
    Symbolrate   1–45 MSymbol/s
    Bandwidth  defined by symbolrate
    Modulation parameters DVB-S2 mode
    Constellation   QPSK / 8PSK / 16APSK or 32APSK (by request)
    Modulation Error Rate (MER)  >27 dB
    FEC (LDPC)   1/4 , 1/3 , 2/5 , 1/2 , 3/5 , 2/3 , 3/4 , 4/5 , 5/6 , 8/9 , 9/10
    Symbolrate  1 … 45 MSymb/s (QPSK);

    1 … 45 MSymb/s (8PSK);

    1 … 38.7 MSymb/s (16PSK, 1 channel mode),

    1 … 43 MSymb/s (16PSK, 1 channel mode, by request);

    1 … 31 MSymb/s (32PSK, 1 channel mode),

    1 … 34.5 MSymb/s (32PSK, 1 channel mode, by request);

    in steps of 1 KSymb/s
    Roll-Off-Factor   0.2, 0.25, 0.35
    Pilots   on/off
    Bandwidth  defined by symbolrate
    Signals injection
    10 MHz reference  10-6-10-8 stability (optionally)
    Power injection  for the BUC 24V, 3А (optionally)
    Adjustment
    Interface RJ-45, Ethernet
    Power Supply
    Input Voltage  110‐240 VAC, 50/60Hz
    Power Consumption  6W per channel
    Environmental
    Operating Temperature  0℃ to 45℃ (32℉ to 113℉)
    Storage Temperature ‐20℃ to 80℃ (‐4℉ to 176℉)
    Operating Humidity  90%, non‐condensing
    Mechanical
    Dimensions (W x H x D)  1RU: 483mm x 44.5mm x 450mm, 19’’ x 1.73’’ (1RU) x 17.7’’
    2RU: 483mm x 89mm x 450mm, 19’’ x 3.5’’ (2RU) x 17.7’’

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
