Flexible WR75 Ku-band waveguide (50 cm) designed for low-loss RF transmission, reduced VSWR and high mechanical flexibility. Ideal for VSAT terminals, compact satellite antennas and microwave routing.

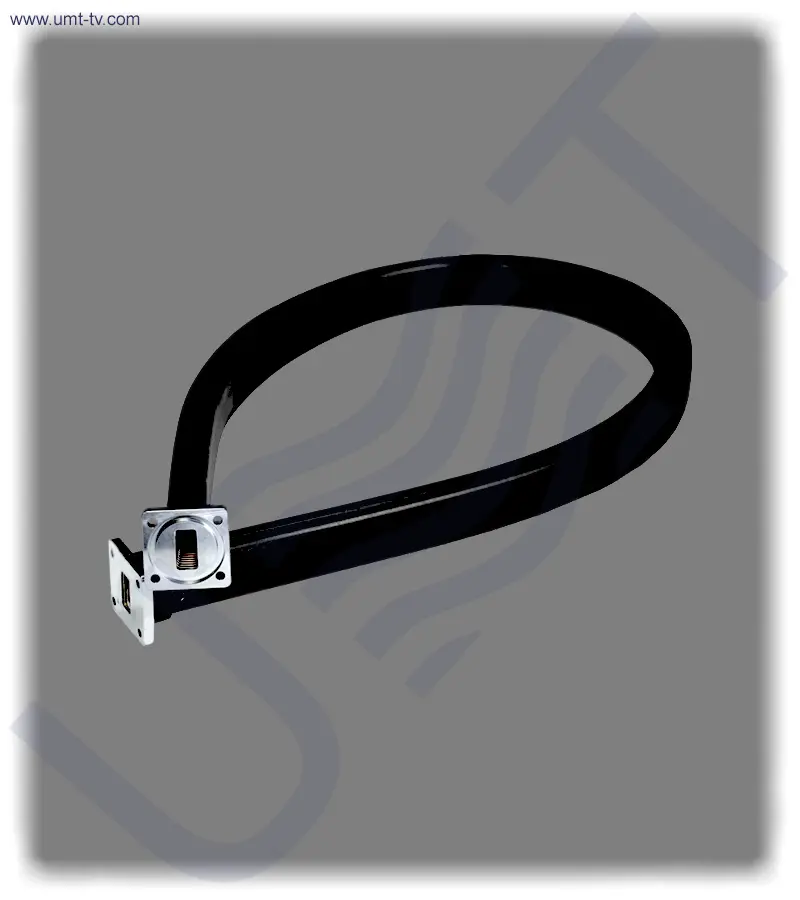

WR75 Ku-band Flexible Waveguide (50 cm) is a high-performance microwave-grade waveguide designed for satellite communication systems, VSAT terminals and compact RF installations requiring bendable and twistable routing. Its flexible construction enables convenient integration into narrow enclosures, offset feed assemblies and mobile antenna platforms while maintaining stable low-loss Ku-band transmission. This waveguide provides reliable electrical performance where rigid sections cannot be used due to mechanical constraints or alignment requirements.
Built for demanding RF environments, the WR75 Ku-band Flexible Waveguide (50 cm) ensures minimal attenuation, stable amplitude-frequency behavior and reduced VSWR across the Ku-band. Its construction supports vibration resistance, environmental sealing and EMI shielding, making it suitable for both fixed and mobile satellite systems. Engineered for precise flange alignment and consistent RF behavior, it maintains a clean transmission path essential for uplinks, downlinks and high-capacity satcom links.
✅ Flexible Ku-band routing with stable RF performance
This WR75 waveguide segment provides reliable microwave transmission even when bent or twisted, making it ideal for compact antenna setups. Its geometry maintains electrical continuity while minimizing losses, supporting consistent operation in satellite RF paths.
✅ Low VSWR and minimal signal degradation
Designed for reduced VSWR and stable impedance, the flexible waveguide ensures clean signal flow and maintains uplink/downlink quality. It supports complex modulation types and provides excellent performance in broadband Ku-band systems.
✅ Compact 50 cm flexible design for tight installations
At only 0.5 meters, the waveguide is optimized for satellite terminals, mobile platforms and systems where rigid waveguides cannot be installed. Despite its flexibility, it maintains structural and electrical reliability under operational stress.
🛠️ The WR75 Ku-band Flexible Waveguide (50 cm) is engineered for high-frequency satellite integration and provides stable performance across the Ku-band spectrum, maintaining minimal attenuation and consistent AF response in directional and omni antenna systems. It is suitable for feed assemblies, RF modules and satcom front ends requiring adaptable mechanical routing.
🛒 The WR75 Ku-band Flexible Waveguide (50 cm) is a reliable choice for VSAT systems, broadcast uplinks and teleports. Engineers choose it for durability, EMI shielding and dependable RF characteristics during mechanical movement. Its compact size and stable electrical parameters enhance the performance of modern satellite communication networks.
📌 Key features
-
Flexible WR75 Ku-band waveguide with low-loss characteristics
This 50 cm WR75 waveguide provides minimal attenuation even during bends, ensuring efficient microwave transmission in satellite RF chains. Its flexible structure allows routing in confined antenna assemblies without compromising RF performance.
-
Reduced VSWR for clean high-frequency signal flow
The waveguide’s precision-matched flanges and internal geometry minimize return loss, supporting stable high-frequency operation. This ensures smooth integration with feedhorns, BUCs, LNBs and other Ku-band satellite hardware.
-
High mechanical flexibility for compact antenna systems
Designed for tight enclosures and mobile platforms, this waveguide maintains consistent electrical characteristics while being mechanically bendable. Engineers can route RF paths efficiently in systems with limited installation space.
-
EMI-shielded build for interference-free operation
The waveguide provides electromagnetic shielding that reduces interference and preserves signal purity. This enhances performance in dense RF environments such as teleports, satellite hubs and mobile broadcast systems.
-
Durable construction suitable for outdoor satcom deployments
Built for vibration resistance and environmental stability, the flexible waveguide delivers reliable long-term performance. It is suitable for field-deployable terminals, mobile command units and outdoor communication platforms.
⚙️ Main functions
-
Flexible RF signal transmission in Ku-band satellite systems
The waveguide ensures low-loss microwave propagation even when installed in bent or twisted configurations. This allows stable uplink/downlink communication where rigid waveguides cannot be used due to mechanical or geometric constraints.
-
Impedance-stable transition for feedhorns and RF modules
Its precision flanges and controlled interior geometry maintain consistent impedance, reducing VSWR and preventing distortion of broadband Ku-band signals. This function is essential for maintaining link reliability in satellite terminals.
-
Mechanical adaptation for compact and mobile RF assemblies
The flexible structure supports installation in narrow or moving platforms while preserving electrical performance. This makes it ideal for compact antennas, transportable VSATs and systems subjected to vibration or movement.
-
Interference-reduced microwave routing for protected RF links
The EMI-shielded design reduces external electromagnetic impact, maintaining clean signal propagation. This is important for professional satcom networks requiring high signal integrity.
🧩 Applications
-
VSAT terminals and compact Ku-band antenna systems
Ideal for installations where rigid waveguides cannot fit, enabling flexible routing with stable RF performance. It ensures high-quality signal transmission in small or mobile satellite terminals.
-
Parabolic reflector antennas and feed assemblies
Provides adaptable waveguide routing between feedhorns, converters and RF modules while preserving low-loss characteristics. It enables precise feed alignment in offset and axial systems.
-
Broadcast uplinks, teleports and satellite hubs
Used in professional satcom infrastructures requiring stable high-frequency routing with reliable EMI protection. It ensures clean signal paths for high-capacity broadcast and communication channels.
-
Mobile, transportable and field-deployable RF systems
Perfect for flyaway terminals, on-vehicle systems and tactical communication units where vibration resistance and flexibility are essential. It maintains consistent RF behavior even during movement.
