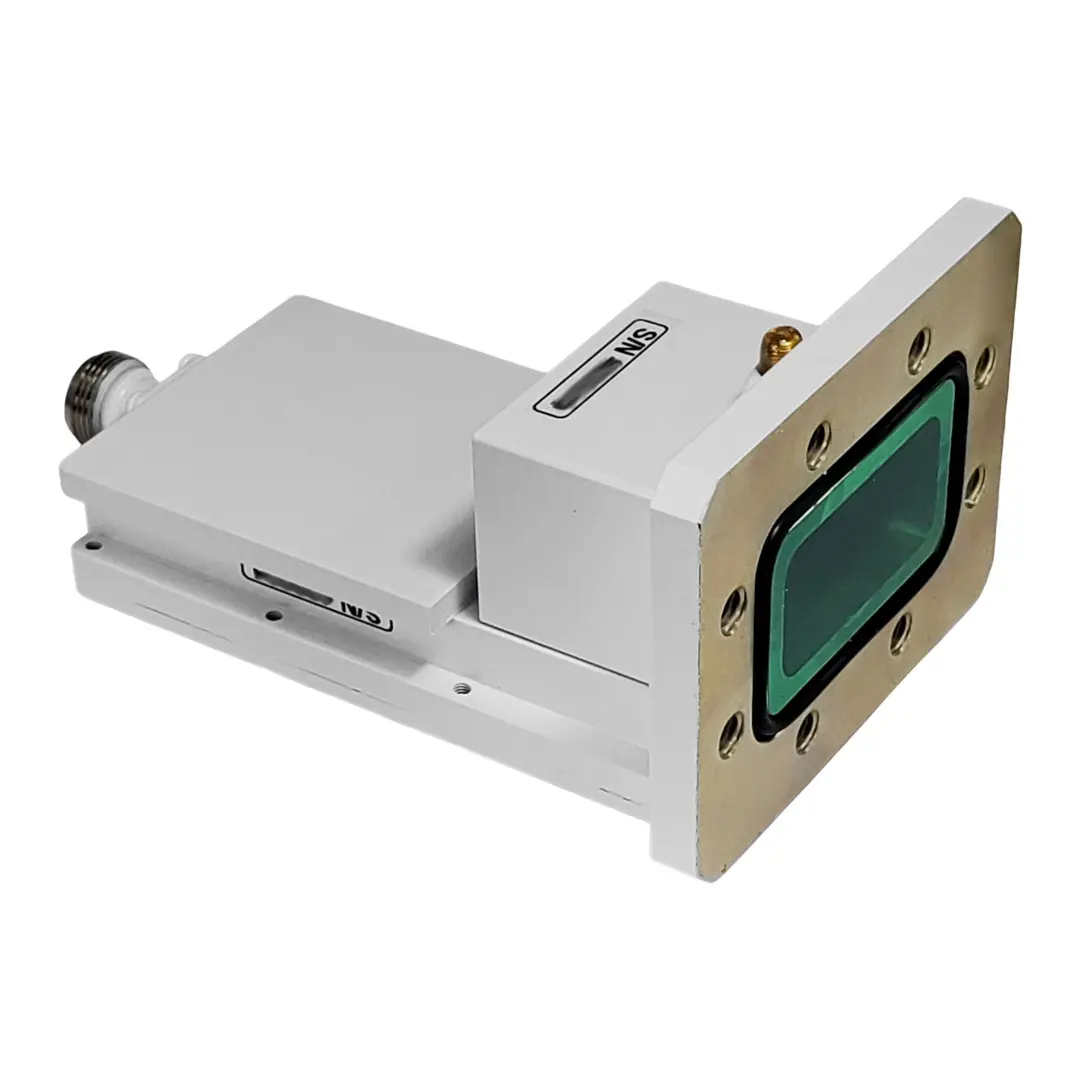

LNB-CPL38 with AGC

Short description

C-band LNB-CPL38 is Low Noise Block Down Converter with single LO Frequency 3.8 GHz and Automatic Gain Control, Input Frequency Range 4.75 – 5.3 GHz, Output Frequency Range 0.95 – 1.5 GHz, Gain 50 dB, Connector i/o N-type (female),WR-159/N,SMA

- +
  • Description
  • Downloads

C-band LNB-CPL38 from UMT LLC – High-Performance Low Noise Block Down Converter for Satellite Communication and Broadcasting Systems

The C-band LNB-CPL38 is a high-quality Low Noise Block Down Converter (LNB) designed to receive RF signals in the C-band frequency range (4.75 – 5.3 GHz) and downconvert them to L-band intermediate frequencies (0.95 – 1.5 GHz). This model features a single local oscillator (LO) at 3.8 GHz, ensuring high frequency stability and reliable signal processing for satellite communications, MVDS/MITRIS broadcasting systems, and professional RF transmission setups.

Engineered for outdoor installations, the C-band LNB-CPL38 is housed in a durable, waterproof enclosure, making it ideal for use in harsh weather environments. It can be mounted in close proximity to receiving antennas for minimal signal loss. The input flange is WR-159 and the output interface is N-type female (also available with SMA on request), ensuring broad compatibility with industry-standard RF components.

This LNB is optimized for digital satellite TV systems, DVB-S/DVB-S2, and DVB-C transmission standards, and supports up to 25 carriers, making it suitable for multi-channel broadcast applications and high-density headend deployments.


🔧 Technical Specifications:

  • Model: C-band LNB-CPL38

  • Input Frequency Range: 4.75 – 5.3 GHz

  • Output Frequency Range: 0.95 – 1.5 GHz

  • LO Frequency: 3.8 GHz

  • Gain: 50 dB

  • Automatic Gain Control (in-built)

  • Connector Type: N-type (female)

  • Input Flange: WR-159

  • Oscillator Type: PLL

  • Max Number of Carriers: 25

  • Enclosure: Weatherproof, suitable for outdoor use


Key Features:

  • Stable PLL-based LO at 3.8 GHz for reliable downconversion

  • Wide input frequency range supports various satellite and terrestrial C-band signals

  • Compatible with RRL and standard receive antennas

  • High gain and low noise figure for improved signal quality

  • Ideal for use in MVDS, MITRIS, and DVB broadcast systems

  • Supports multi-carrier operations (up to 25 carriers)

  • Robust, waterproof construction for long-term outdoor deployment


🌍 Applications:

  • C-band satellite reception

  • DVB-S/S2 and DVB-C broadcast systems

  • MVDS / MITRIS headend installations

  • Professional RF signal transport systems

  • Wireless telecom backhaul links using C-band


🤝 For reliable C-band LNB performance with professional-grade specifications, C-band LNB-CPL38 is a trusted choice for engineers and system integrators working in modern satellite communication and digital TV distribution. Order now or contact us for integration support and custom solutions.

Input parameters
 Input Frequency 4.75 – 5.3 GHz
 Waveguide interface WR-159
 Connector (by order)  N-type (female)
 Input VSWR  2.5:1
 Impedance  50 Ohm
Output parameters
 Output Frequency  950 … 1500 MHz
 Output VSWR  2.2:1
 Output Interface  N-type / SMA (female)
 Impedance  50 Ohm
Local frequency
 LO frequency  5.15 GHz
 LO instability  ± 2 to ± 50 kHz  (room temp.)
± 10 to ± 100 kHz  (over room temp.)
 LO Phase noise:
@1kHz  -65dBc/Hz
@10kHz  -80dBc/Hz
@100kHz  -95dBc/Hz
@1MHz  -110dBc/Hz
Characteristics
 Gain  58 dB
 Flatness  ± 2 dB   @ full band
 Ripple  ± 0.75 dB   @ 30 MHz
 Variation  ± 2 dB max
 Noise figure  30K max
 P1dB  +3 dBm
 Image rejection  45 dB min
Power Supply
 Input voltage  +12 V … + 24 V DC
 Required current  300 mA max
Environmental
 Operating temperature  -30℃ to +60℃
 Storage temperature  -40℃ to +80℃
 Operating humidity  0% – 95% RH
Mechanical
 Dimensions (W x H x D)  81x62x135 mm
 Weight  0.520 kg

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
