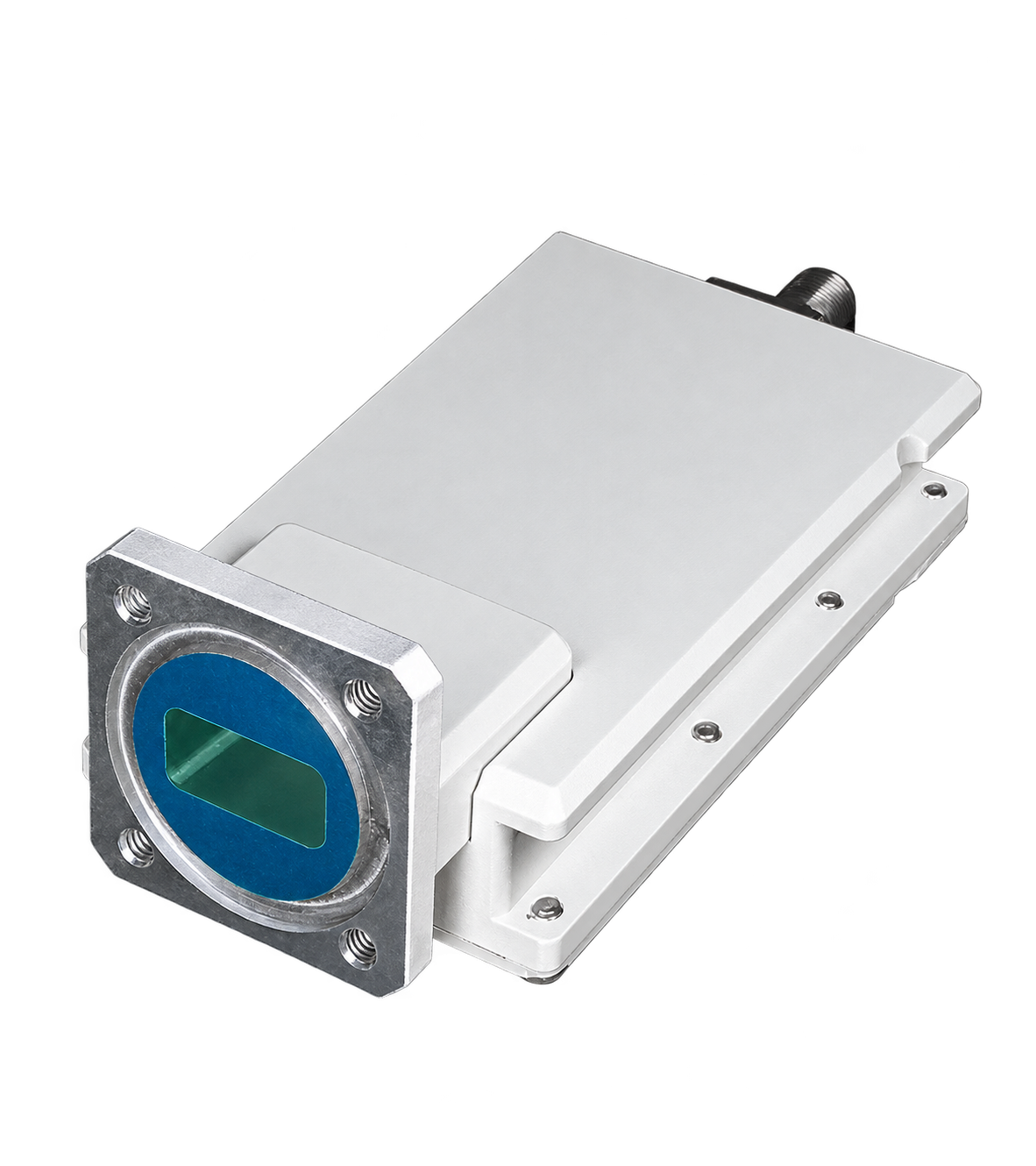

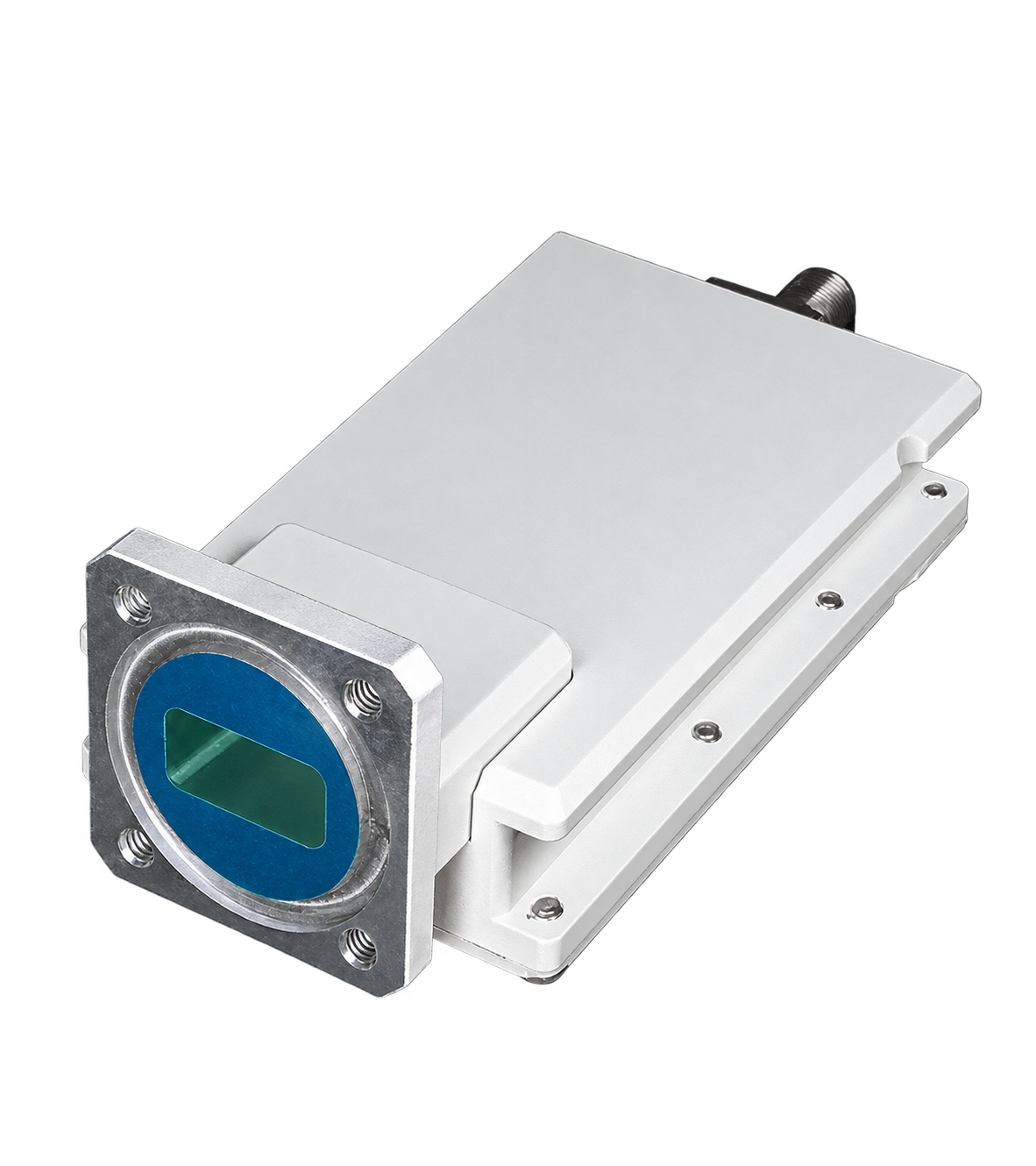

LNB PLL LO 10.75 is Low Noise Block Down Converter which is designed for RF signals gaining and transforming from Ku-band to L-band (intermediate frequencies). The LNB PLL LO 10.75 has a waterproof case. LNB PLL LO 10.75 can be mounted in close proximity to antenna. LNB parameters correspond to MVDS / MITRIS TV broadcasting systems conditions in accordance with DVB-S/S2 or DVB-C standard and can be operated up to 25 carriers. LNB PLL LO 10.75 has input flange of PBR120 type and can be used with regular RRL or receive antennas.
The Ku-band LNB PLL LO 10.75 is a professional-grade Low Noise Block Downconverter designed for satellite reception and broadcast headend integration. Operating with an input frequency range of 11.70-12.70 GHz and downconverting to 950-1950 MHz IF, this Ku-band PLL LNB ensures stable, low-noise performance for DVB-S/S2 and DVB-C broadcasting systems.
Equipped with a stable 10.75 GHz PLL local oscillator, the LNB PLL LO 10.75 offers excellent frequency stability, low phase noise and linearity for advanced modulation formats, including 32APSK and 256QAM. Supporting up to 25 carriers, this model is optimized for MVDS and MITRIS TV distribution networks, CATV headends and telecom downlinks.

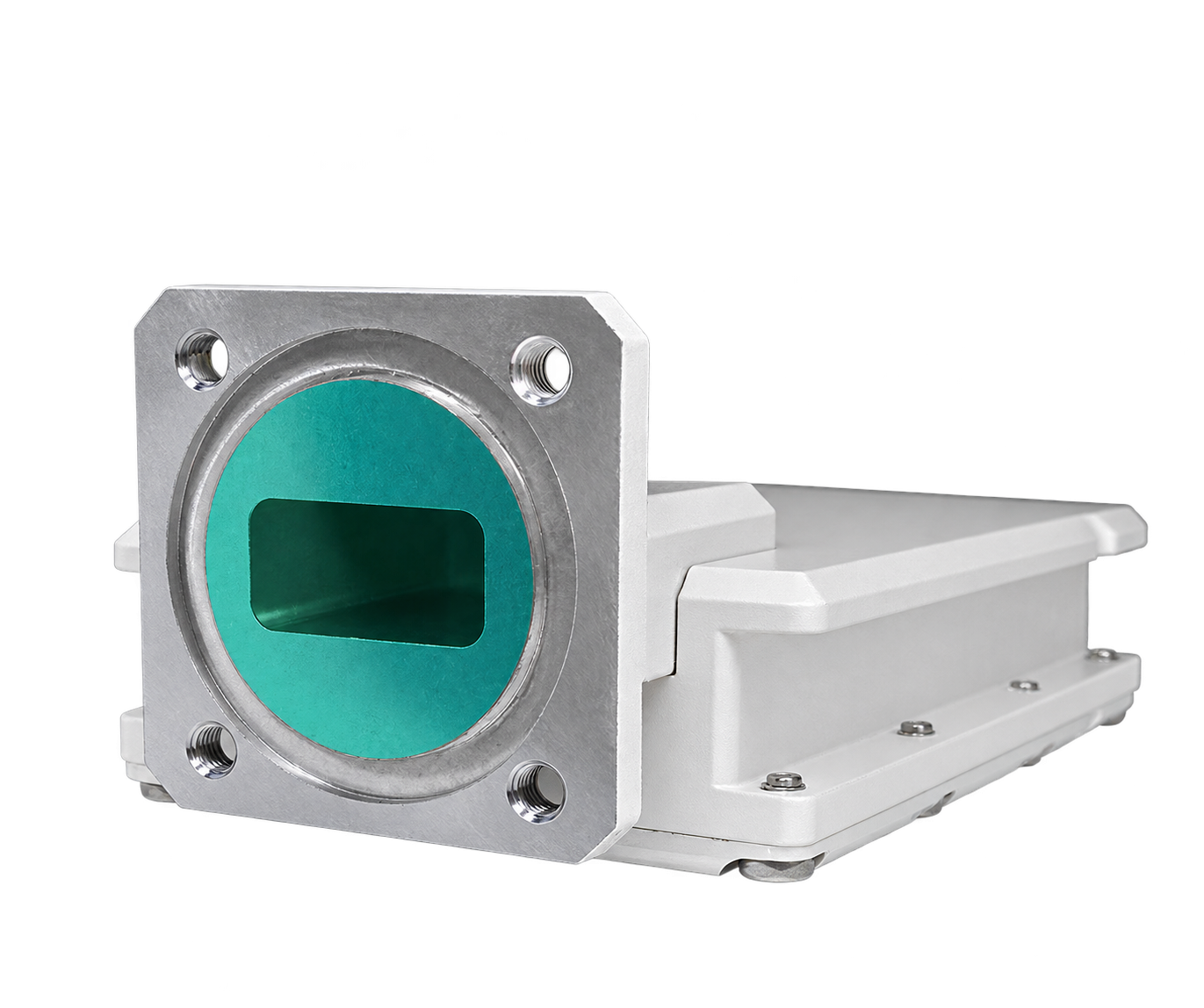

The Ku-band PLL LNB 10.75 provides ≥45 dB gain, ≤0.9 dB noise figure and ≥45 dBc image rejection, ensuring clean and reliable satellite signal reception. With its WR75 waveguide, PBR120 flange input and F-type 75 Ohm output, it integrates seamlessly into professional infrastructures.
✅ High-Performance Ku-band PLL LNB 10.75 for Professional Systems
The Ku-band PLL LNB 10.75 provides ≥45 dB gain, ≤0.9 dB noise figure and ≥45 dBc image rejection, ensuring clean and reliable satellite signal reception. With its WR75 waveguide, PBR120 flange input and F-type 75 Ohm output, it integrates seamlessly into professional infrastructures.
✅ Engineered for outdoor deployment
The rugged, waterproof housing ensures long-term durability in harsh climates, wide humidity ranges and extreme temperatures from -30 °C to +60 °C.
✅ Multi-standard compatibility
The Ku-band LNB PLL LO 10.75 supports DVB-S, DVB-S2 and DVB-C reception, making it ideal for broadcast, telecom and satellite IoT applications.
🛠️ Whether you need a Ku-band PLL LNB with 10.75 GHz single output, a professional Ku-band LNB with 0.9 dB noise figure, or a rugged outdoor Low Noise Block Downconverter with WR75 PBR120 flange for MVDS and DVB-S/S2 broadcasting, the LNB PLL LO 10.75 is engineered for precision, efficiency and reliable performance.
🛒 The Ku-band PLL LNB 10.75 is available to order now – ready for integration into DVB-S/S2/C and MVDS/MITRIS broadcasting networks.
📌 Key Features
-
Ku-band PLL LNB 10.75 with 10.75 GHz single output for precise satellite reception
The LNB PLL LO 10.75 ensures frequency stability with its PLL oscillator, delivering clean downconversion for DVB-S/S2 and DVB-C broadcasting systems.
-
High-gain Ku-band LNB PLL LO 10.75 with 45 dB amplification and flat response
This professional LNB provides ≥45 dB gain with ±2 dB flatness across the full Ku-band, ensuring stable reception in CATV, telecom and broadcast networks.
-
Ku-band LNB PLL LO 10.75 with ultra-low noise figure ≤0.9 dB
By minimizing noise figure, this LNB improves carrier-to-noise ratio, enabling professional-grade performance in MVDS and MITRIS distribution systems.
-
Ku-band LNB PLL LO 10.75 with 950-1950 MHz IF output frequency
The wide L-band output ensures compatibility with DVB headends, satellite receivers and multi-carrier broadcast environments.
-
Ku-band Low Noise Block Downconverter WR75 PBR120 with F-type output

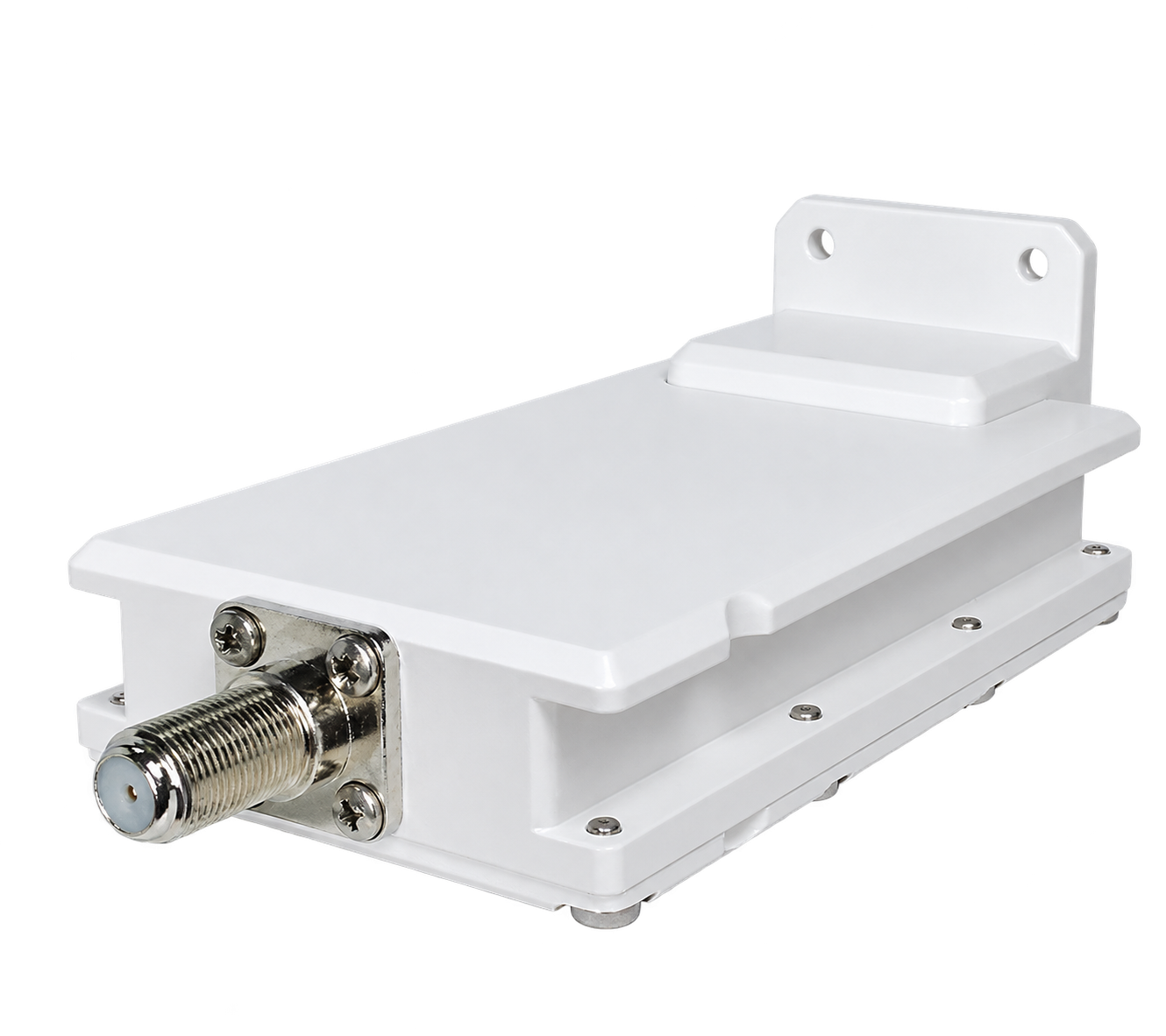

Designed with WR75 waveguide and PBR120 flange input, plus 75 Ohm F-type connector, the LNB integrates seamlessly with professional infrastructures.
-
Professional Ku-band PLL LNB 10.75 with high image rejection ≥45 dBc
Engineered for clean, distortion-free operation, this LNB guarantees superior reception quality in challenging RF conditions.
-

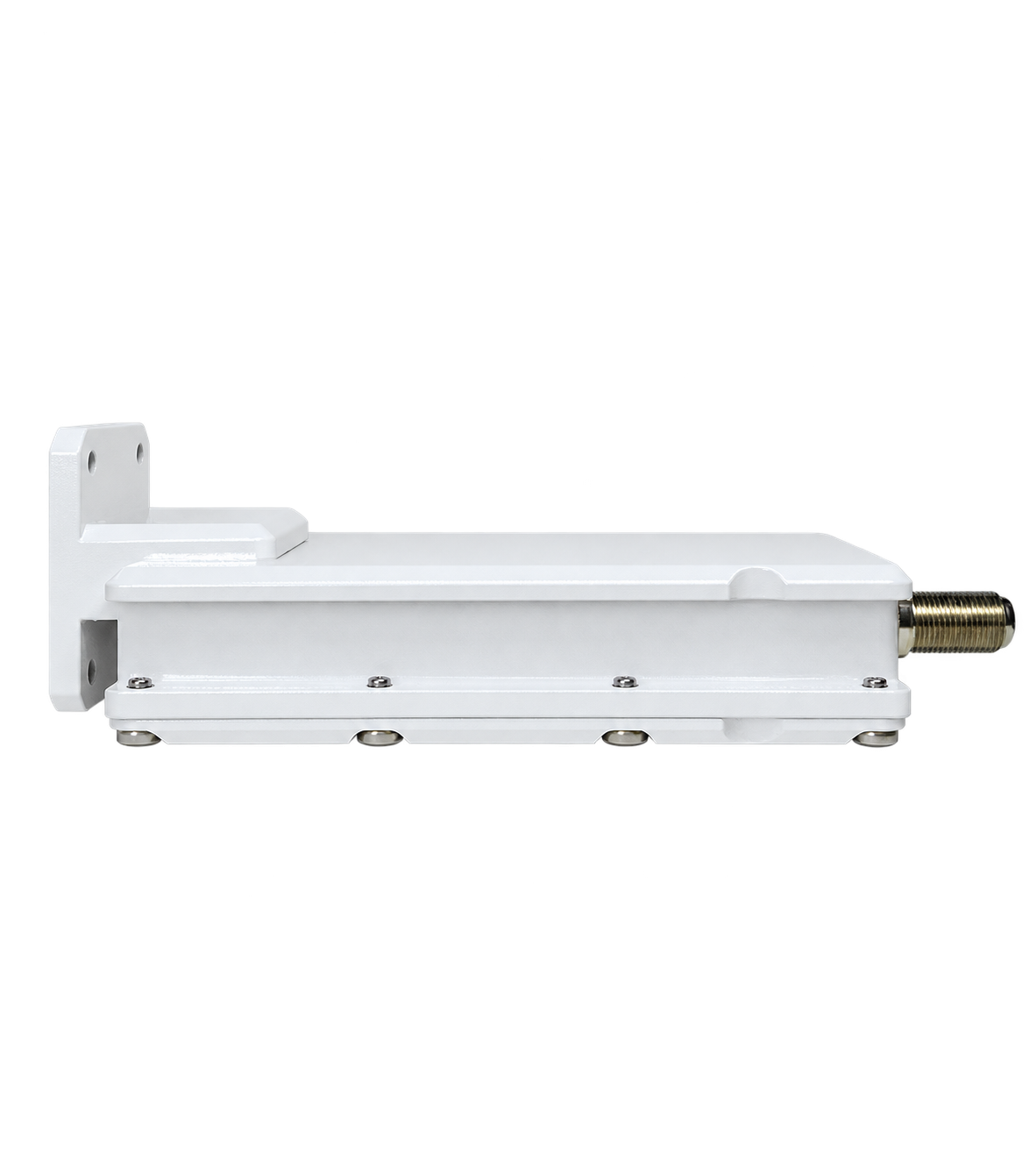

Rugged outdoor-ready Ku-band PLL LNB 10.75 with waterproof enclosure
The compact, lightweight housing ensures reliable long-term operation in extreme climates and remote installations.
-
Multi-carrier Ku-band PLL LNB 10.75 supporting up to 25 carriers
This receiver supports high-density, multi-channel environments, making it ideal for CATV headends, satellite gateways and DVB networks.
⚙️ Main Functions
-
RF downconversion from 11.70-12.70 GHz Ku-band to 950-1950 MHz IF output
The Ku-band LNB PLL LO 10.75 converts satellite signals into L-band frequencies for seamless integration with DVB-S/S2 and CATV systems.
-
PLL oscillator at 10.75 GHz with stable low phase noise
This Ku-band PLL LNB provides long-term frequency stability and low phase noise, ensuring professional operation for DVB and telecom systems.
-
Integrated amplification and filtering with ≤0.75 dB ripple across 27 MHz
The LNB PLL LO 10.75 guarantees clean spectrum performance with flat response and minimal spurious emissions for superior reception quality.
-
Compatibility with DVB-S, DVB-S2 and DVB-C broadcasting standards
Engineered for digital distribution, the LNB integrates with CATV headends, rebroadcast systems and satellite telecom gateways.
-
Durable Ku-band LNB PLL LO 10.75 with 12-24 V DC power supply
Built for real-world conditions, the device operates reliably with wide input voltage, compact size and low power consumption.
-
Outdoor-ready Ku-band PLL LNB 10.75 with waterproof housing
Designed for -30 °C to +60 °C environments, the enclosure protects the LNB from harsh weather, humidity and mechanical stress.
🧩 Applications
-
Professional Ku-band LNB PLL LO 10.75 for DVB-S/S2 broadcasting
Designed for stable satellite downlink reception, this LNB ensures clean signal quality for digital video distribution.
-
MVDS and MITRIS TV distribution with Ku-band PLL LNB 10.75
Optimized for rebroadcast networks, this model supports multi-carrier performance for high-quality terrestrial retransmission.
-
CATV headend integration with high-gain Ku-band LNB PLL LO 10.75
Engineered for multi-channel reception, the LNB provides stable IF output, making it reliable for CATV infrastructures.
-
Satellite TV and telecom downlinks using Ku-band LNB PLL LO 10.75
With high image rejection and low noise figure, the LNB ensures precise signal transport for telecom and broadcast links.
-
Rugged outdoor Ku-band PLL LNB 10.75 for harsh environments
Its waterproof, lightweight housing makes it suitable for remote uplink stations, maritime systems and extreme-weather installations.
-
Compact Ku-band LNB PLL LO 10.75 for OEM and system integrators
With flexible output options and low power consumption, the LNB is ideal for modular designs, integrated cabinets and custom systems.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the LNB PLL LO 10.75, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment. LNB PLL LO 10.75 is available to customize its parameters by order.
