OHPSA-KuH2

  • Description
  • Downloads

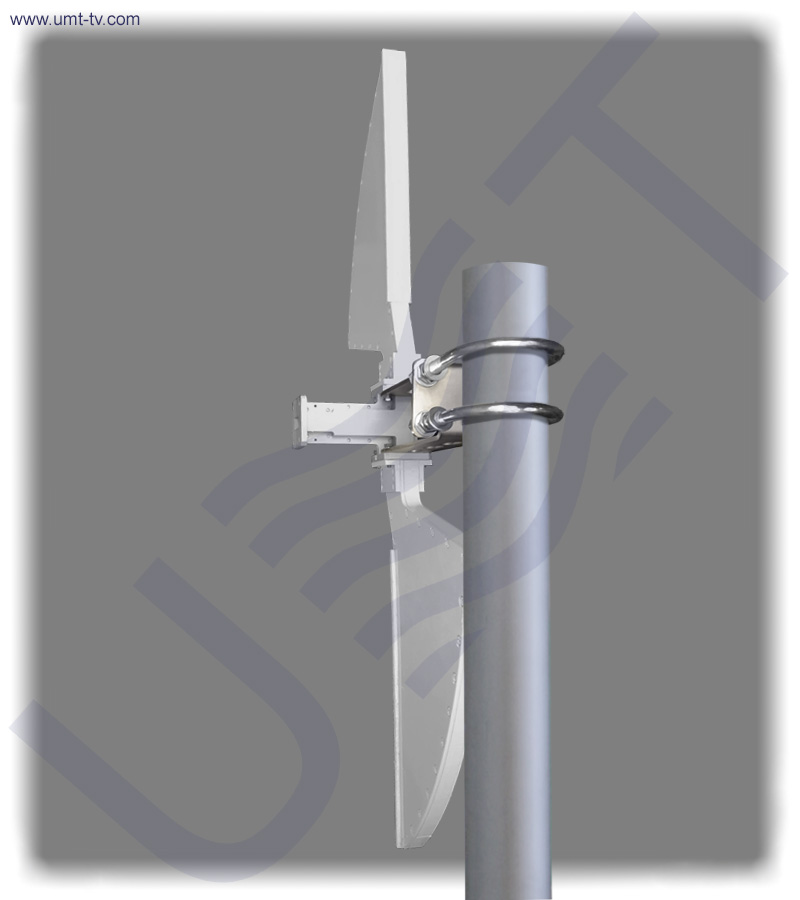

OHPSA-KuH2 is Ku-band omni horn parabolic antenna designed for MVDS / MMDS broadcasting systems. OHPSA-KuH2 has 360 deg radiation pattern, high gain of 13dBi and wide frequency range of 10 - 15 GHz. OHPSA-KuH2 has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by OHPSA-KuH2 can be received by typical Ku-band satellite dish and LNB.

Key features:

  • Omnidirectional: 360-degree radiation pattern
  • Frequency range of 10-15 GHz
  • High gain: 13 dBi
  • Full Ku-band covering
  • Light weight
  • Compact size

Main functions:

  • Transmission of Ku-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

Radiation patter of OHPSA-KuH2 antenna

ParameterValue
Frequency range, GHz 10.0-15.0
Gain, dBi, at least 13
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization Linear: horizontal, vertical (by order)
Cross-polarization, dB, not less 25
HPBW:
@horizontal 360°
@vertical
Input power (max), W 20
Waveguide WR-75 flange
Operating temperature, °C -40 ... +80
Humidity 100% @ 25°C
Dimensions, mm operating mode: 660x340x130
transport mode: 350x230x90
Weight, kg 2.3
Mount Mounting on a vertical pipe with a diameter of 45 mm
Casing material dust/moisture proof
