UMT presents new PLL LNB with AGC L.O. 10.6.
It is professional LNB which has the following advantages comparing with old one: wide dynamic range – up to 50 dB (biggest among any other LNB). AGC range: 25 dB, LO instability: 50 kHz, Gain (min): 40 dB.
PLL LNB with AGC L.O. 10.6 is professional low noise block down converter with automatic gain control designed for MVDS / MITRIS TV broadcasting systems (links and repeaters) application in which the signal stability is very important. In addition, PLL LNB with AGC has wide dynamic range (power at the input) which is the biggest among other LNBs.

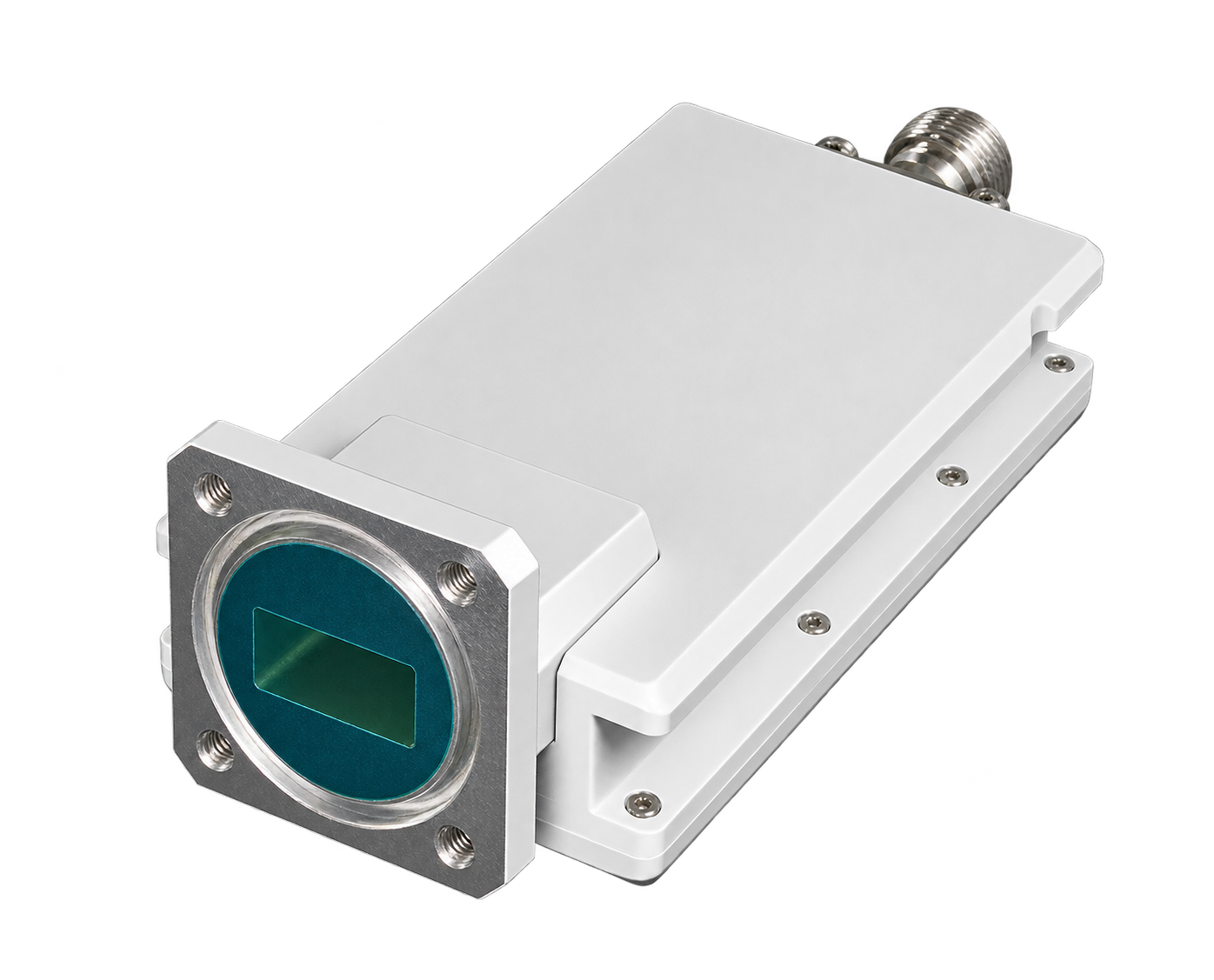

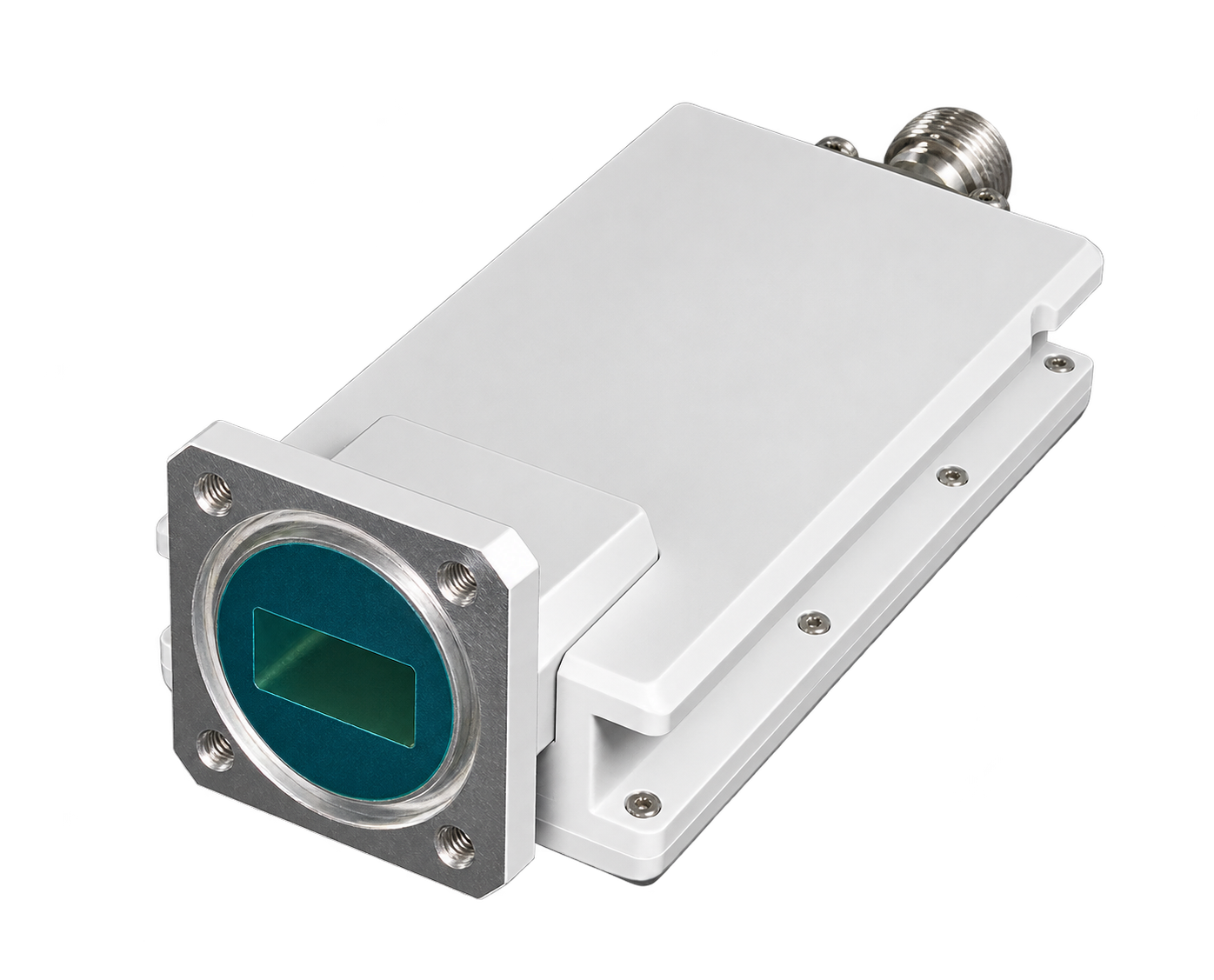

The Ku-band PLL LNB with AGC LO 10.6 is a professional Low Noise Block Downconverter engineered for broadcast and telecom networks. With an input frequency range of 11.55-12.35 GHz and output of 950-1750 MHz, it ensures stable downconversion and reliable signal quality for DVB-S/S2 and DVB-C reception.
This AGC-enabled Ku-band LNB provides a wide dynamic range of up to 50 dB and a 25 dB AGC range, offering unmatched stability in varying input conditions. Its PLL oscillator with ±100 kHz stability and excellent low phase noise guarantees precise signal processing for advanced modulation formats. With rugged 0.25 kg housing, it is optimized for outdoor use in MVDS, MITRIS, CATV and telecom applications.
The Ku-band AGC LNB LO 10.6 offers ≥40 dB gain, ≤5 dB noise figure and ≥60 dBc image rejection. With WR75 waveguide and PBR120 flange input, plus F-type/N-type outputs, it integrates smoothly into satellite broadcasting and telecom infrastructures.
✅ High-Performance Ku-band PLL LNB with AGC for Professional Systems
The Ku-band AGC LNB LO 10.6 offers ≥40 dB gain, ≤5 dB noise figure and ≥60 dBc image rejection. With WR75 waveguide and PBR120 flange input, plus F-type/N-type outputs, it integrates smoothly into satellite broadcasting and telecom infrastructures.
✅ Engineered for outdoor deployment
Its compact waterproof housing ensures reliable performance in harsh climates, operating efficiently between -40 °C and +60 °C with ≤5 W power consumption.
✅ Multi-standard compatibility
Supports DVB-S, DVB-S2 and DVB-C, making it suitable for professional broadcast networks, rebroadcast stations and telecom uplinks.
🛠️ Whether you need a Ku-band PLL LNB with AGC LO 10.6, a professional low-noise AGC LNB with 25 dB control range, or a rugged outdoor solution with WR75 PBR120 flange, this model ensures precision, efficiency and reliable operation.
🛒 The Ku-band PLL LNB with AGC LO 10.6 is available now – ready for deployment in DVB-S/S2/C, MVDS and MITRIS systems.
📌 Key Features
-
Ku-band PLL LNB with AGC and 50 dB wide dynamic range
Handles large variations in input signal power, delivering unmatched stability for professional satellite reception.
-
Automatic Gain Control with 25 dB range
Ensures constant output signal, protecting downstream equipment and enhancing overall reliability.
-
PLL oscillator LO 10.6 GHz with ±100 kHz stability
Provides highly accurate frequency downconversion with low phase noise, supporting advanced digital broadcasting.
-

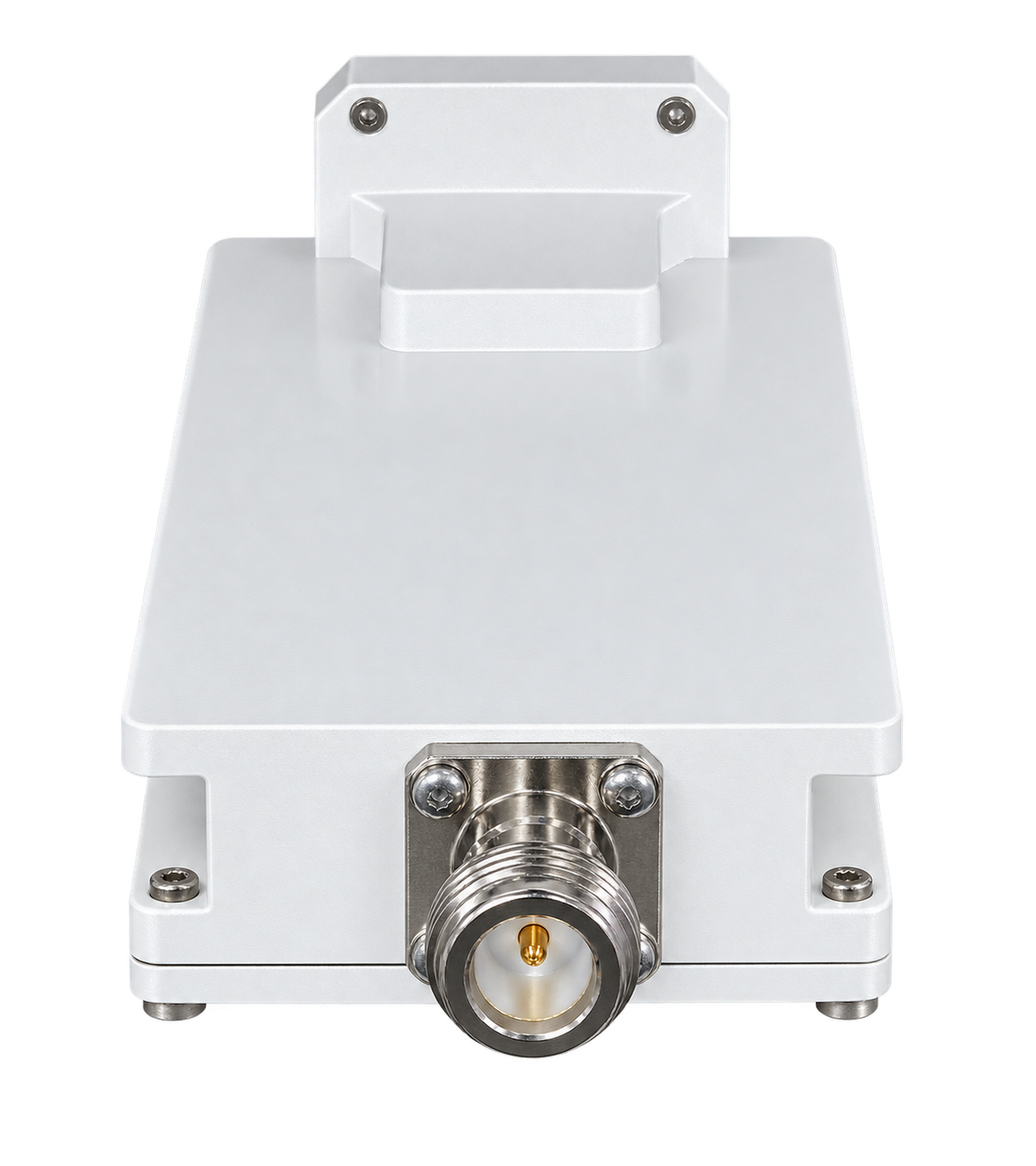

Output frequency range 950-1750 MHz with F-type/N-type connectors
Flexible output options for integration into 50 Ohm and 75 Ohm systems.
-

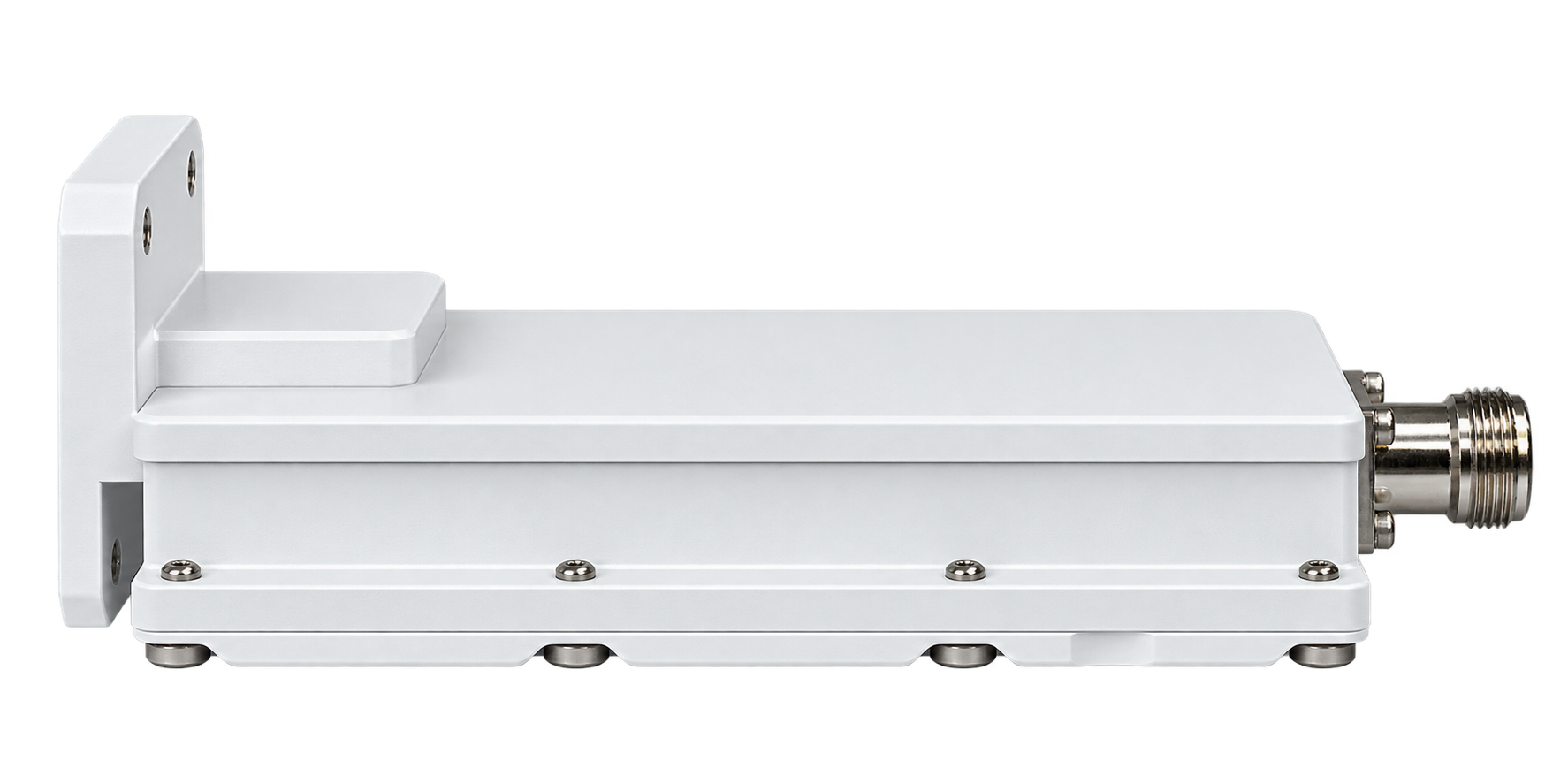

WR75 waveguide with PBR120 flange input
Standardized, professional-grade connection for seamless satellite and telecom setups.
-
Gain ≥40 dB with flat response and ≤0.5 dB ripple over 27 MHz
Maintains smooth, clean amplification and optimal spectral performance.
-
Professional Ku-band AGC LNB with ≤5 dB noise figure
Improves carrier-to-noise ratio, ensuring reliable reception in broadcast and telecom applications.
-
Compact, outdoor-ready 0.25 kg housing
Lightweight waterproof design suitable for rooftop, maritime and mobile broadcasting environments.
⚙️ Main Functions
-
Downconversion from Ku-band (11.55-12.35 GHz) to 950-1750 MHz IF
Converts satellite RF signals into L-band frequencies for integration into DVB-S/S2/C networks.
-
AGC-based automatic output control
Automatically stabilizes output power across varying input levels, extending system reliability.
-
Stable operation with PLL LO 10.6 GHz and low phase noise
Maintains precise frequency and low distortion, ideal for professional broadcasting and telecom.
-
Integrated amplification and filtering with low spurious emissions
Delivers distortion-free, clean signals for robust broadcast infrastructures.
-
Seamless compatibility with DVB-S, DVB-S2 and DVB-C standards
Optimized for use in modern digital broadcast and rebroadcast systems.
-
Durable Ku-band AGC LNB with 15-30 V DC power supply
Efficient low-power consumption (≤5 W) supports long-term outdoor operation.
🧩 Applications
-
Professional Ku-band PLL AGC LNB for DVB-S/S2 broadcasting
Provides consistent performance for stable digital video distribution.
-
MVDS and MITRIS distribution networks with Ku-band AGC LNB 10.6
Supports rebroadcast environments with wide dynamic range and reliable AGC.
-
CATV headend integration with Ku-band AGC LNB
Ensures steady IF output for professional cable TV headends.
-
Satellite telecom and rebroadcast downlinks
High rejection and low noise allow precise signal transport for telecom applications.
-
Rugged outdoor Ku-band PLL LNB with AGC
Built to withstand severe weather, ensuring stable reception in remote locations.
-
OEM and system integrators
Compact design with flexible outputs makes it ideal for modular systems and custom integration.
