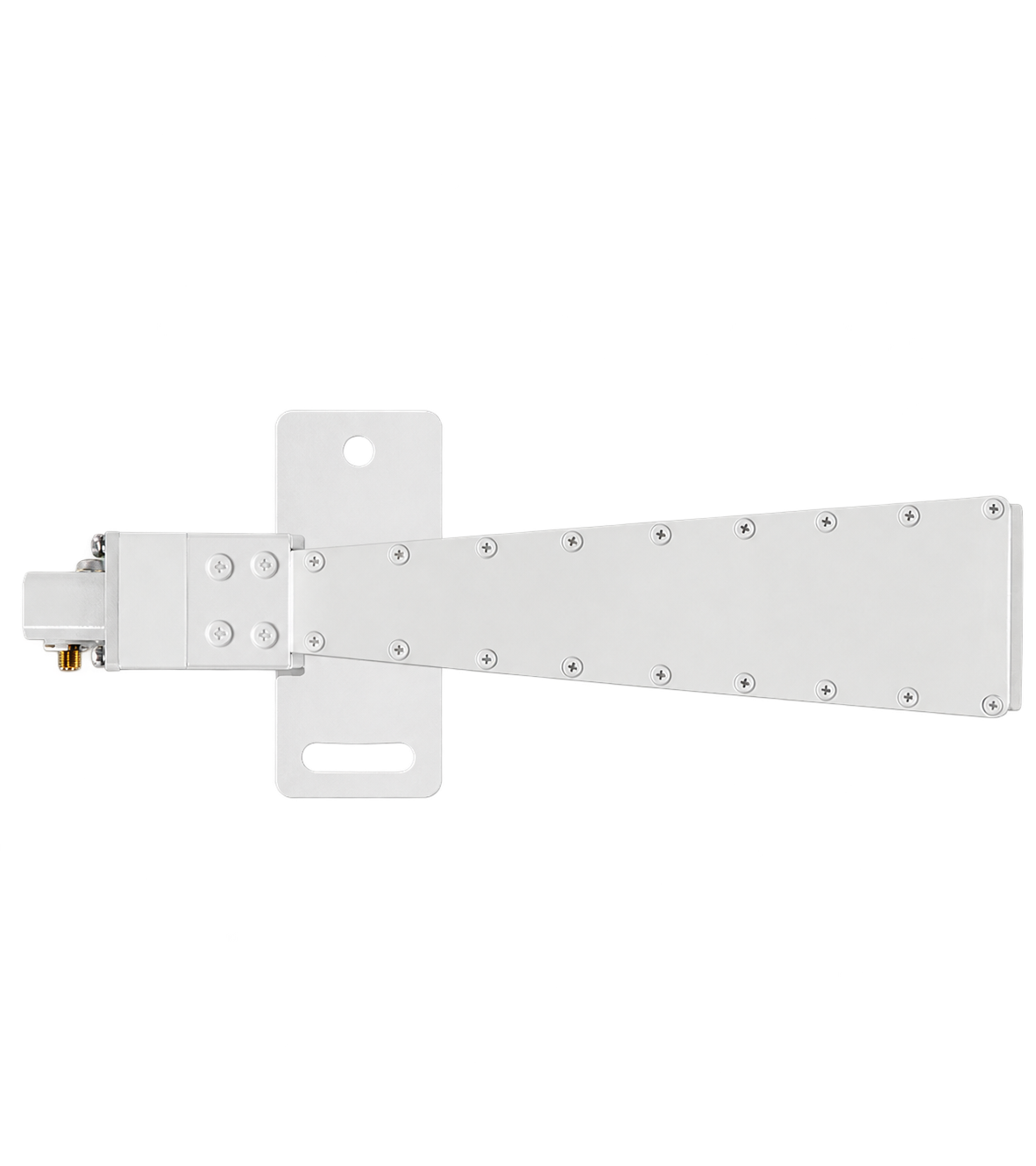

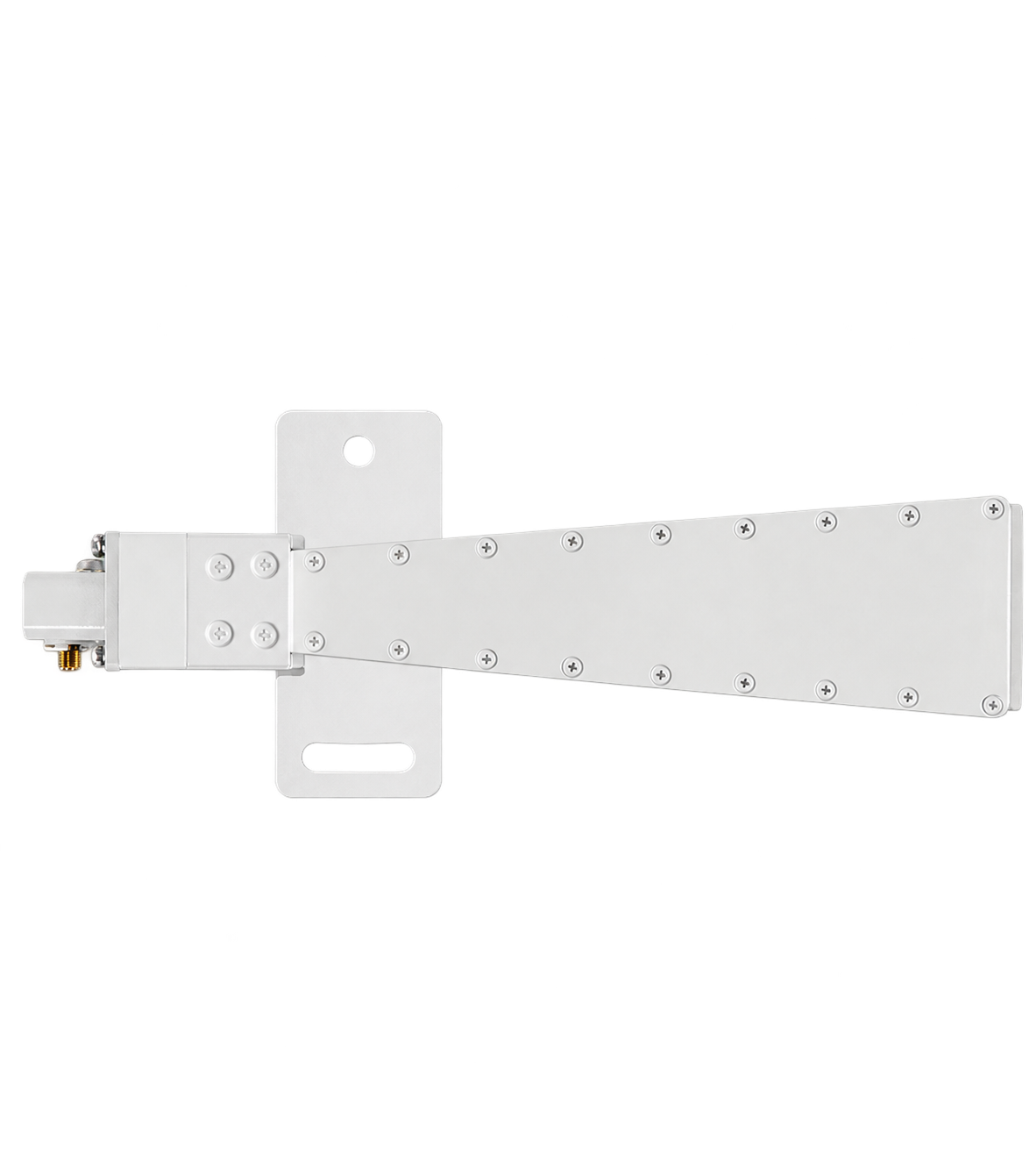

SSA-XV70 v1
Short description
SSA-XV70 v1 is Short Sector Antenna.
It has:
► Light weight + Compact size + High gain
► Radiation pattern of 70 degrees and V-polarization
► Beam(H): 70°; Beam(V): 29°
► Frequency range: 8 – 12 GHz
► Gain: 12.2 dB
► It is designed for X-band
SSA-XV70 v1 is X-band short sector antenna which has radiation pattern of 70 degrees in horizontal plane and wide frequency range of 8000 – 12000 MHz.
Key features:
- Reliable design
- Light weight
- Compact size
- High gain
Main functions:
- Transmit and receive C-band signals
- Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems
| Parameter | Value |
|---|---|
| Frequency range, GHz | 8.0 – 12.0 |
| Gain, min, dBi | 12.2 |
| VSWR | 1.6 |
| Polarization | vertical |
| Cross-polarization isolation, dB | 25 |
| HPBW: | |
| @horizontal | 66-77° |
| @vertical | 24-33° |
| Gain range in aperture, dB | ±1.2 |
| Temperature range, °C | -50 to +80 |
| Humidity | 100% where 25°C |
| Size (L x H x W), mm | 305 x 120 x 42* |
| Weight, kg | 0.7* |
| Directional diagram tuning, deg: | |
| Elevation angle | ±30° |
| Azimuth | ±360° (around the pipe) |

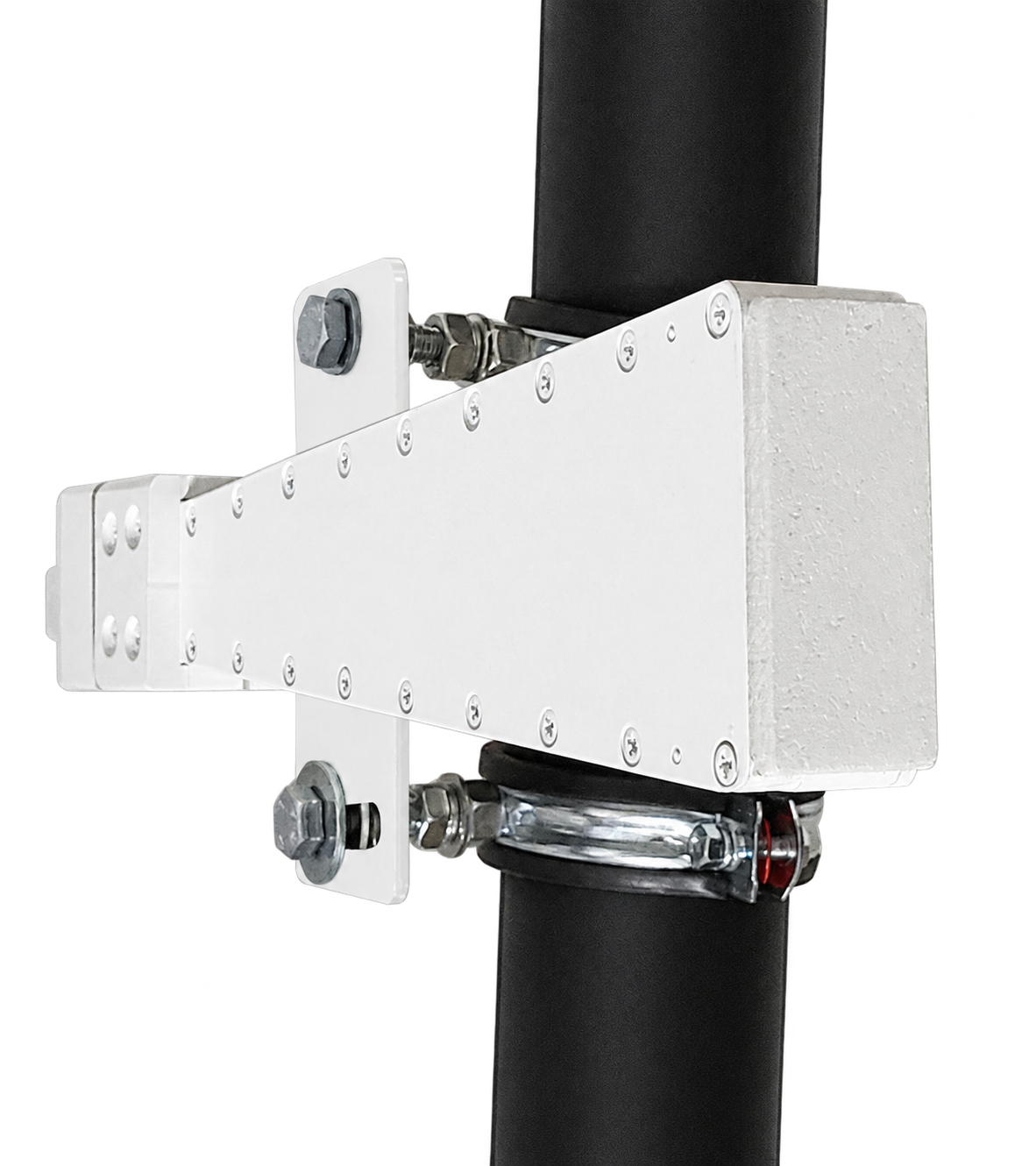

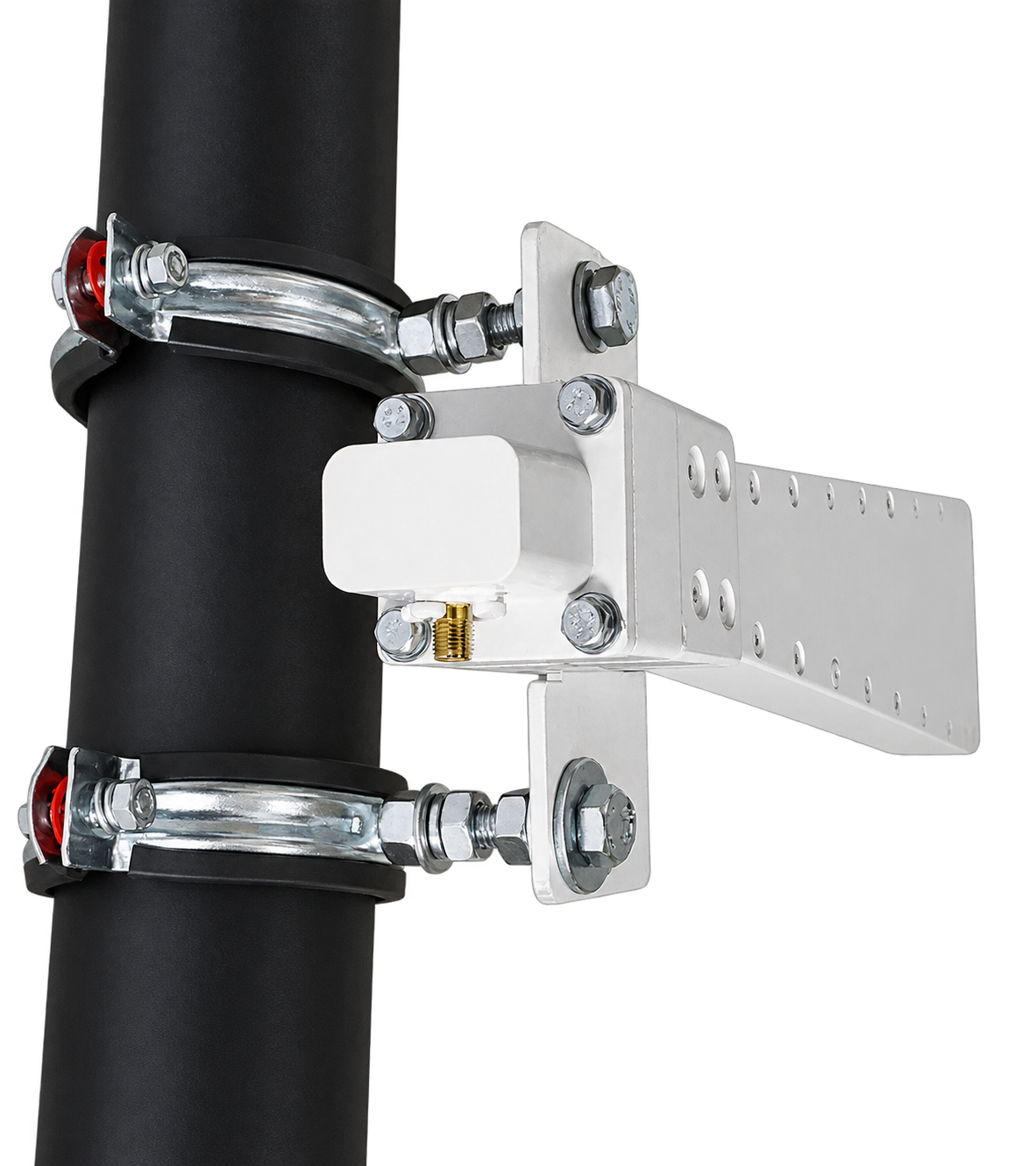

| Mounting | Installation on the pipe diameter up to 45 mm |
| Input power, W | 20 |
| Body | Dust/moisture proof |
*without holder
