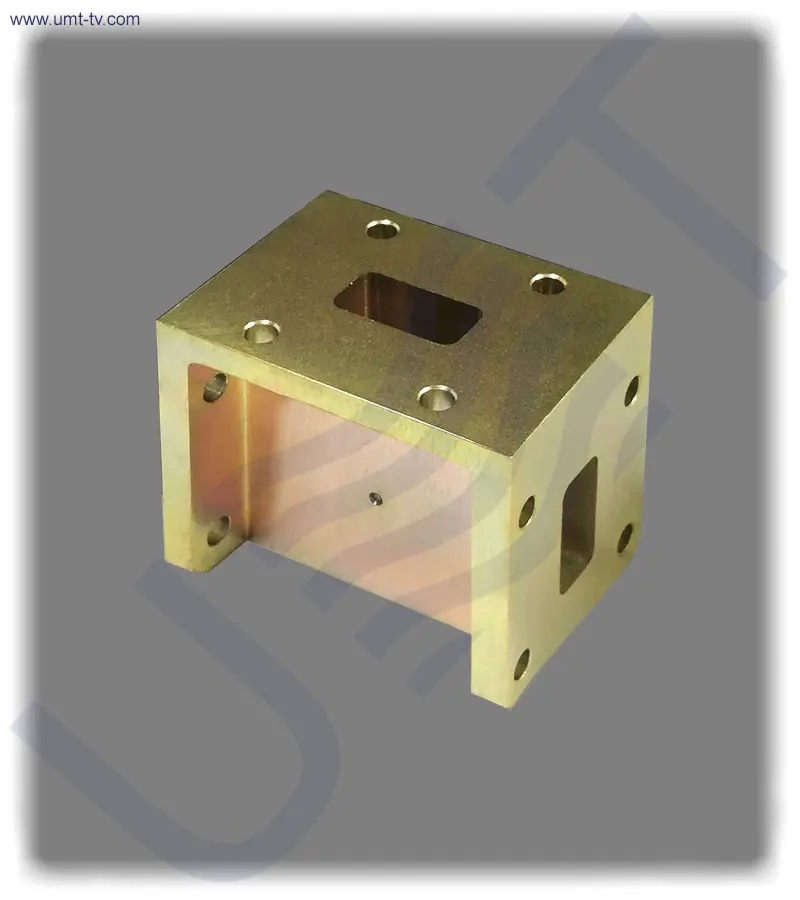

Two-way H-plane Waveguide Power Divider is a precision-engineered passive RF component designed for efficient microwave power distribution in Ku-band systems. Its H-plane junction architecture provides excellent amplitude balance, minimal insertion loss and robust isolation, making it suitable for antenna sector assemblies, omni-directional feed systems and high-frequency RF networks. The divider ensures reliable energy distribution across two output ports while maintaining low VSWR and stable impedance characteristics.
With a return loss of -25 dB, insertion loss of 0.5 dB and port isolation of 6–7 dB, the Two-way H-plane Waveguide Power Divider delivers dependable performance in satellite communication systems, broadcast uplinks and multi-branch microwave architectures. Its broadband capabilities and minimized reflection characteristics allow seamless integration into waveguide-based RF paths, supporting consistent amplitude-frequency behavior and enhanced system efficiency.
✅ Stable H-plane coupling for balanced signal distribution
The H-plane structure provides uniform power division with excellent amplitude consistency across the operational band. It ensures reliable output symmetry in dual-branch antenna systems, contributing to improved radiation uniformity and RF performance.
✅ Low insertion loss and excellent return loss
Engineered for clean microwave propagation, the divider achieves a 0.5 dB insertion loss and -25 dB return loss, enabling efficient signal transfer. This reduces unwanted reflections and improves the stability of feed assemblies and uplink signals.
✅ 6–7 dB isolation for interference-free RF operation
The divider maintains effective separation between output ports, protecting connected devices from cross-coupling. This is essential for sectorized antenna systems, phased arrays and broadband RF distribution networks.
🛠️ The Two-way H-plane Waveguide Power Divider is developed for high-frequency waveguide networks and is optimized for WR-band waveguide chains. It provides consistent impedance control and low VSWR for broadband Ku-band operation, while its H-plane geometry supports improved distribution characteristics for multi-sector antenna and RF infrastructures.
🛒 The Two-way H-plane Waveguide Power Divider is a reliable choice for satellite RF paths, sector assemblies and omni feed systems. Engineers rely on its predictable broadband response, durable construction and compact integration capabilities for professional satcom environments.
📌 Key features
-
Two-way H-plane waveguide power divider with broadband capability
This divider ensures robust microwave power splitting with accurate amplitude performance across the Ku-band. Its H-plane design supports efficient integration into sector antennas, omni arrays and satellite RF systems.
-
Low 0.5 dB insertion loss for high-efficiency operation
The minimized insertion loss reduces overall system attenuation, improving uplink and downlink link quality. Its broadband characteristics support complex modulation formats in satcom and microwave networks.
-
-25 dB return loss for reduced reflection and stable VSWR
The divider provides well-matched waveguide transitions, significantly lowering reflection levels and supporting clean RF flow. This enhances system stability and allows efficient integration into diverse waveguide configurations.
-
Port isolation of 6–7 dB for stable multi-branch systems
The controlled isolation protects each branch from interference, providing reliable signal distribution in phased arrays and broadcast systems. It supports balanced RF behavior in multi-sector transmission chains.
-
Compact mechanical design ideal for antenna feed networks
The small, rugged form factor allows easy integration into waveguide-based RF structures. Its stability and broadband performance make it well-suited for sector assemblies and omni antenna applications.
⚙️ Main functions
-
Balanced two-way RF division using H-plane coupling
The divider provides stable and symmetrical power distribution across two outputs, supporting efficient feeding of antenna sectors. Its H-plane configuration ensures predictable amplitude and phase characteristics.
-
Reduction of reflections and enhancement of broadband RF flow
With -25 dB return loss, the divider minimizes back-reflections, protecting upstream RF components and ensuring smooth transmission. This enhances modulation integrity and overall waveform stability.
-
Isolation between output ports for interference control
Isolation of 6–7 dB prevents interaction between the output branches, preserving independent operation of downstream components. This is critical in sector arrays and distributed microwave architectures.
-
Support for high-frequency microwave networks and Ku-band systems
Its broadband performance enables integration into complex RF assemblies requiring consistent amplitude-frequency behavior. It is ideal for satellite communication infrastructure and telecommunication sector antennas.
🧩 Applications
-
Sector and omni antenna feed systems
The H-plane divider ensures stable power delivery to multi-sector antenna configurations. It is ideal for microwave base stations, broadcast arrays and wide-angle coverage antenna systems.
-
Satellite communication networks and RF distribution
It provides low-loss power splitting for feedhorn assemblies, uplink systems and waveguide-based RF routers. It supports high-quality performance in Ku-band communication links.
-
Phased array antennas and multi-branch RF paths
The balanced H-plane architecture supports phase-consistent distribution essential for array synchronization. It ensures stable performance in complex multi-port antenna structures.
-
Microwave measurement and laboratory RF setups
Its controlled impedance and low VSWR characteristics make it suitable for precision RF testing environments. Engineers use it for calibration, research and broadband signal processing experiments.
