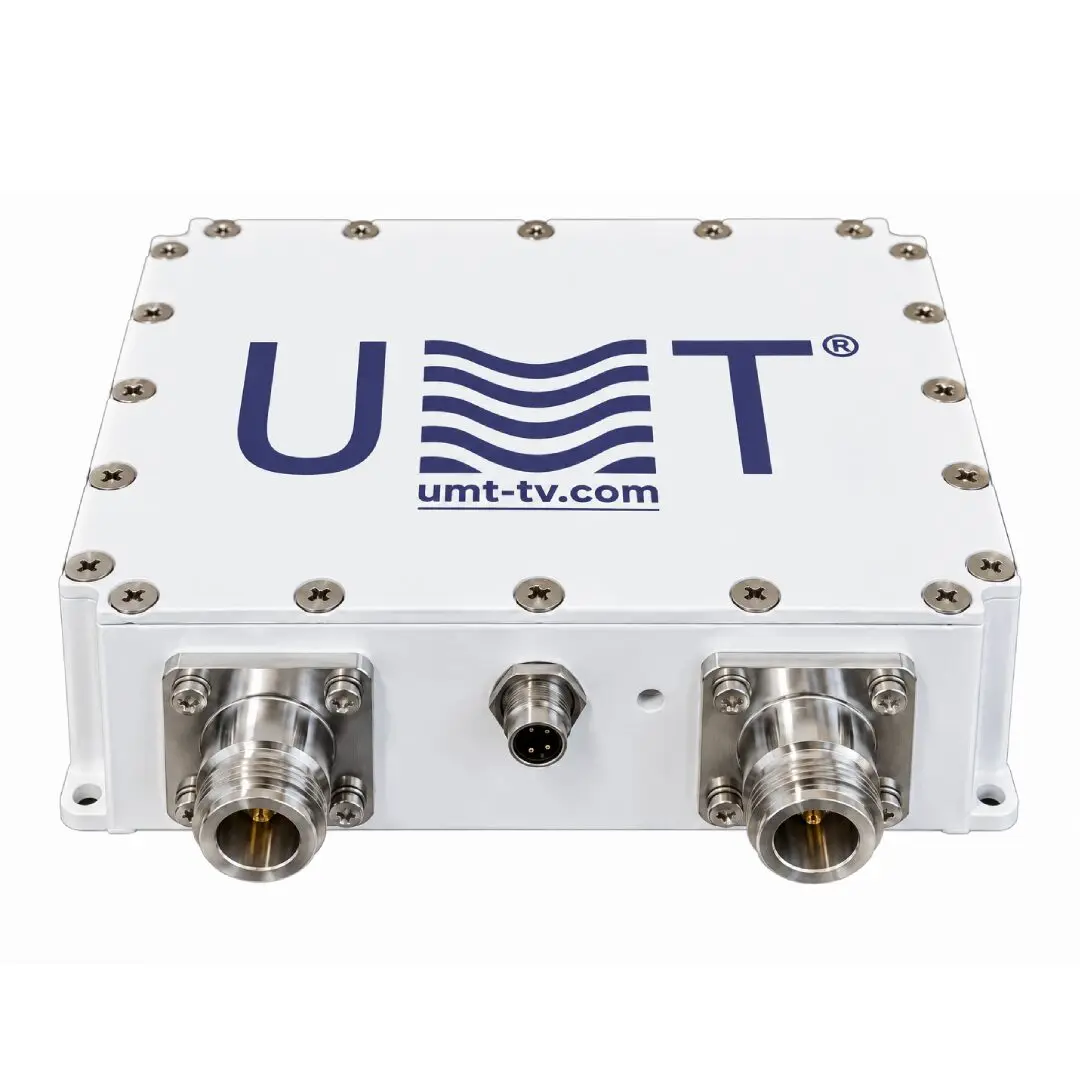

The X-band Upconverter 7.9-8.4 GHz is intended for satellite uplinks in the X-band, the frequency range traditionally reserved for government and military satellite communications. It converts 950-1450 MHz IF signals to 7.9-8.4 GHz with a 6.95 GHz local oscillator locked to an external 10 MHz reference.
X-band networks often require compact, reliable equipment for fixed earth stations and shelters. The converter provides a minimum P1dB of 10 dBm and 5-30 dB gain, consumes less than 9 W from 10-24 VDC and is housed in a 115x120x38 mm IP54 indoor enclosure weighing up to 0.95 kg.
The X-band Upconverter 7.9-8.4 GHz is a compact upconverter/BUC for X-band satellite uplinks. It shifts 950-1450 MHz IF signals from a satellite modem to the 7.9-8.4 GHz uplink band using a 6.95 GHz local oscillator locked to an external 10 MHz reference.
X-band is primarily used by government and military satellite networks, where links must remain dependable under demanding conditions. The converter supports these networks with a minimum P1dB of 10 dBm, 5-30 dB gain, ±1 dB full-band flatness and ±0.4 dB flatness over 40 MHz.
Specified performance includes IMD3 -30 dBc max, spurious -60 dBc max @P1dB and LO leakage -75 dBm without signal, with operation from -40°C to +60°C. N-type input and N-type female output connect directly to the modem and the X-band power amplifier.
✅ Built for X-band government satcom
The 7.9-8.4 GHz output range matches the X-band uplink used by government and military satellite systems.
✅ Wide operating temperature
Operating temperature from -40°C to +60°C and storage from -40°C to +95°C suit shelters and equipment rooms with wide temperature swings.
✅ Reference-locked 6.95 GHz LO
The 6950 MHz local oscillator follows the external 10 MHz reference; phase noise is specified from -35 dBc/Hz @10 Hz to -105 dBc/Hz @1 MHz.
🛠️ For government X-band earth stations, defence communication hubs or X-band teleport uplinks, the X-band Upconverter 7.9-8.4 GHz provides a compact, reference-locked conversion stage.
🛒 For pricing, lead times or gain configuration of the X-band Upconverter 7.9-8.4 GHz, please send us a request.
📌 Key features
-
7.9-8.4 GHz X-band output
Covers the X-band satellite uplink range used by government and military systems.
-
950-1450 MHz IF interface
Direct connection to L-band satellite modems and modulators.
-
6.95 GHz LO locked to 10 MHz
6950 MHz local oscillator synchronized with an external 10 MHz reference, with LED lock indication.
Provides at least 10 dBm output at 1 dB compression to drive the X-band power amplifier.
5-30 dB gain, fixed or adjustable; adjustment is available as an option.
IP54 indoor enclosure, humidity up to 60% non-condensing, 10-24 VDC supply and under 9 W consumption.
⚙️ Main functions
Converts 950-1450 MHz IF to the 7.9-8.4 GHz X-band uplink.
-
Synchronization with the station reference
Locks the LO to the external 10 MHz reference distributed in the earth station.
IMD3 -30 dBc max, spurious -60 dBc max @P1dB and LO leakage -75 dBm help maintain a clean uplink spectrum.
Fixed or adjustable gain of 5-30 dB matches the required drive level.
-
Alarm and status indication
LEDs show 10 MHz lock and alarm; RF isolation at ALARM is specified at -80 dB min.
🧩 Applications
-
Government satellite communications
X-band earth stations of government communication networks.
Fixed X-band hub and gateway uplinks for defence networks.
Teleports providing X-band capacity to government users.
X-band VSAT hub transmit chains.
-
Satellite operator tracking
Satellite operator tracking applications that require stable IF-to-X-band conversion.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the X-band Upconverter 7.9-8.4 GHz, feel free to contact our team. We provide professional consultation and aftersales support to help with integration, installation and setup of the upconverter within your satellite communication system.
