BiOA-X/Ku-360

Short description

BiOA-X/Ku-360 is biconic omni antenna



► It is designed for Ku band with antenna aperture of 360° and linear polarization

► Frequency range of 8.0-18.0 GHz

► Beam (H): 360°; Beam (V): 8°

► Gain: 8 dBi

► Full X and Ku-band covering

- +
  • Description
  • Downloads

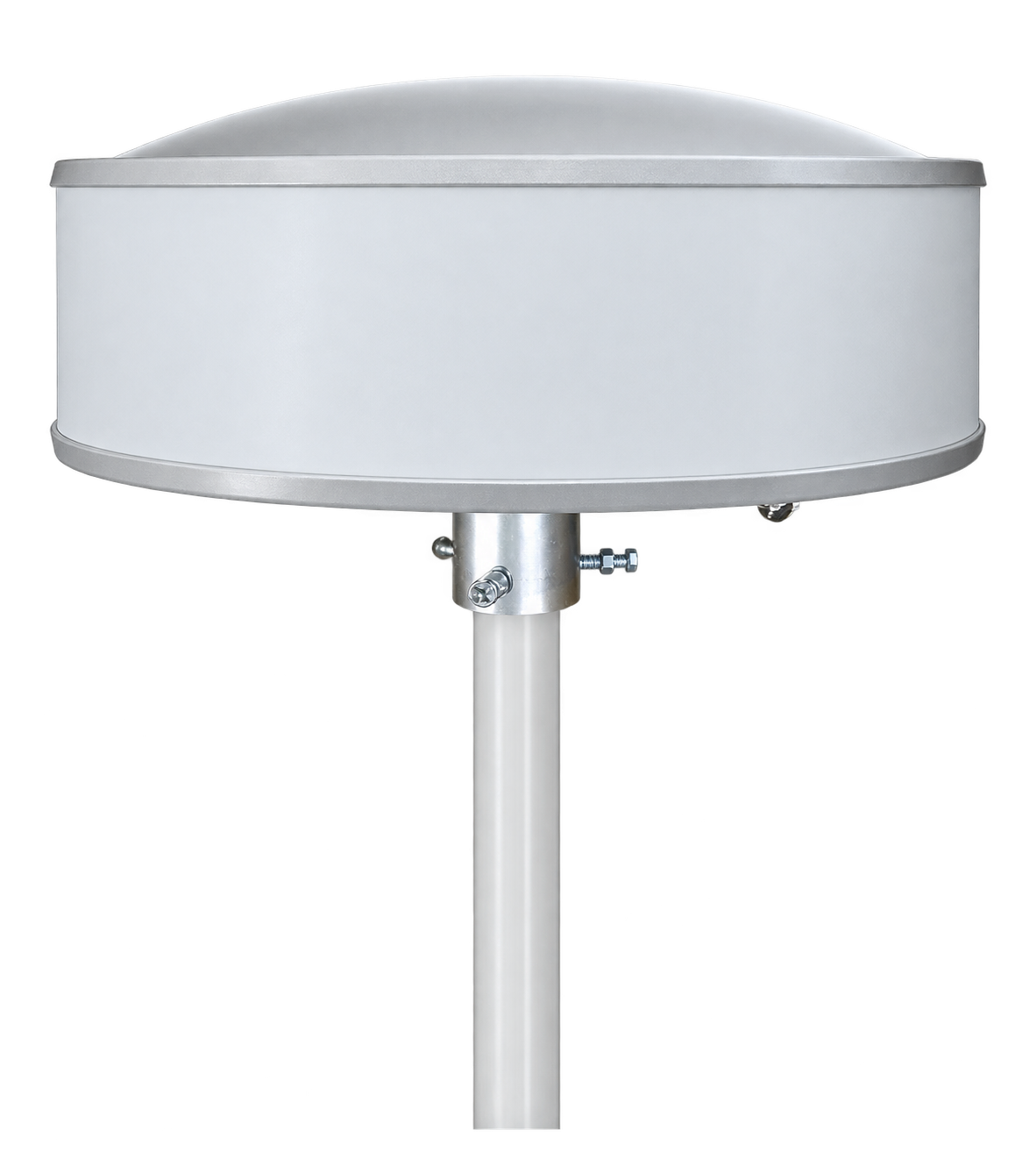

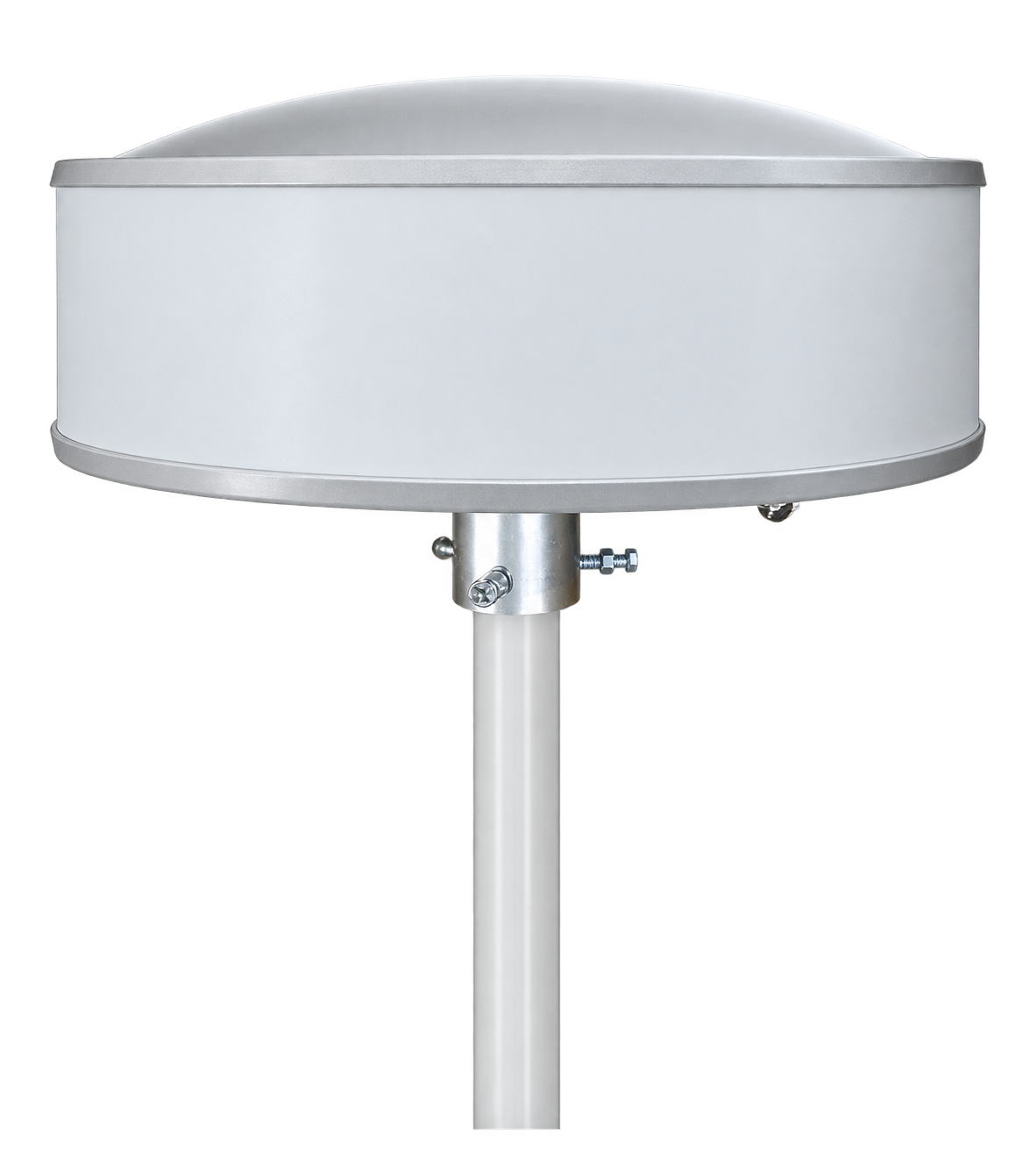

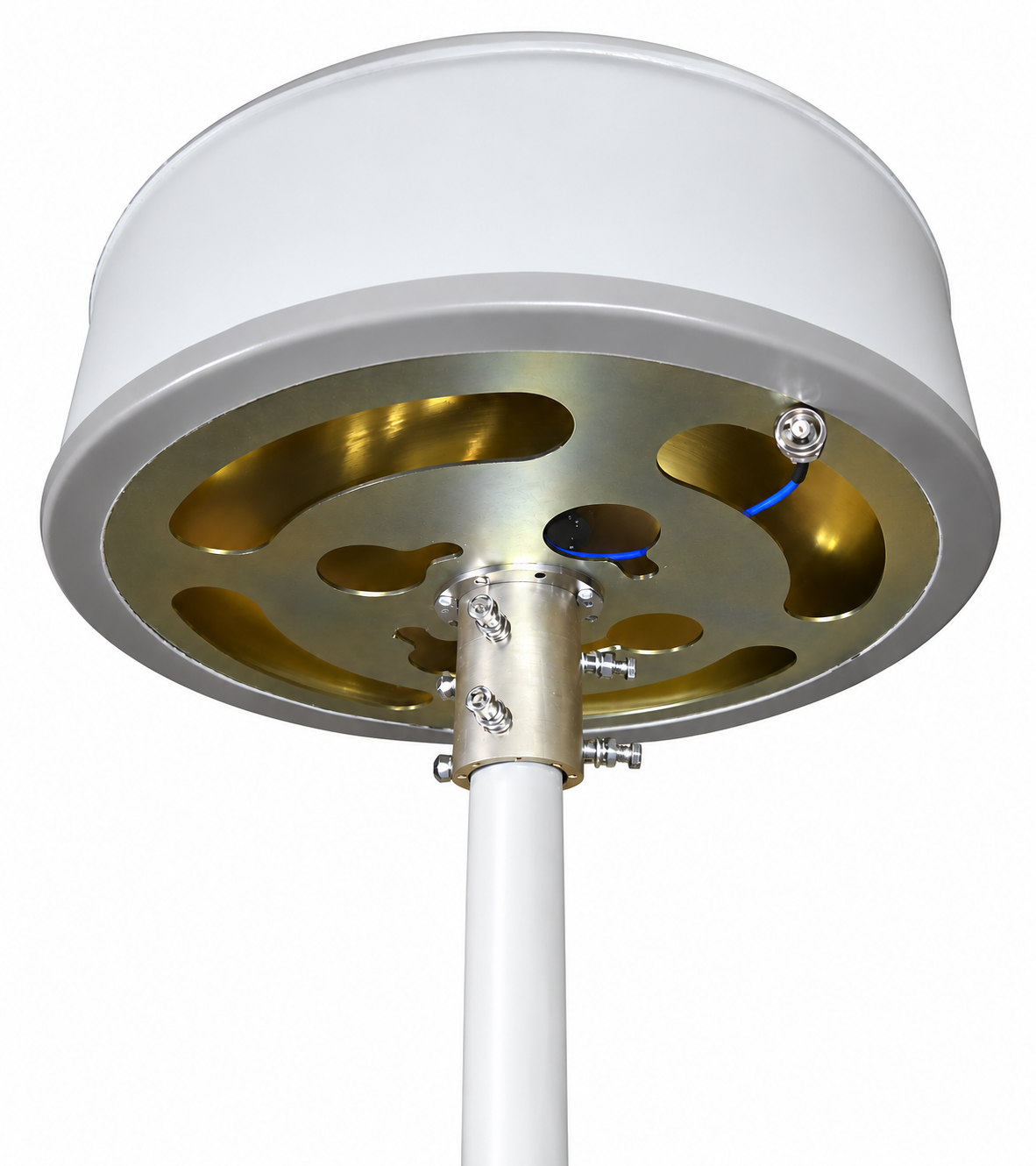

BiOA-X/Ku-360 is Biconic OMNI antenna designed for Ku band (full covering). BiOA-X/Ku-360 has gain of 8 dBi and low windage characteristics. Signal transmitted by this OMNI antenna can be received by typical Ku-band dish and LNB.

Key features:

  • Omnidirectional: 360-degree radiation pattern
  • Frequency range of 8.0-18.0 GHz
  • Low pattern ripple: up to 1 dB
  • Gain: 8 dBi
  • Full X and Ku-band covering
  • Low windage characteristics

Main functions:

  • Transmit/receive X/Ku-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

BiOA-Ku-360 diagram - developed by UMT LLC



 Parameter Value
Frequency range, GHz 8.0-12.0 or 12.4-18.0 (by request)
Gain, dBi, at least 8
Gain variation in the aperture, dB, not more 1
VSWR, max 1.9
Polarization Vertical
Cross-polarization, dB, not less 25
HPBW:
@horizontal 360°
@vertical
In/Out power, W, up to 20
In/Out connection N-type (SMA-type by request)
Operating temperature, °C -40 … +80
Humidity 100% @ 25°C
Casing material dust/moisture proof
