BUC-C150

Short description

BUC-C150 is block up-converter with fixed output power 150 W. BUC-C150 has LED status indication at the rear side.

- +
  • Description
  • Downloads

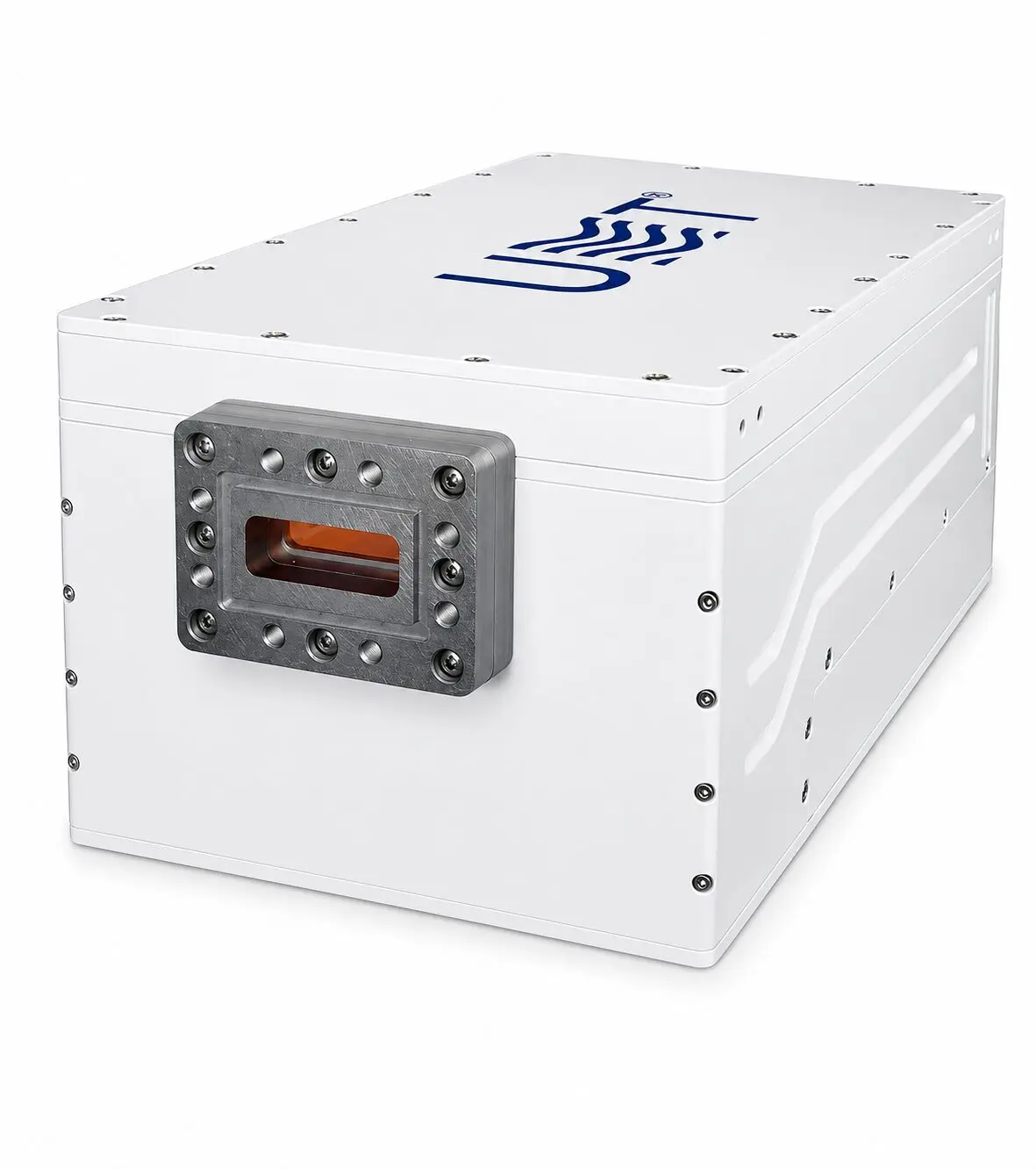

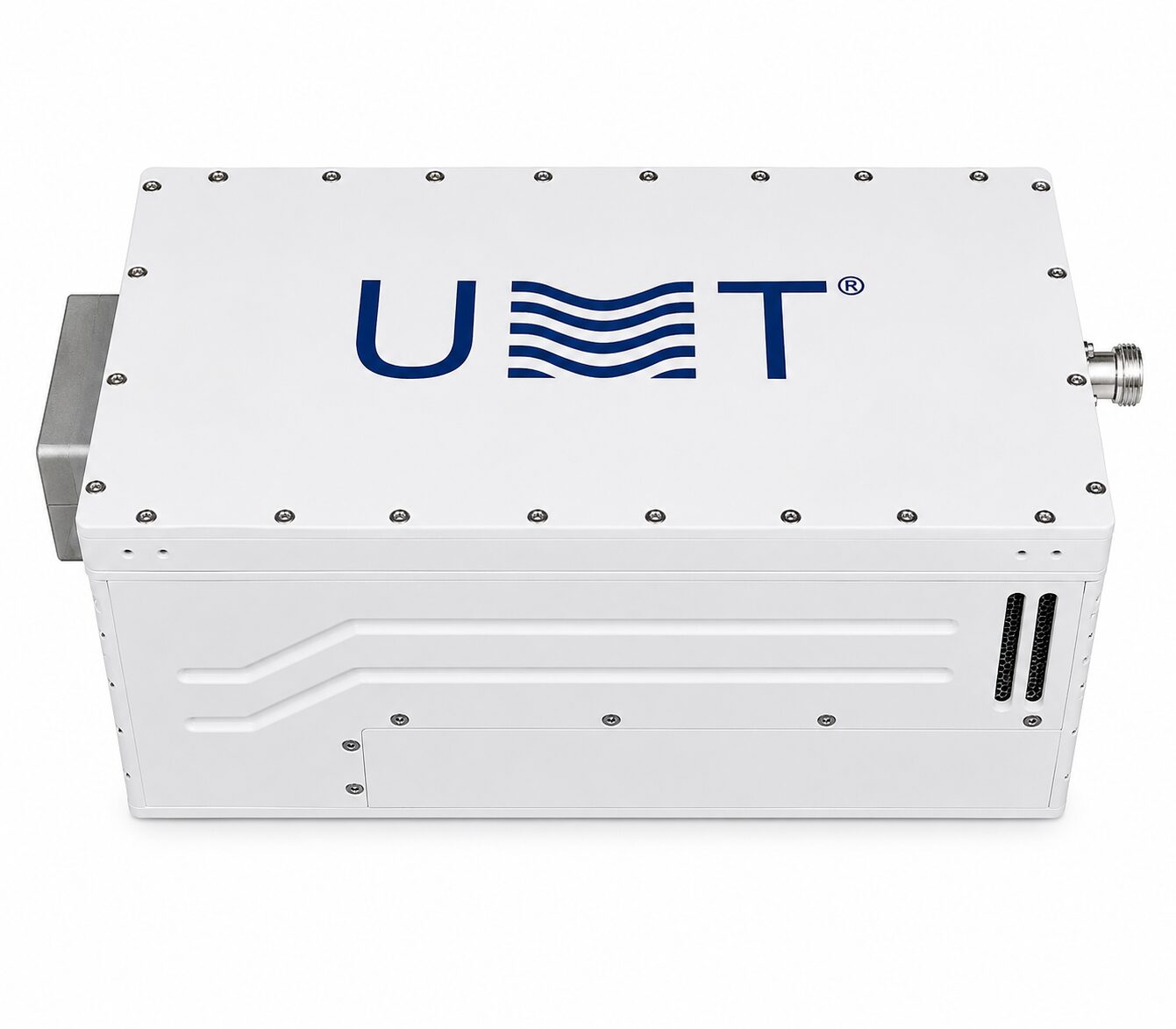

The 150W C-band BUC is a rugged, compact solid state amplifier (SSPA) with integrated block up converter (BUC) suitable for fixed and mobile satellite communications with high data rate or multicarrier requirements. The 150W C-band BUC is an outdoor, environmentally sealed product that can be mounted close to the antenna feed to reduce waveguide loss.

KEY FEATURES:

  • Outdoor SSPA with integrated BUC
  • Compact, Lightweight Package
  • M&C capability via RS232, Ethernet
  • High linearity
Input parameters:
Input Frequency range 950 – 1525 MHz
Input impedance 50 Ohm
Input VSWR, max  1.5
Input interface N-type Female
Local Oscillator:
LO frequency  4900 MHz
LO Phase noise: @1 kHz -75 dBc/Hz
@10 kHz -85 dBc/Hz
@100 kHz -95 dBc/Hz
Output parameters:
Output frequency range 5850 – 6425  MHz
Output Power (GaN) Psat 52 dBm
Plinear 49 dBm
Gain, min 76 dB
IMD3 (two tones) -25 dBc max 2 signal 5 MHz apart at Plinear
Output interface WR137-G (Waveguide Flange)
Output VSWR, max 2.0:1
Frequency Response:
Flatness over Full Band ±2 dB  (4 dB p-p max)
Gain flatness 40 MHz ± 0.5 dB
External frequency 10 MHz
Power range ref. ± 5 dBm
Spurious:
In-band Plinear, max -50 dBc
Out-Band, max -60 dBc
LO leakage, max -40 dBm
Image rejection, min 60 dB
Power Supply:
Input voltage 110 – 265VAC, 47-63Hz
Power consumption, max < 800 W
Environmental:
Operating temperature -20℃ to +50℃
Operating humidity 0 – 95 %
Interfaces:
IF input connector: N-type female; RF output connector: WR137-G

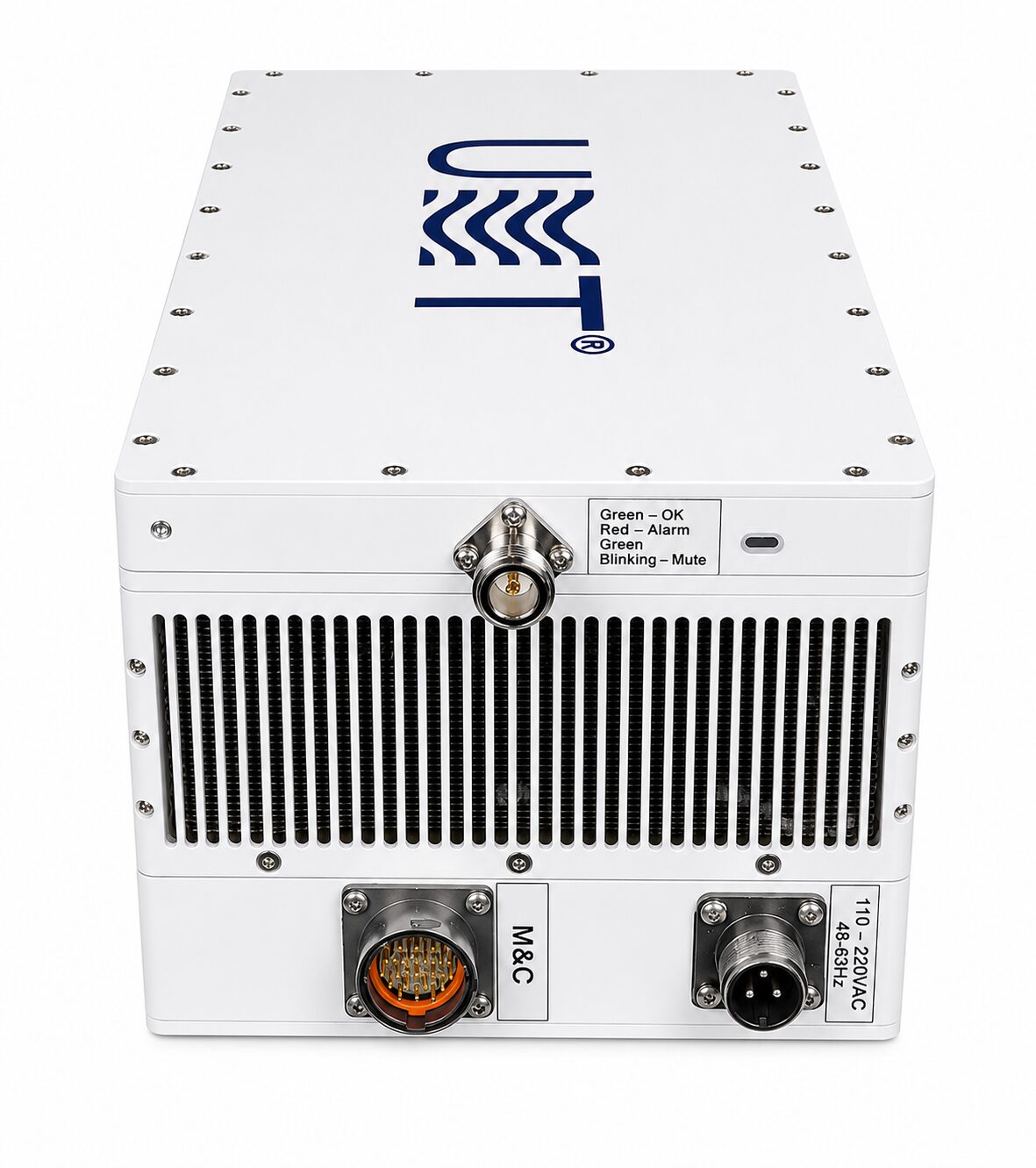

AC connector: PQ14-3; Monitor & Control connector: FQ24-19
Monitor & Control: Serial RS-232, Step Attenuator, Ethernet
LED indicator: Green – OK, Red – Alarm, blink Yellow – MUTE
Mechanical:
Dimensions 333x155x121 mm
Weight, max 11  kg
