2 W C-band block up-converter with LO of 8.8 GHz. BUC-Ku02-8.8-v2.0 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2 or DVB-C standards (use “Customized” button to choose needed parameters) and operates with up to 25 carriers. BUC-Ku02-8.8 has output flange of PBR120 type and can be used with regular radio-relay link (directional) or broadcast (sector and OMNI) antennas. BUC-Ku02-8.8-v2.0 supports all modulation types up to 32APSK and 256QAM (you may choose the modulation type while filling the “customized equipment” form). BUC-Ku02-8.8 has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation, therefore the local oscillator of BUC-Ku02-8.8 is locked by PLL with internal frequency reference). BUC-Ku02-8.8-v2.0 provides 9.75 – 10.75 GHz output frequency range (bandwidth in Ku-band) for 950-1950 MHz input frequency range (bandwidth in L-band).
BUC-Ku02-8.8 v2.0 is a next-generation DVB-S/S2 Ku-band Block Upconverter designed for demanding uplink environments, MVDS networks and professional broadcasting platforms. Unlike the Ku01 series, this upgraded Ku02 model delivers 2 W output power at P1dB, combined with 53 dB gain, making it suitable for extended coverage and multicarrier transmission scenarios.
With a fixed 8.8 GHz PLL local oscillator, the BUC-Ku02-8.8 v2.0 provides stable frequency conversion and excellent phase noise characteristics for DVB-S/S2 applications, supporting modulation schemes up to 256QAM and 32APSK.
✅ Engineered for outdoor deployment

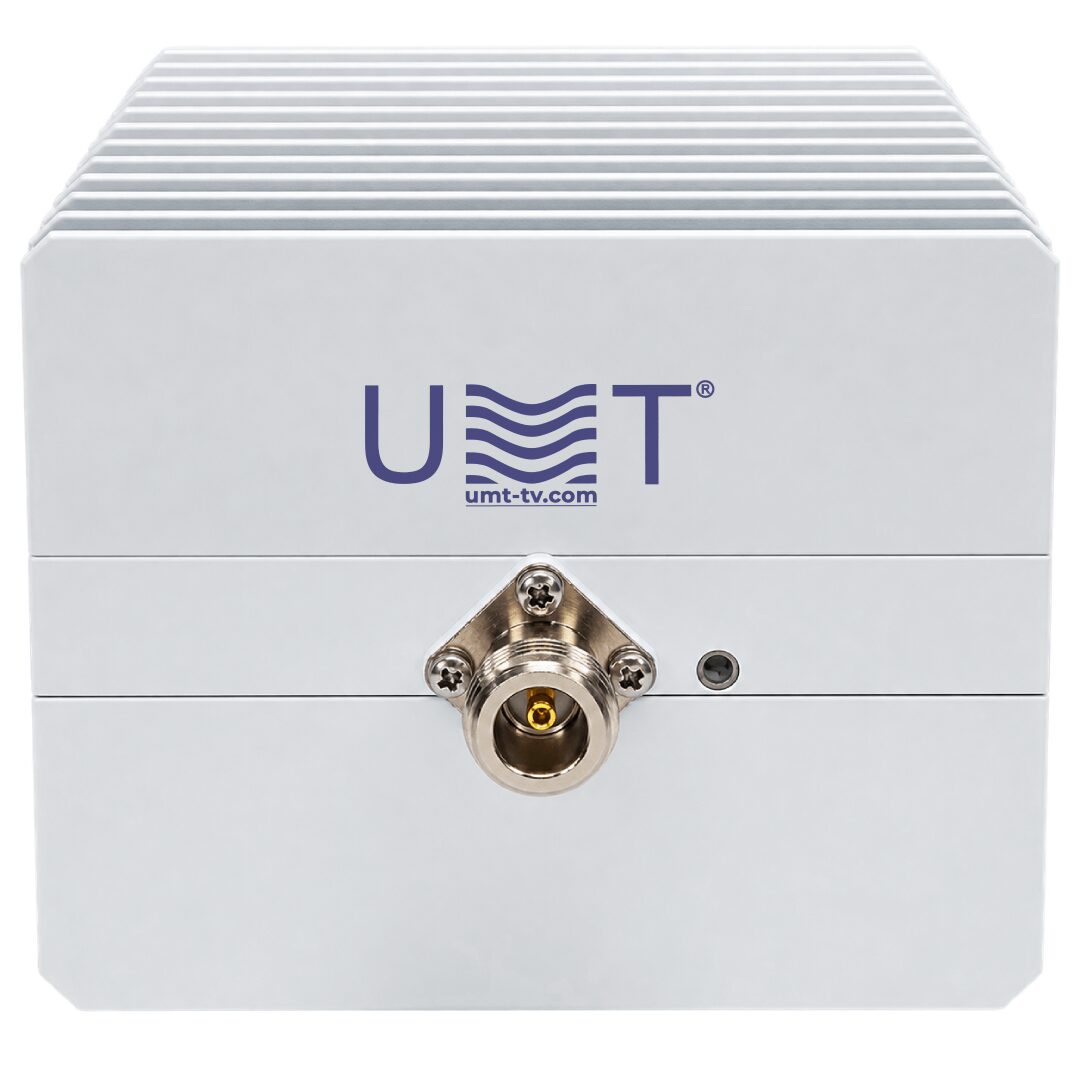

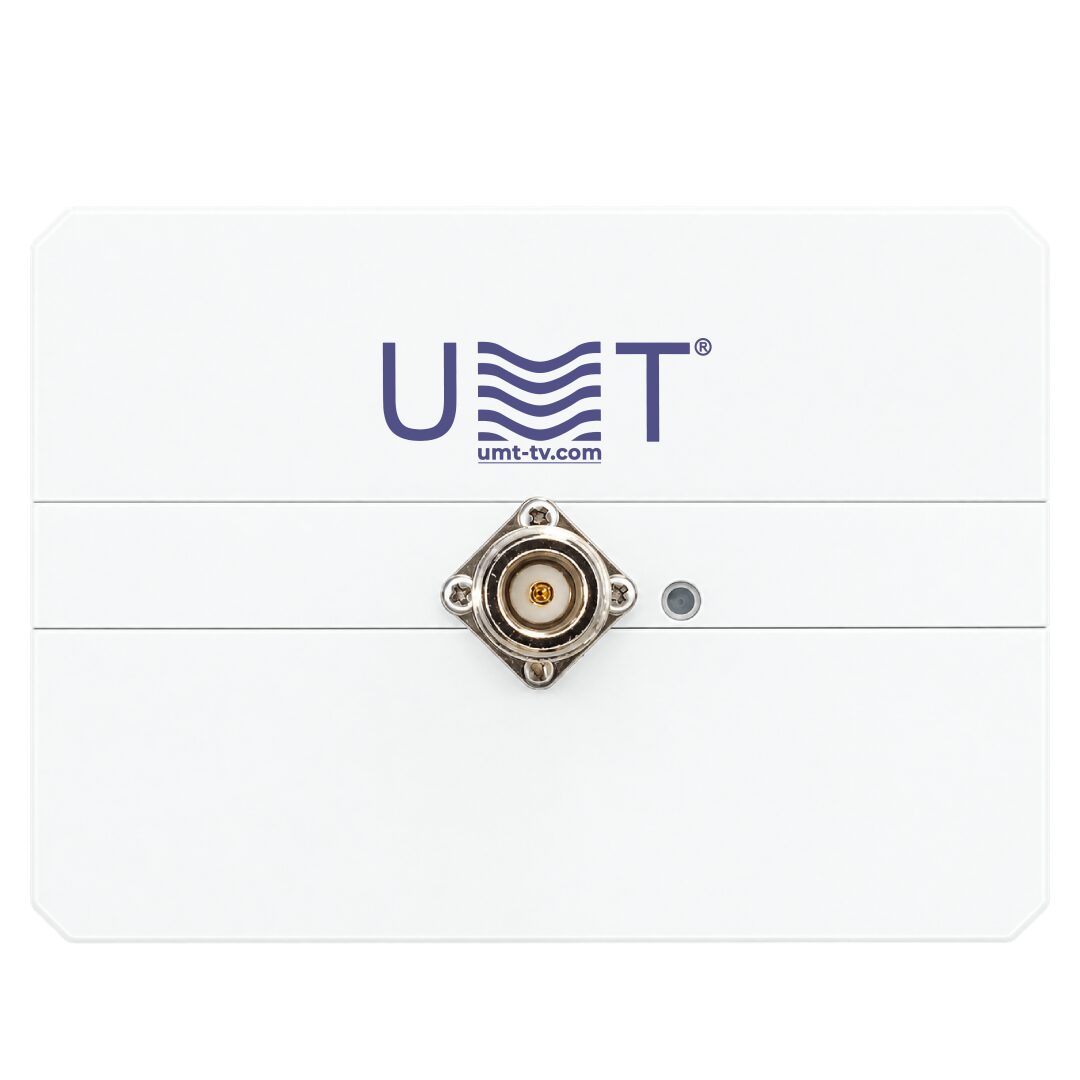

The BUC-Ku02-8.8 v2.0 features a rugged IP65 weatherproof enclosure, ensuring reliable operation in challenging environments. Equipped with WR75 PBR120 flange RF output and 50-ohm N-type Female IF input (other options by request), it is a fully integrated outdoor Ku-band BUC solution.
✅ Support for up to 25 carriers
This multicarrier Ku-band BUC transmitter ensures clean and reliable transmission with low phase noise and in-band spurious rejection of ≤−55 dBc, delivering stable RF performance even in complex DVB-S/S2 networks.
✅ A great fit for demanding Ku-band projects
The BUC-Ku02-8.8 v2.0 is designed as a solid-state high-power Ku-band BUC, offering outstanding linearity and reliability with ≤15 W consumption and a compact but reinforced form factor (~1.15 kg).
🛠️ Whether you need a Ku-band BUC integration for remote uplink stations or are sourcing a 2 W DVB-S/S2 Ku-band transmitter with PLL LO and ALC, the BUC-Ku02-8.8 v2.0 is optimized for precision, efficiency and professional-grade performance.
🛒 The BUC-Ku02-8.8 v2.0 is now available to order online and is ready to be deployed into any Ku-band broadcast system requiring higher output power, stability and outdoor readiness.
📌 Key features
-
High-power solid-state Ku-band BUC-Ku02-8.8 v2.0
This 2 W Ku-band BUC is engineered for high-reliability satellite and broadcast uplinks, offering increased power compared to Ku01 models while maintaining compact dimensions.
-
Fixed 8.8 GHz PLL LO with ±2 ppm stability
The integrated PLL-stabilized LO ensures precise IF-to-RF conversion, critical for DVB-S/S2 uplinks where frequency stability and low phase noise are essential.
-
Output power: 2 W at P1dB with ALC (25 dB dynamic range)
Delivering strong output with automatic level control, the BUC-Ku02-8.8 v2.0 maintains consistent transmission across varying IF inputs, supporting multicarrier Ku-band applications.
-

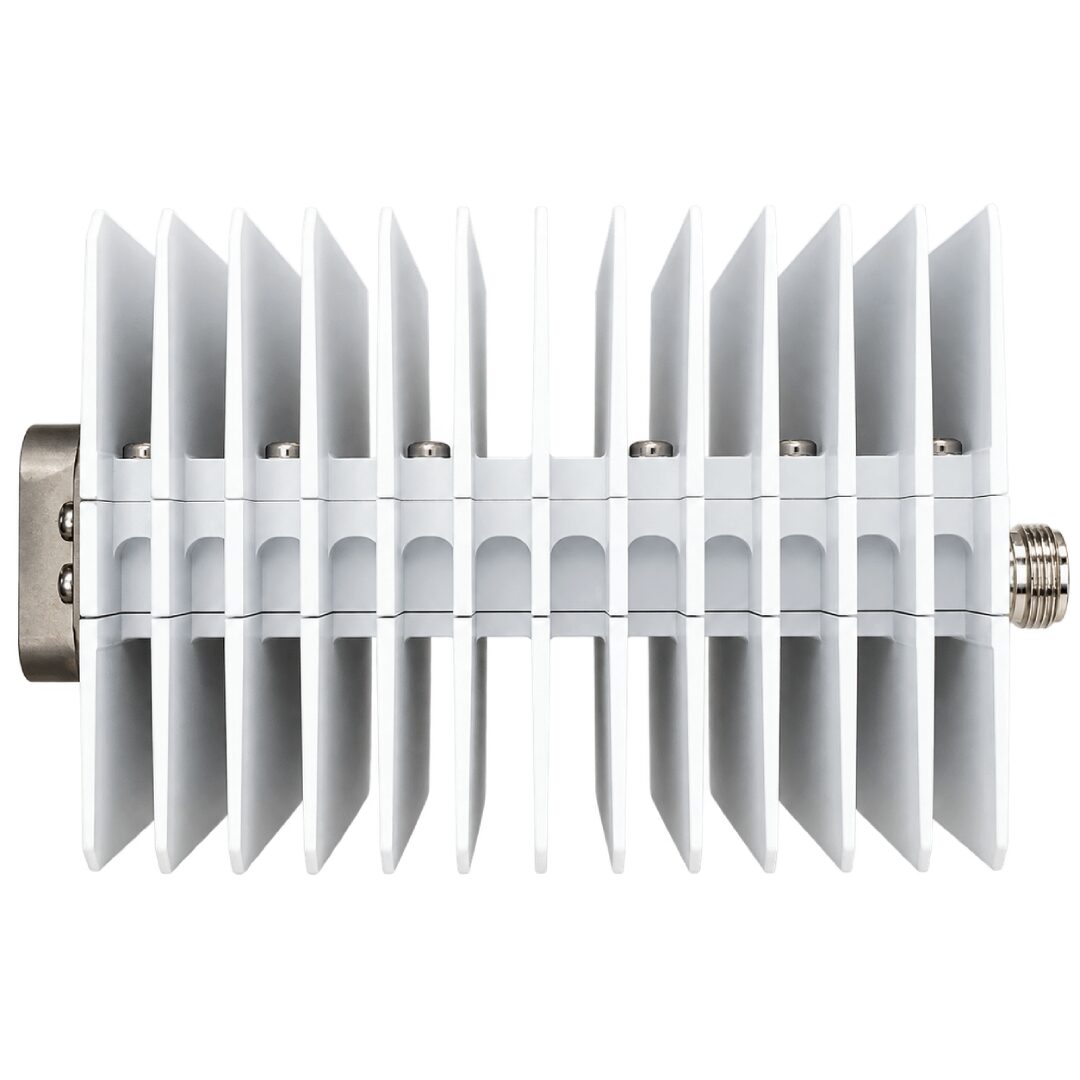

53 dB gain with integrated 10 MHz reference
Higher gain than Ku01 series allows stronger signals in challenging link budgets, while the built-in 10 MHz reference simplifies synchronization in complex networks.
-

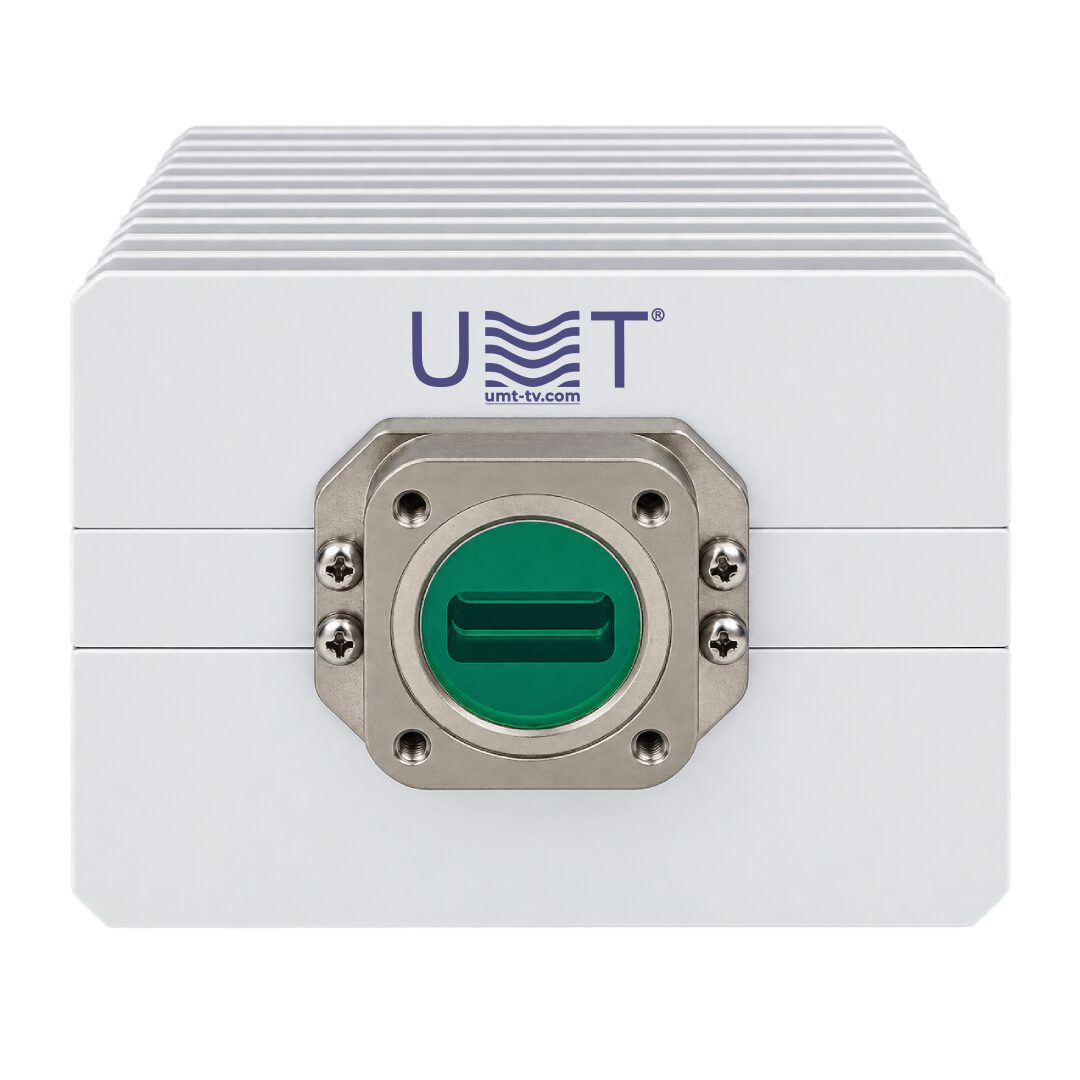

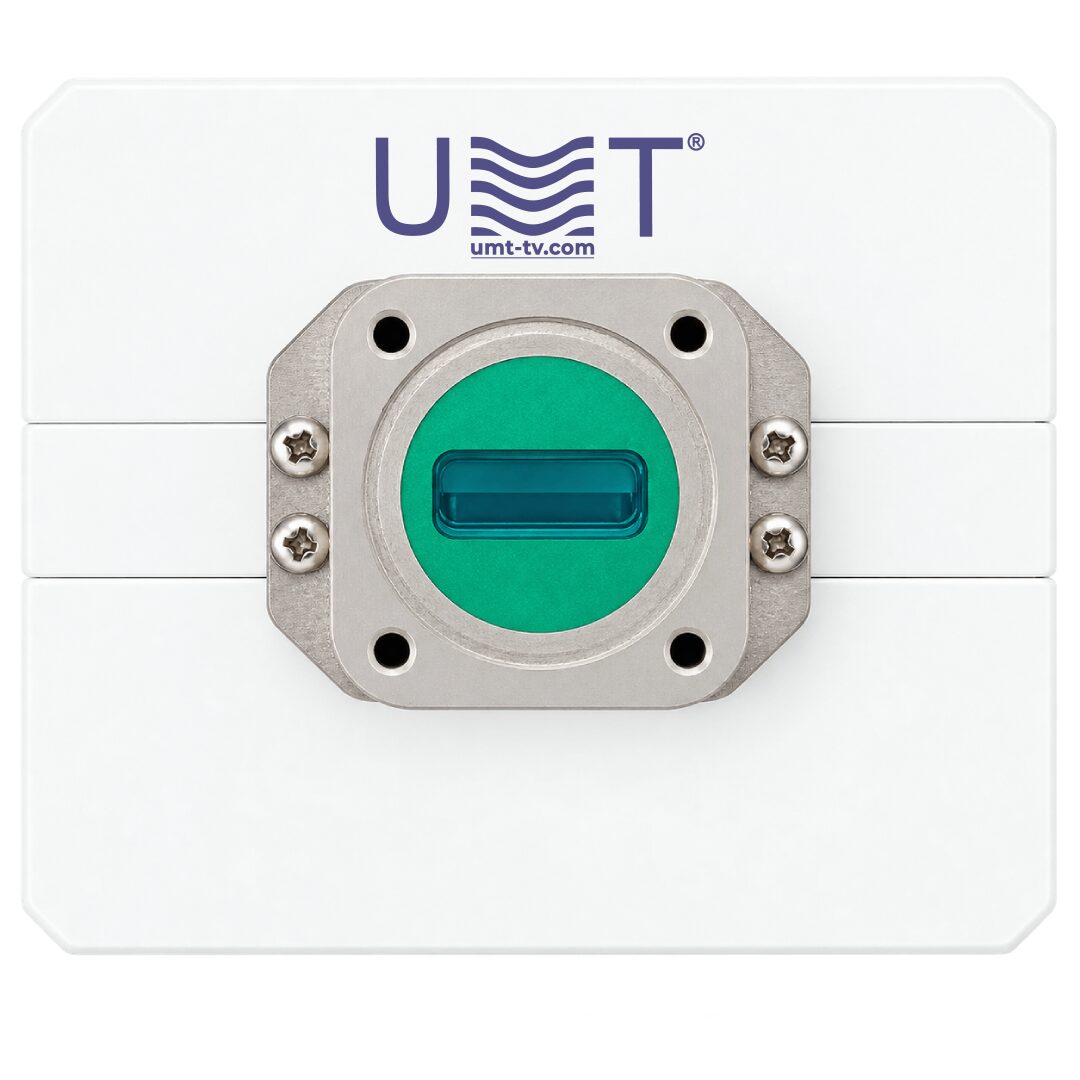

WR75 PBR120 flange RF output and N-type IF input
With standard interfaces, the BUC-Ku02-8.8 v2.0 integrates easily into teleport stations, repeater setups and broadcast infrastructures.
Spurious ≤−55 dBc and LO leakage ≤−40 dBm ensure interference-free operation, making this model suitable for high-linearity DVB-S2 satellite systems.
-
IP65-rated enclosure, reinforced build
The housing ensures dustproof and waterproof protection, with robust mechanics to support fixed or mobile outdoor deployments.
⚙️ Main functions
-
IF to Ku-band upconversion

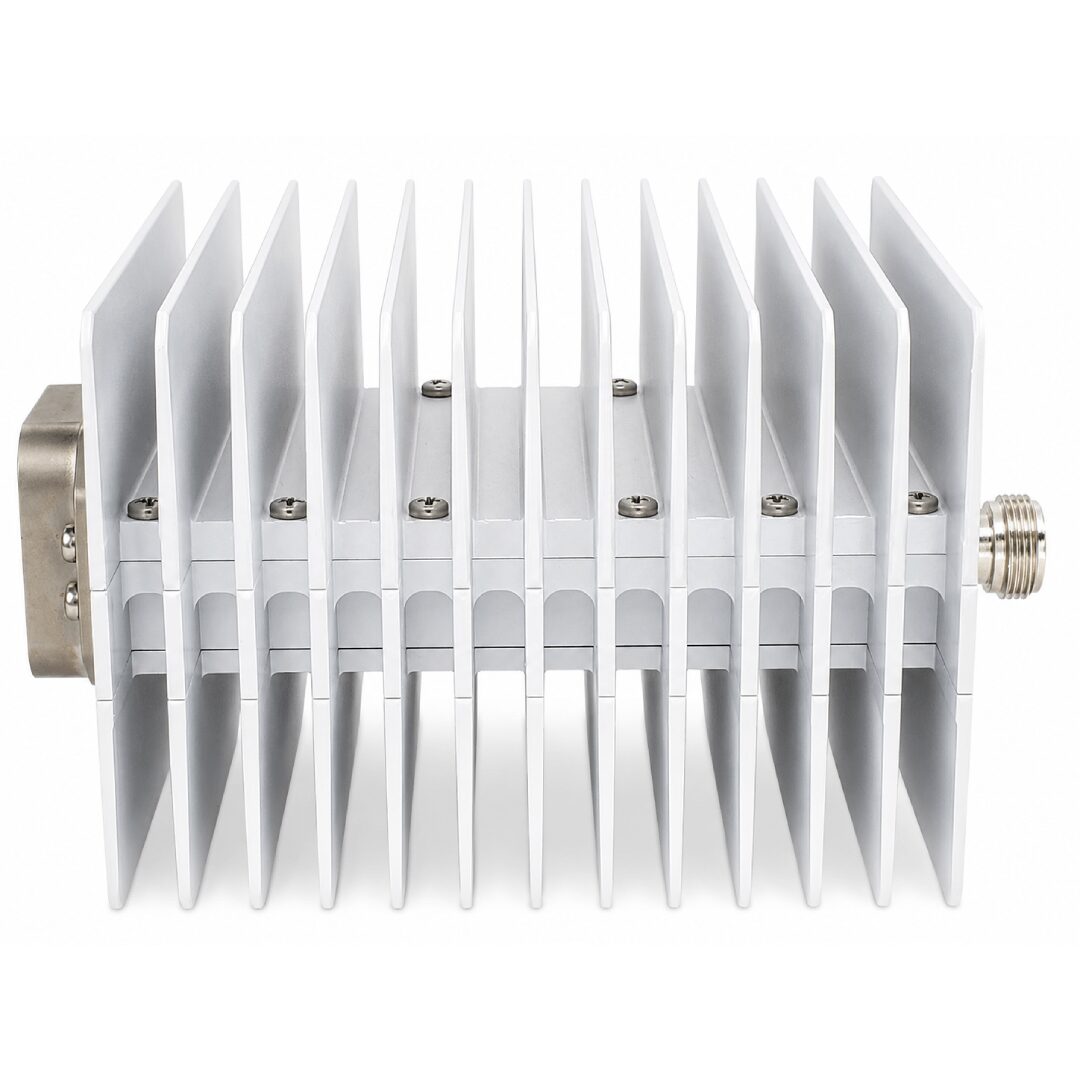

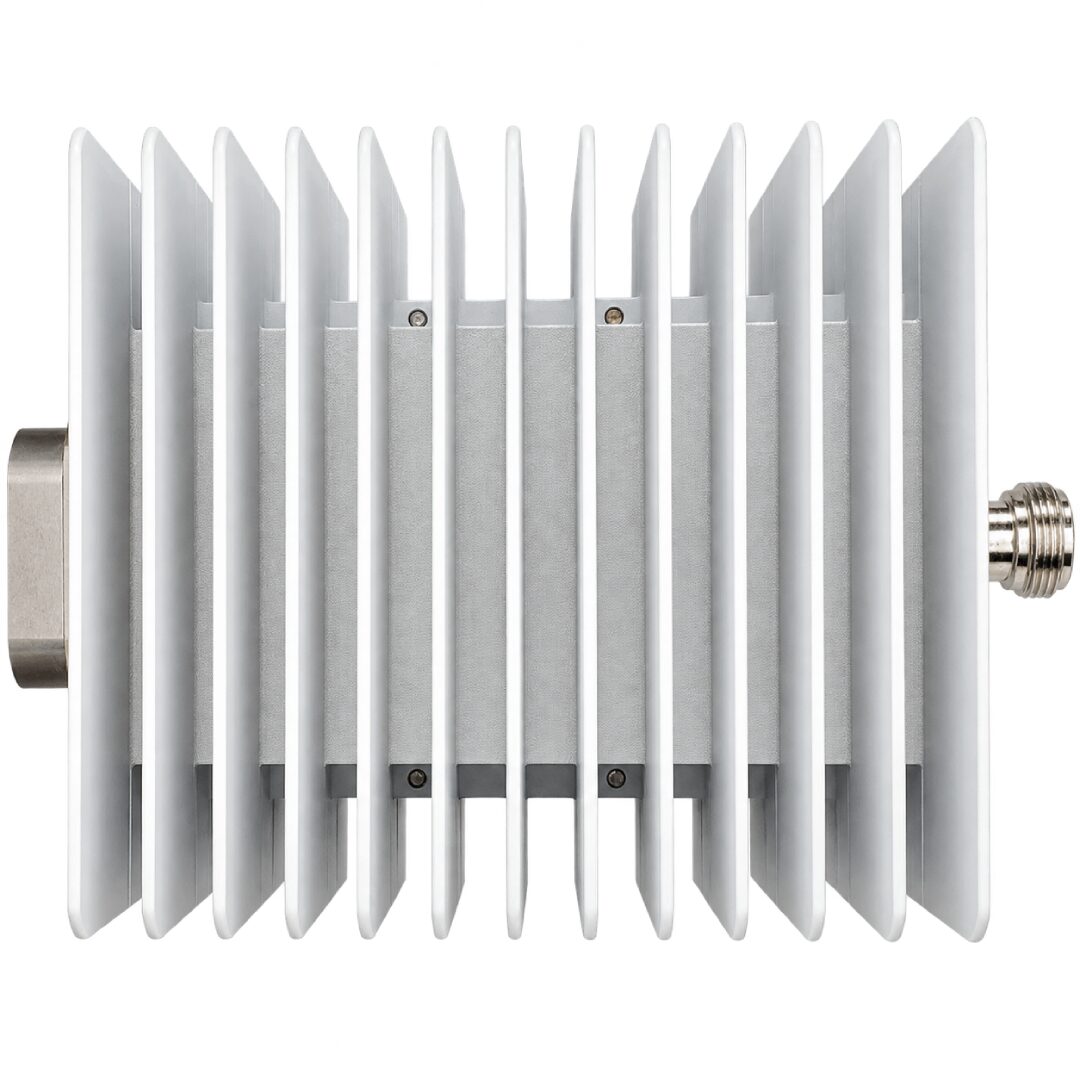

The BUC-Ku02-8.8 v2.0 converts IF (950-1950 MHz) to Ku-band RF (9.75-10.75 GHz) using its stable 8.8 GHz PLL LO, ensuring compatibility with DVB-S/S2 modulators and transceivers.
-
ALC-based automatic output control
Provides a 25 dB dynamic range to stabilize output power at 2 W, protecting system components from overload in multicarrier applications.
-
Stable frequency operation with PLL LO + 10 MHz reference
Guarantees long-term reliability in professional satellite uplink environments requiring minimal drift.
-
High-linearity amplification and RF filtering
Delivers clean, low-distortion output suitable for advanced DVB-S2 modulations like 32APSK and 256QAM.
-
Optimized for DVB-S/S2 Ku-band deployments
Seamlessly integrates into repeater stations, MVDS networks and DSNG systems requiring higher output levels.
🧩 Applications
A reliable 2 W Ku-band BUC for professional VSAT hubs and mobile DSNG vehicles.
-
MVDS broadcasting networks
Supports multichannel terrestrial distribution with stable and clean transmission.
-
TV repeater and headend systems
Ensures consistent DVB-S/S2 signal conversion with precise ALC performance.
-
Mobile broadcast units and live production uplinks
With its IP65 design and reinforced housing, it is ideal for portable broadcast terminals.
-
OEM and system integration
Compact form factor and high gain make it suitable for integration into modular uplink solutions.
Built to withstand extreme climates, maritime uplinks and desert installations.
-
Teleport and broadcast stations with PBR120 flange
Ensures seamless hardware integration into high-power transmission chains.
-
System engineers requiring LED indication or optional IP control
Provides smart diagnostics and remote monitoring capabilities for advanced broadcast infrastructures.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the BUC-Ku02-8.8 v2.0, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment. The BUC-Ku02-8.8 v2.0 is available to customize its parameters by order.
