Customized Ku-band BUC
3 easy steps to obtain special development from our company:
1. Click button “request/сustomized”.
2. Fill needed parameters.
3. Wait for our reply.
P.S. We will reply you as soon as possible after query processing in accordance to our business hours.
BUC-Ku02-10.6 v2.0
BUC-Ku02-10.6-v2.0 is block up-converter with fixed output power P1dB 2 W (ALC power: 200 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
IP Ctrl (by order)
+ LED status indication at the rear side.

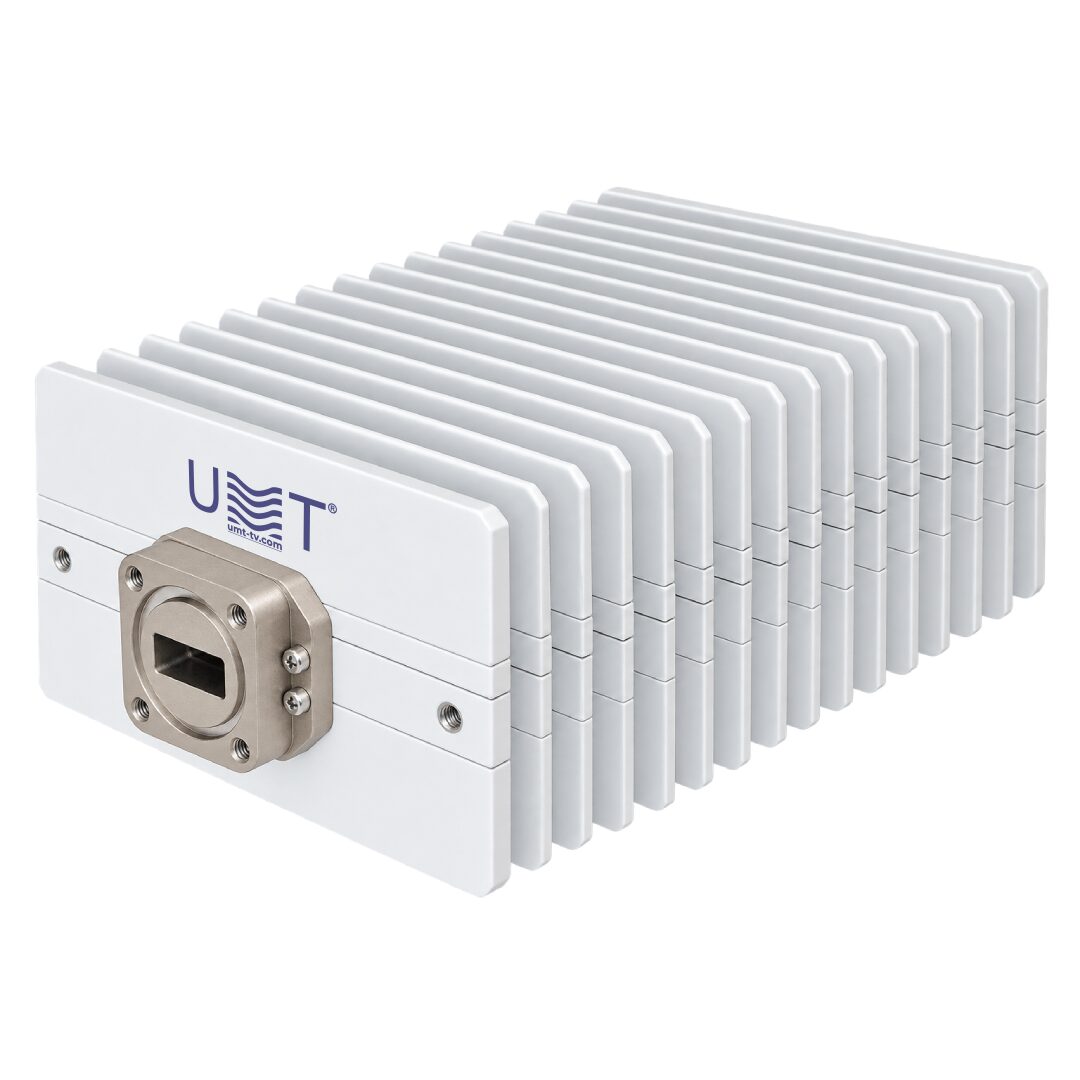

BUC-Ku20-10.6 v2
BUC-Ku20-10.6 v2 is block up-converter with fixed output power P1dB 20 W (ALC power: 2000 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
+ IP Ctrl (by order)
+ LED status indication at the rear side.

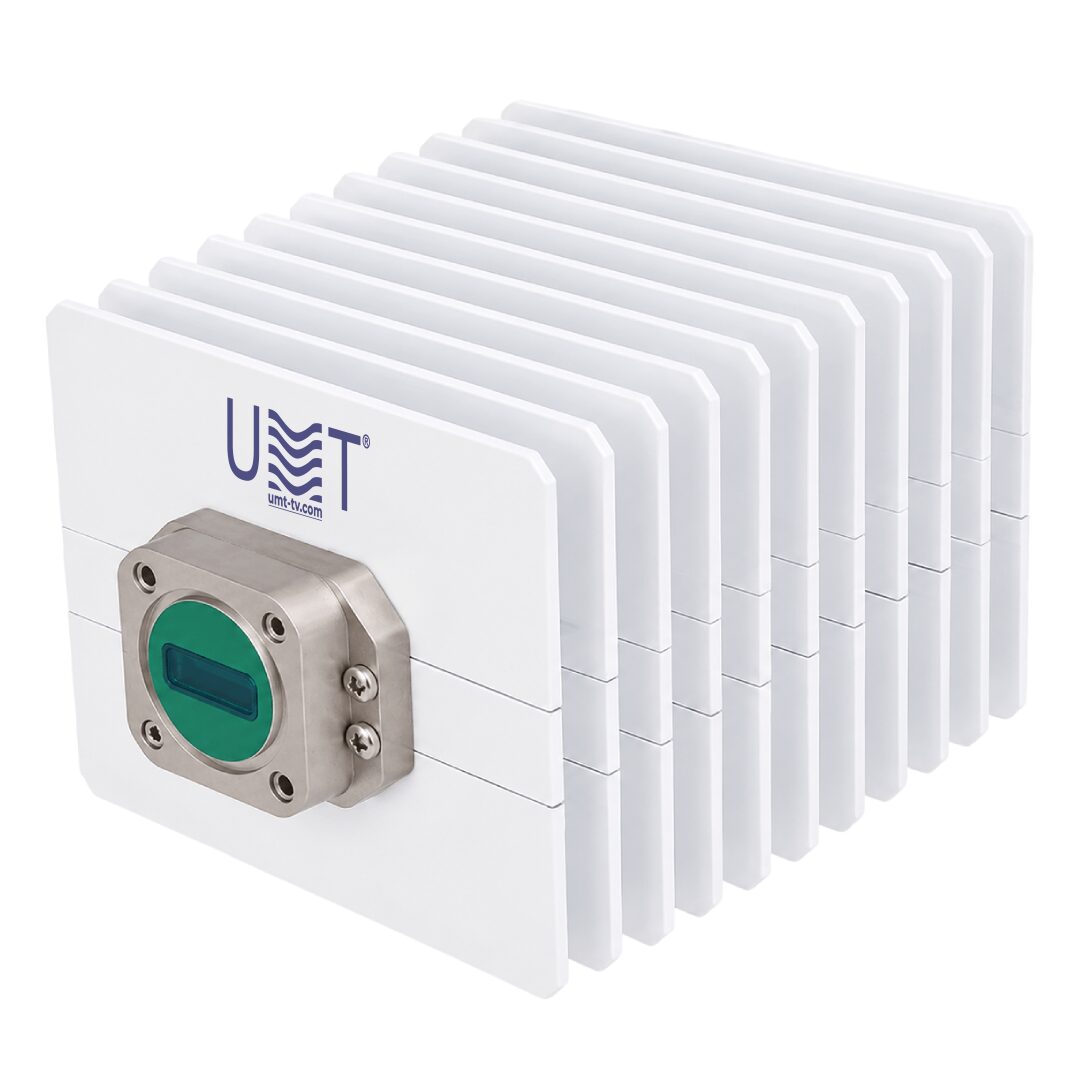

BUC-Ku04-10.6 v2
BUC-Ku04-10.6 v2 is block up-converter with fixed output power P1dB 4 W (ALC power: 400 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
IP Ctrl (by order)
+ LED status indication at the rear side.

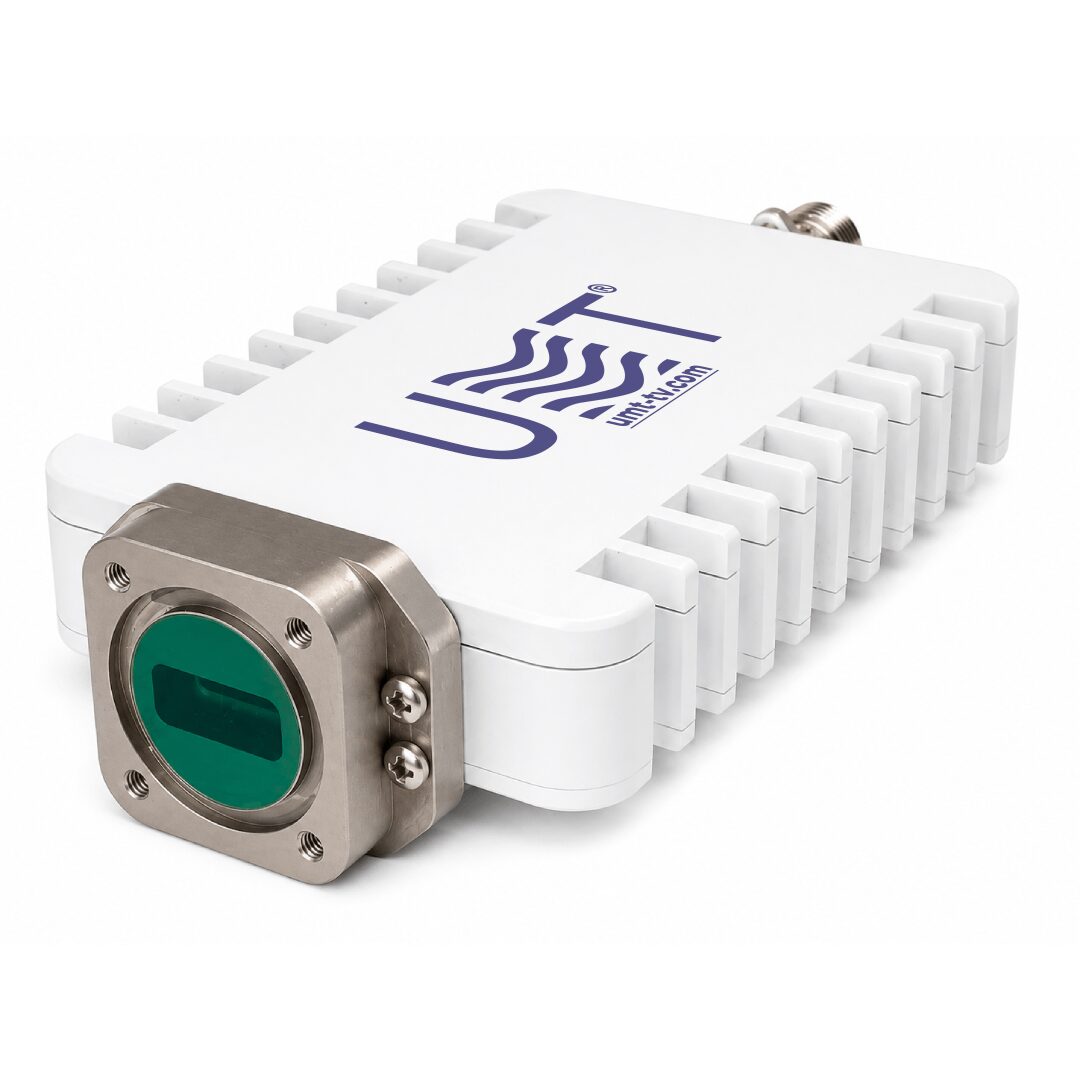

BUC-Ku01-10.6 v2.0
BUC-Ku01-10.6 v2 is block up-converter with fixed output power P1dB 1 W (ALC power: 100 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
has ALC with 25 dB range;
IP Ctrl (by order)
+ LED status indication at the rear side.
BUC-Ku002-10.6 v2.0
BUC-Ku002-10.6 v2 is block up-converter with fixed output power P1dB 0.2 W (ALC power: 30 mW) and LO of 10.6GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
has ALC with 25 dB range;
IP Ctrl (by order)
+ LED status indication at the rear side.
BUC-Ku20-10.6 v1.5
BUC-Ku20-10.6-v1.5 is block up-converter with fixed output power P1dB 20 W (ALC power: 2000 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
+ LED status indication at the rear side.
BUC-Ku20-10.6
BUC-Ku20-10.6 is block up-converter with fixed output power P1dB 20 W (ALC power: 2000 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
+ LED status indication at the rear side.
BUC-Ku10-10.6
BUC-Ku10-10.6 is block up-converter with fixed output power P1dB 10 W (ALC power: 1000 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
IP Ctrl (by order)
+ LED status indication at the rear side.
BUC-Ku04-10.6
BUC-Ku04-10.6 is block up-converter with fixed output power P1dB 4 W (ALC power: 400 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
+ LED status indication at the rear side.
BUC-Ku02-10.6
BUC-Ku02-10.6 is block up-converter with fixed output power P1dB 2 W (ALC power: 200 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
and ALC with 25 dB range;
+ LED status indication at the rear side.
BUC-Ku01-10.6
BUC-Ku01-10.6 is block up-converter with fixed output power P1dB 1 W (ALC power: 100 mW) and LO of 10.6 GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
has ALC with 25 dB range;
+ LED status indication at the rear side.
BUC-Ku002-10.6
BUC-Ku002-10.6 is block up-converter with fixed output power P1dB 0.2 W (ALC power: 30 mW) and LO of 10.6GHz.
Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;
has ALC with 25 dB range;
+ LED status indication at the rear side.
