0.2 W Ku-band block up-converter with LO of 10.6 GHz BUC-Ku002-10.6 v2 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2 or DVB-C standards (use “Customized” button to choose needed parameters) and operates with up to 25 carriers. BUC-Ku002-10.6 v2 has output flange of PBR120 type and can be used with regular radio-relay link (directional) or broadcast (sector and OMNI) antennas. BUC-Ku002-10.6 v2 supports all modulation types up to 32APSK and 256QAM (you may choose the modulation type while filling the “customized equipment” form). BUC-Ku002-10.6 v2 has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation, therefore the local oscillator of BUC-Ku002-10.6 v2 is locked by PLL with internal frequency reference). BUC-Ku002-10.6 v2 provides 11.55 – 12.55 GHz output frequency range (bandwidth in Ku-band) for 950-1950 MHz input frequency range (bandwidth in L-band).
The BUC-Ku002-10.6 v2.0 is a professional-grade DVB-S/S2 Ku-band Block Upconverter (BUC) built for MVDS broadcasting systems, TV repeater stations, VSAT uplinks and DSNG vehicles. With its 10.6 GHz PLL-locked LO and integrated 10 MHz reference, this solid-state Ku-band BUC transmitter provides excellent stability and spectral purity for modern DVB-S2 broadcasting chains.

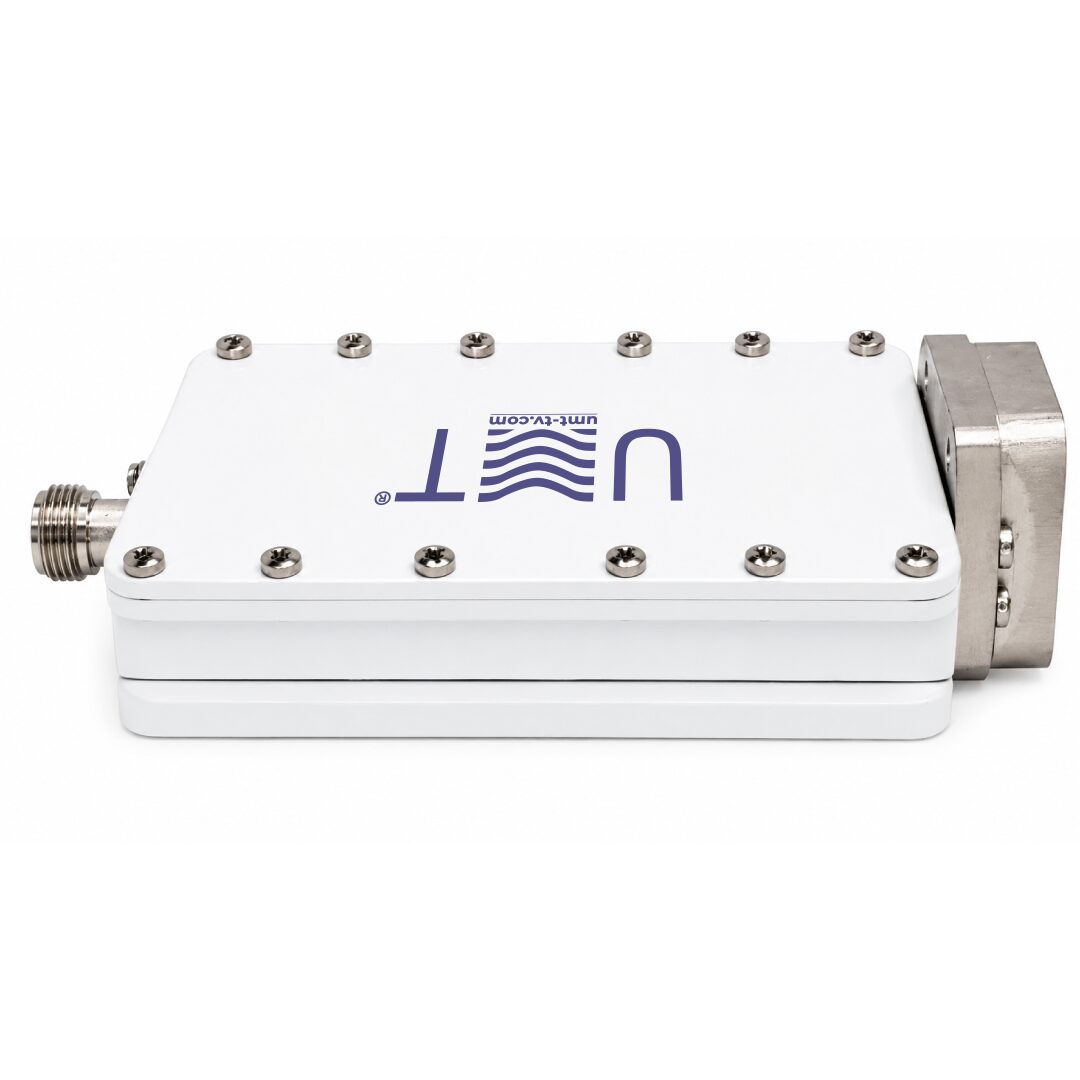

The BUC-Ku002-10.6 v2.0 delivers a minimum 0.2 W output power @P1dB with ≥45 dB gain. Its ALC (25 dB range, 30 mW at ALC level) ensures constant output levels for multicarrier Ku-band BUC operation (up to 25 carriers). With low phase noise (−80 dBc/Hz @1 kHz, −85 dBc/Hz @10 kHz, −100 dBc/Hz @100 kHz) and low IMD3, the BUC-Ku002-10.6 v2.0 supports complex modulations like DVB-S2 256QAM and 32APSK.
✅ Engineered for outdoor use

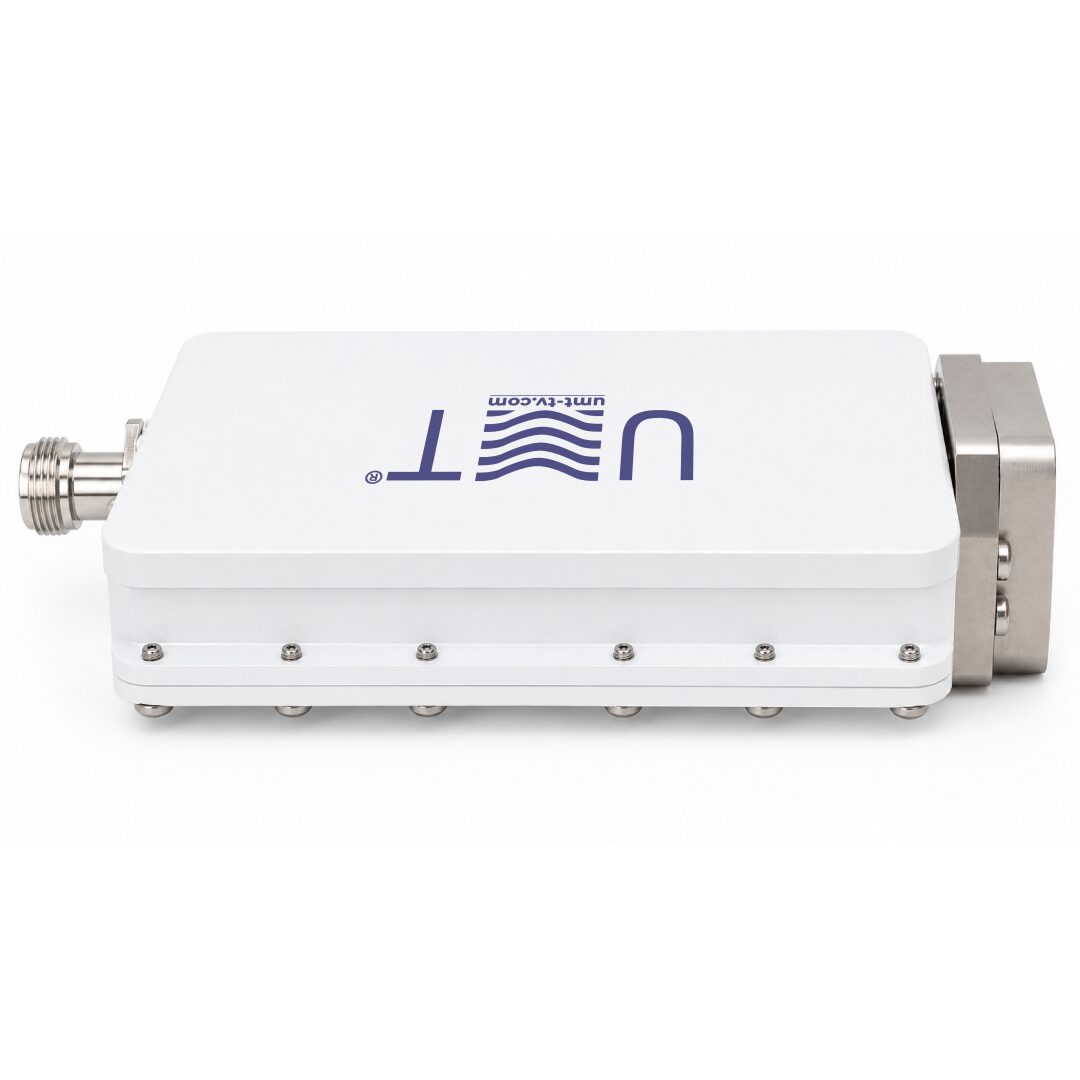

The BUC-Ku002-10.6 v2.0 is housed in an IP65 weatherproof enclosure, making it a reliable Ku-band outdoor BUC for harsh conditions. With a WR75 PBR120 flange output and 50 Ω N-type Female IF input, it is optimized for integration in satellite uplink BUC systems and TV repeater networks.
✅ Designed for efficiency
At only 0.55 kg and consuming ≤6 W, the Compact Ku-band BUC-Ku002-10.6 v2.0 is lightweight and energy-efficient, ideal for mobile broadcast units and space-limited installations.
🛠️ Whether you need a Ku-band Block Upconverter for MVDS, a Ku-band BUC with 10 MHz reference, or a Ku-band BUC with LED status indication and IP remote control (by order), the BUC-Ku002-10.6 v2.0 is a robust, high-linearity and ready for integration solution.
🛒 The BUC-Ku002-10.6 v2.0 is available by order and available for purchase. You can buy now, request quote, get pricing, or shop online depending on your procurement flow.
📌 Key features
-
Compact Ku-band BUC-Ku002-10.6 v2.0 with solid-state design
Lightweight (~0.55 kg), ≤6 W power draw and IP65 housing make the BUC-Ku002-10.6 v2.0 a reliable outdoor-ready solid-state Ku-band BUC.
-

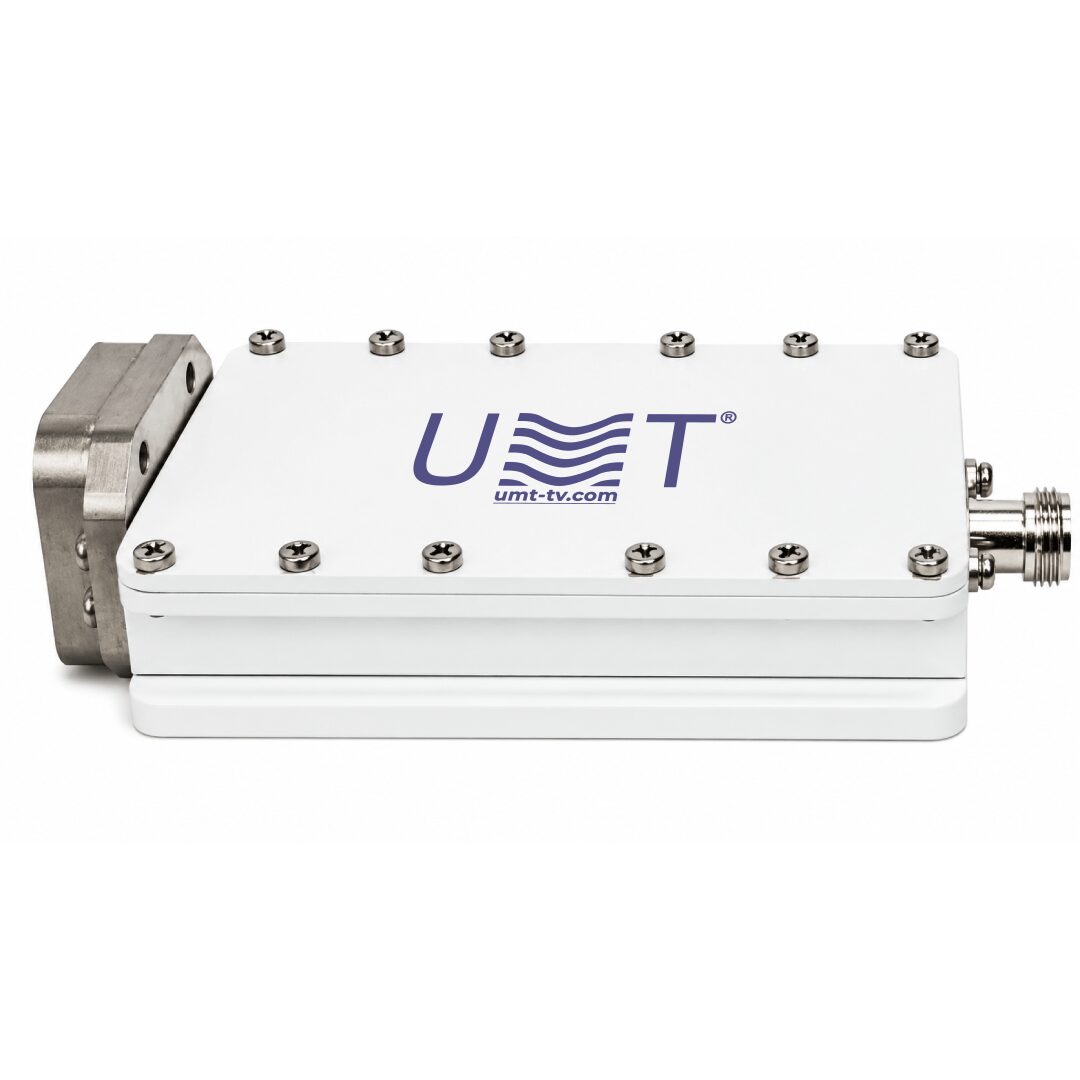

Fixed 10.6 GHz PLL LO with ±2 ppm stability
The BUC-Ku002-10.6 v2.0 with PLL LO 10.6 GHz ensures stable conversion and low phase noise (−85 dBc/Hz @10 kHz) for professional DVB-S2 Ku-band BUC systems.
-
0.2 W P1dB output with ALC 25 dB
The BUC-Ku002-10.6 v2.0 with 0.2W P1dB output delivers consistent RF power, with automatic level control to manage up to 25 carriers in multicarrier Ku-band uplinks.
-

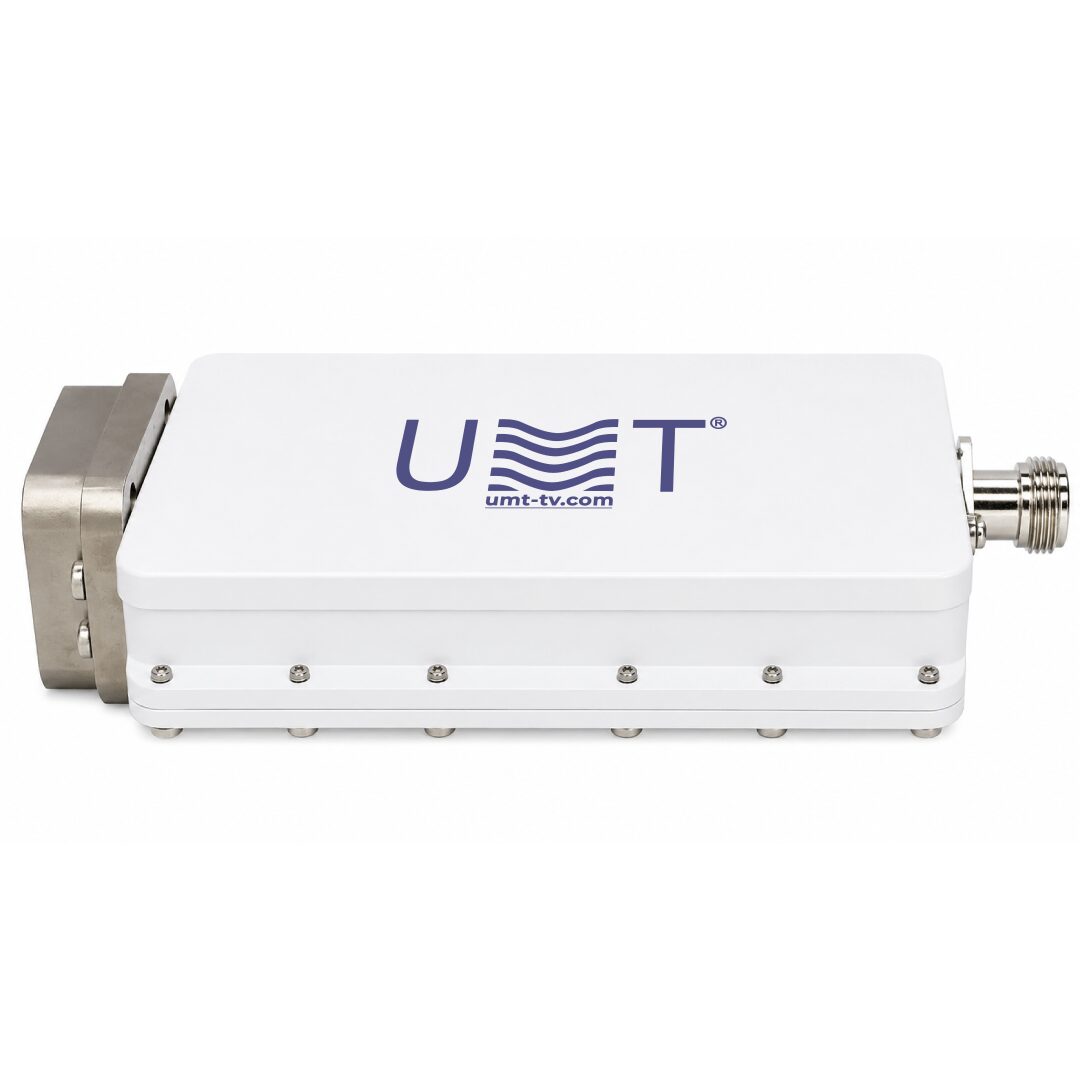

Integrated 10 MHz reference oscillator
No external reference is required – the BUC-Ku002-10.6 v2.0 with 10 MHz reference simplifies synchronization in Ku-band BUC integration projects.
-

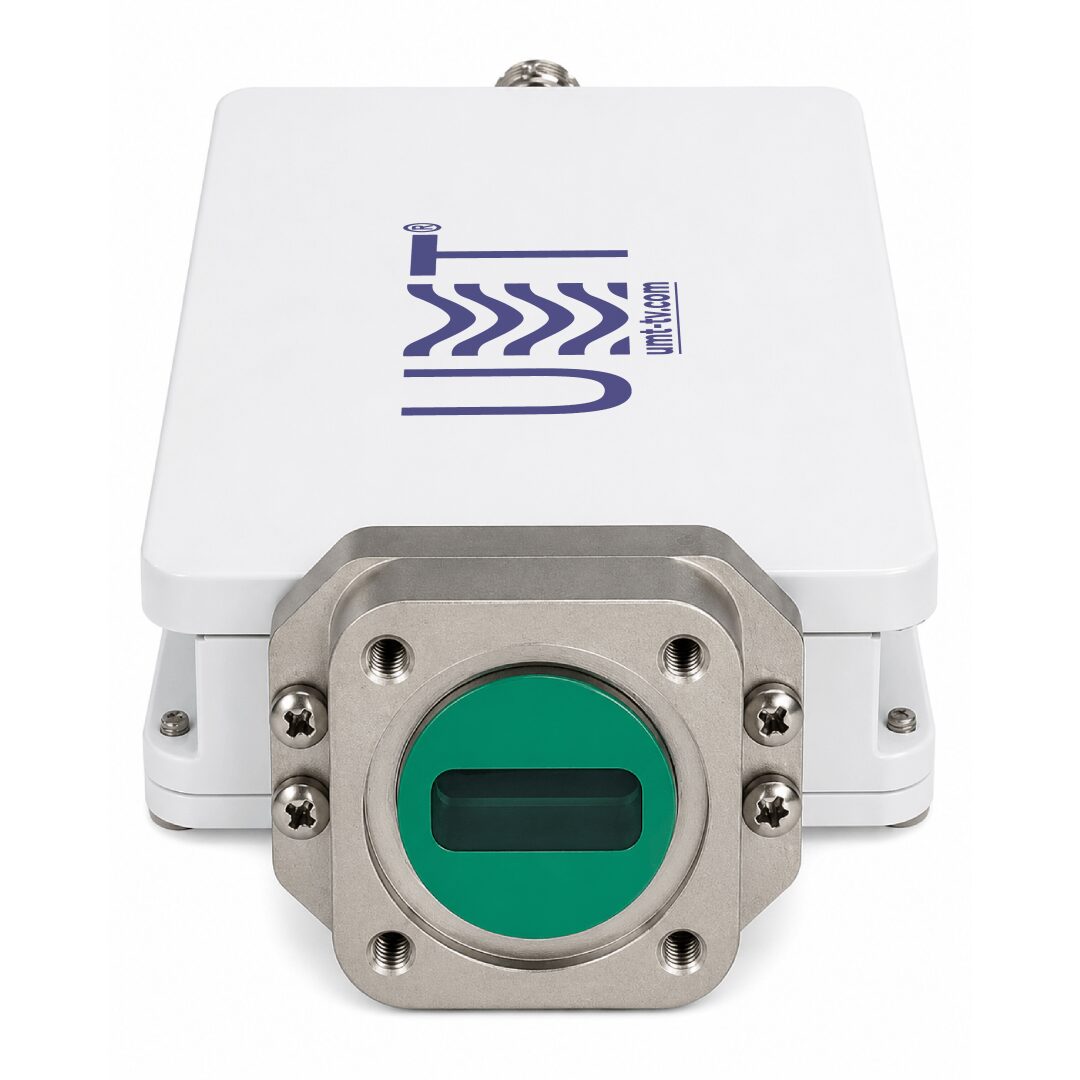

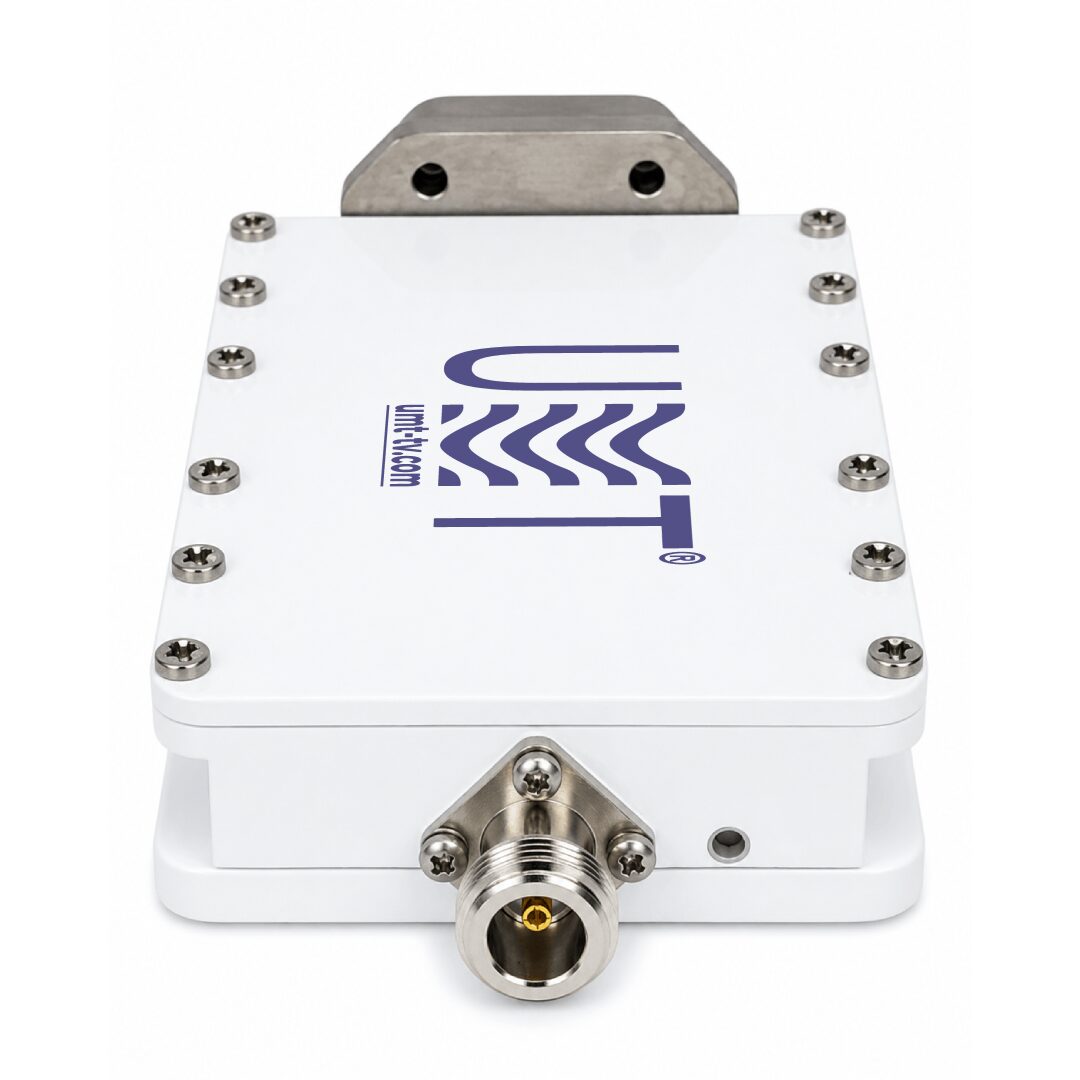

WR75 PBR120 flange output and N-type IF input
The BUC-Ku002-10.6 v2.0 with WR75 flange and N-type IF (950-1950 MHz) offers easy mechanical and RF compatibility with existing TV repeater station equipment.
-
Spectral purity and linearity
The BUC-Ku002-10.6 v2.0 maintains spurious ≤−55 dBc and image rejection ≥60 dB, making it a high-linearity Ku-band BUC for DVB-S2 256QAM/32APSK.
⚙️ Main functions
-
IF to Ku-band upconversion with BUC-Ku002-10.6 v2.0

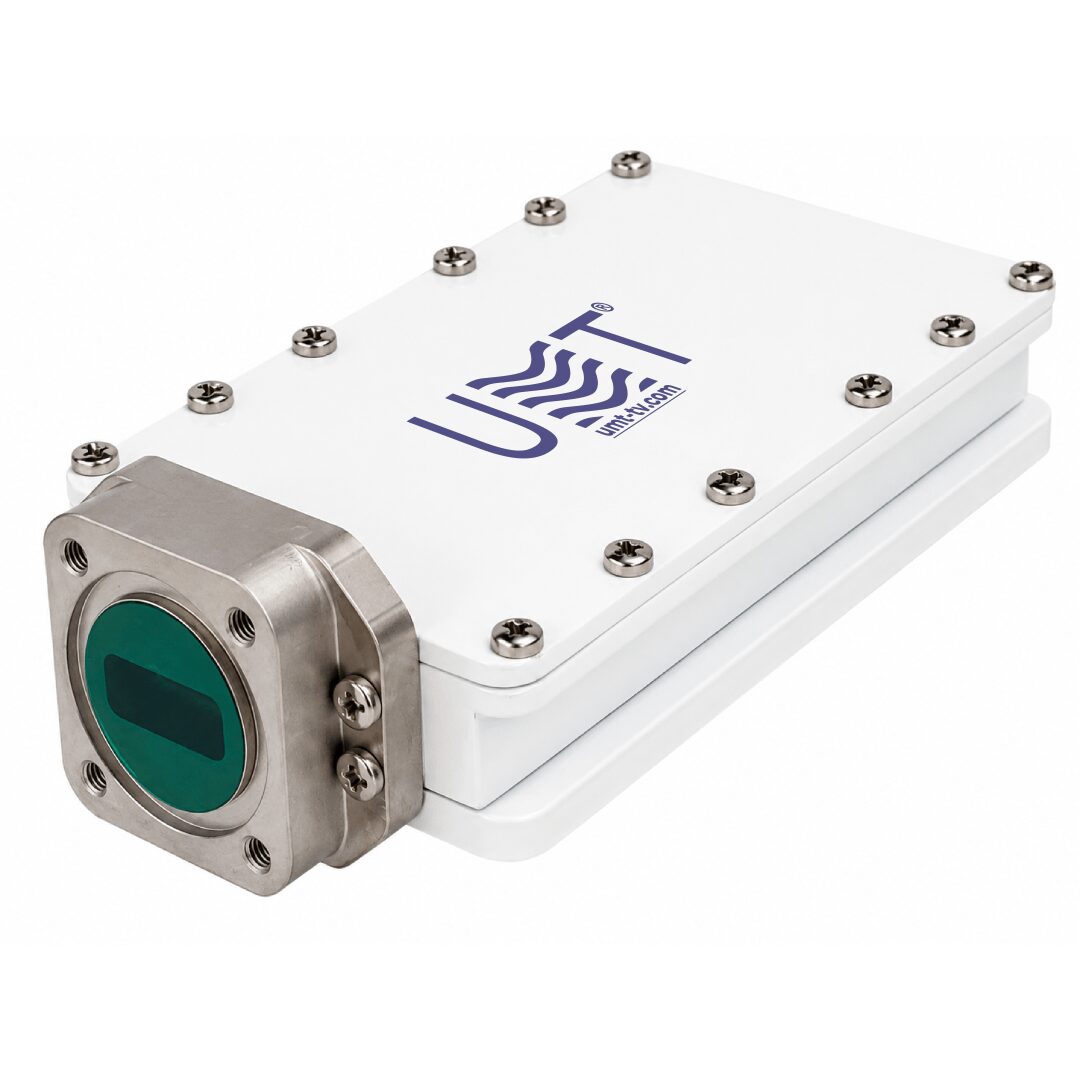

Converts 950-1950 MHz L-band input to 11.55-12.55 GHz Ku-band output with high accuracy.
-
ALC-based power stabilization
The BUC-Ku002-10.6 v2.0 with automatic output control ensures stable RF performance under varying IF inputs.
-
Stable operation with PLL LO and 10 MHz reference
Internal reference provides high-stability Ku-band BUC performance without need for external synchronization.
-
Filtering and solid-state amplification
The BUC-Ku002-10.6 v2.0 with SSPA stage delivers linear amplification, low IMD and minimal spurious emissions.
-
Easy integration into DVB-S/S2 broadcast chains
The BUC-Ku002-10.6 v2.0 fits seamlessly into VSAT uplink, DSNG, MVDS transmission and TV repeater systems.
🧩 Applications
-
VSAT and DSNG uplinks with BUC-Ku002-10.6 v2.0
Low-power VSAT BUC and DSNG transmitter optimized for compact and mobile platforms.
-
MVDS block upconverter deployments
The BUC-Ku002-10.6 v2.0 functions as a MVDS Ku-band Block Upconverter with high linearity for terrestrial broadcasting.
-
TV repeater and headend integration
A stable Ku-band BUC for TV repeater stations supporting ALC and multi-carrier DVB-S2 operation.
-
Broadcast vans and mobile units
The BUC-Ku002-10.6 v2.0 fits easily into mobile broadcast units, offering reliable contribution links.
Compact size and WR75/N-type interfaces make the BUC-Ku002-10.6 v2.0 ideal for OEM broadcast assemblies.
-
Harsh environment deployments
An IP65 weatherproof Ku-band BUC for extreme climates – desert, maritime, mountain or remote sites.
