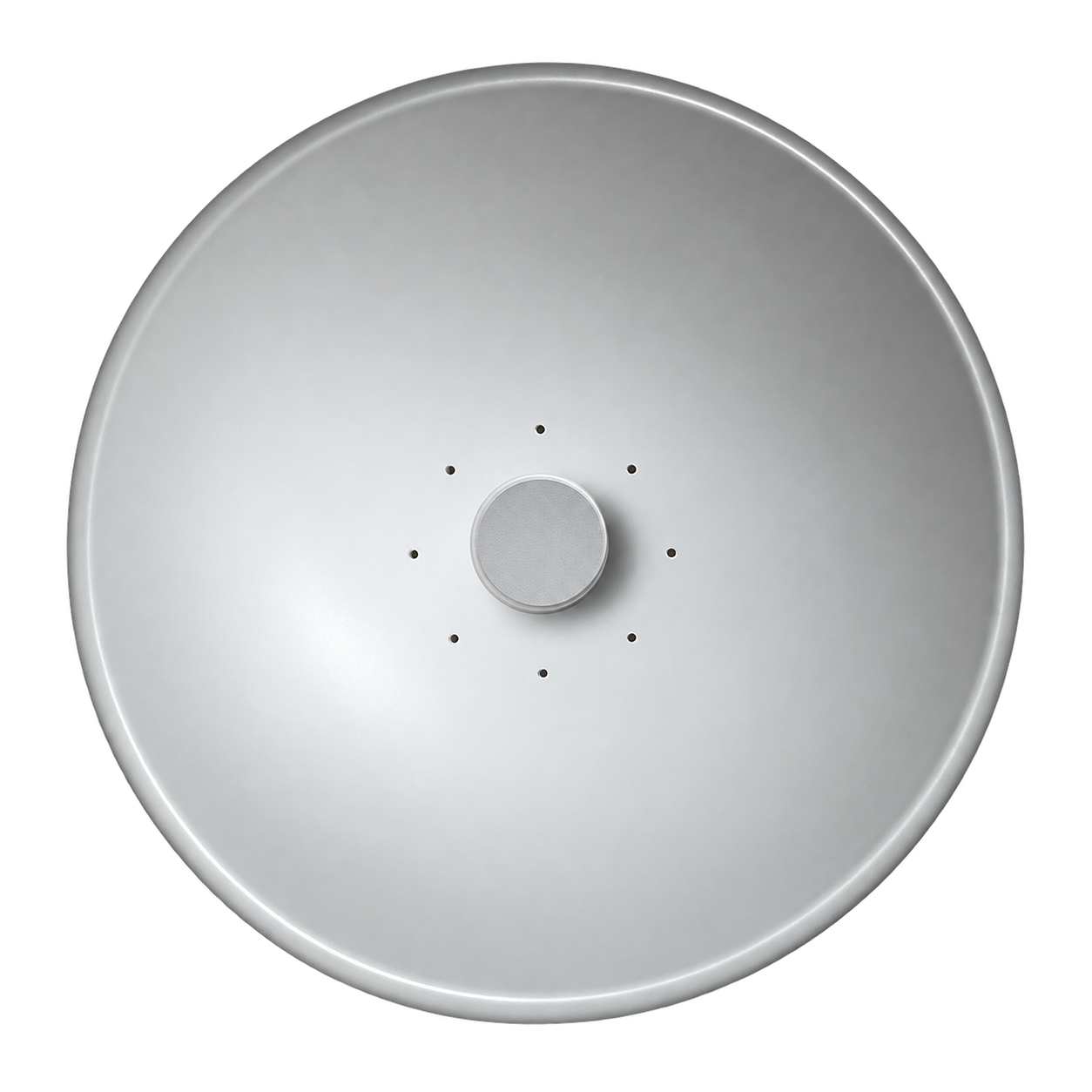

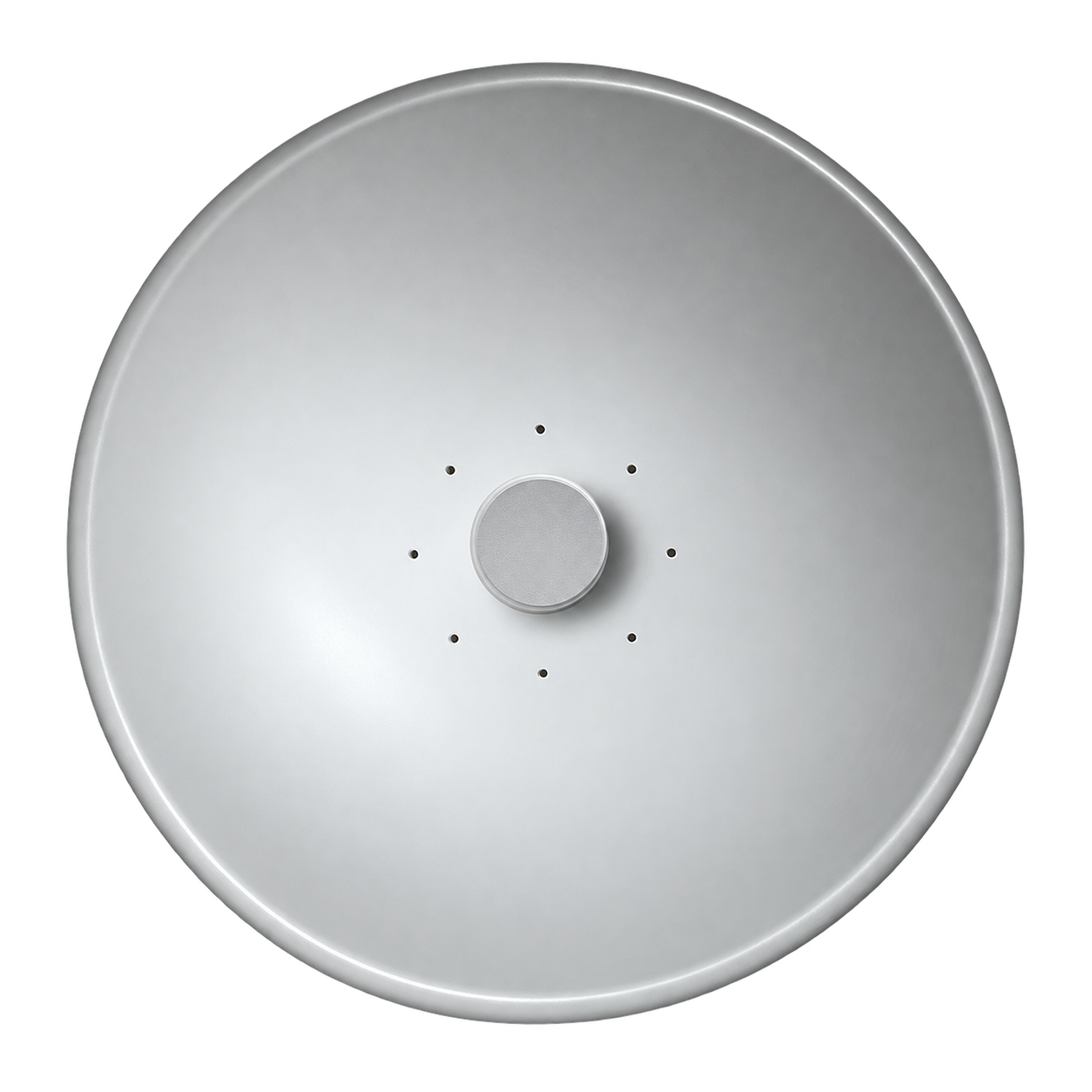

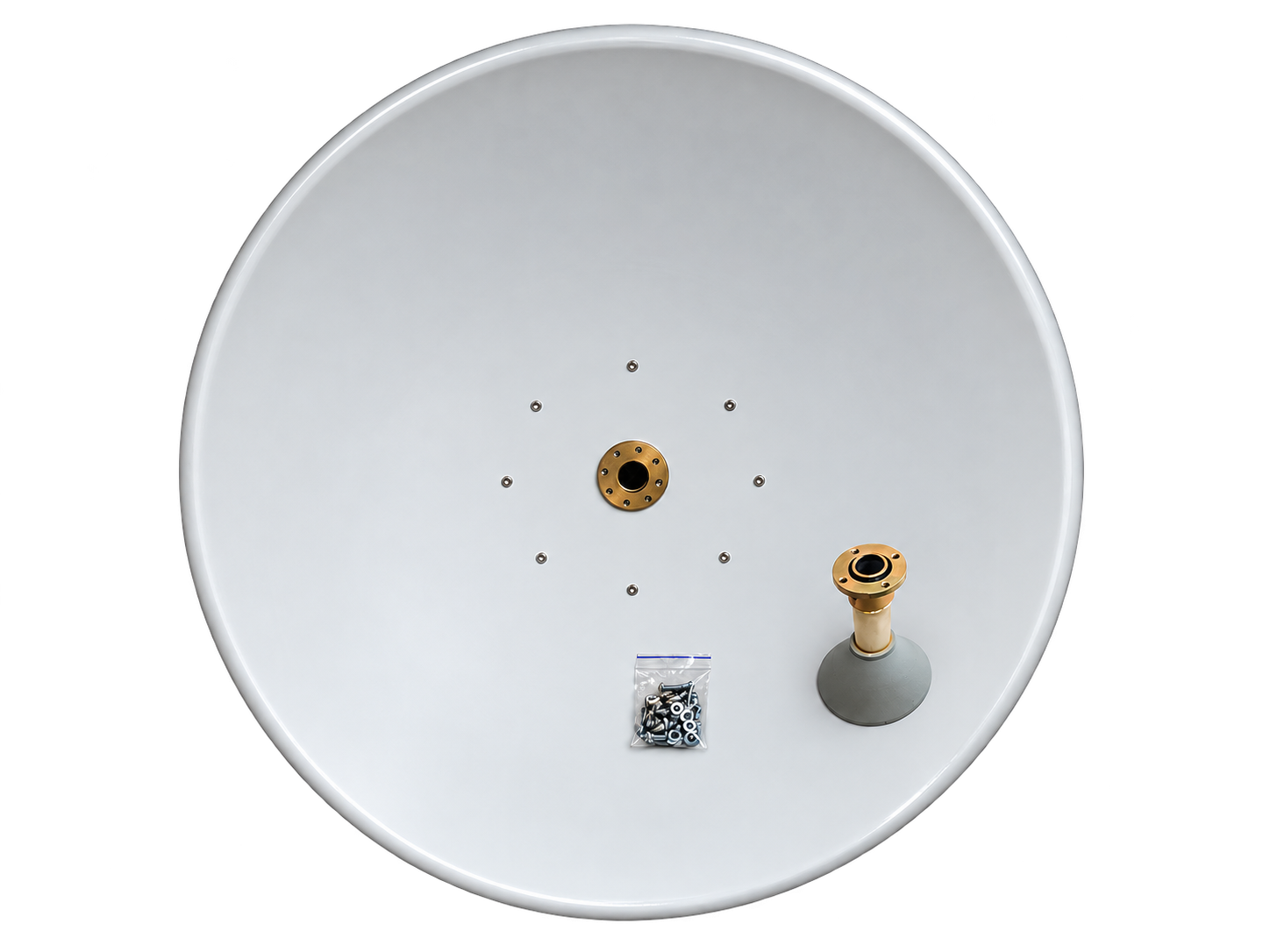

DRA-K06 is K-band double reflector antenna (Cassegrain antenna) designed for transmitting radio relay stations (RRS), MVDS / MMDS broadcasting systems. Antenna is performed as a single block with flange for transmitter or receiver connecting. Using one or several radio relay links allows to transfer the broadcast signal from/to remote TV (cable) operators or from/to remote head-end without wires. Thus, the current transmission method is especially useful in difficult terrain in the service area where cable laying is impossible.

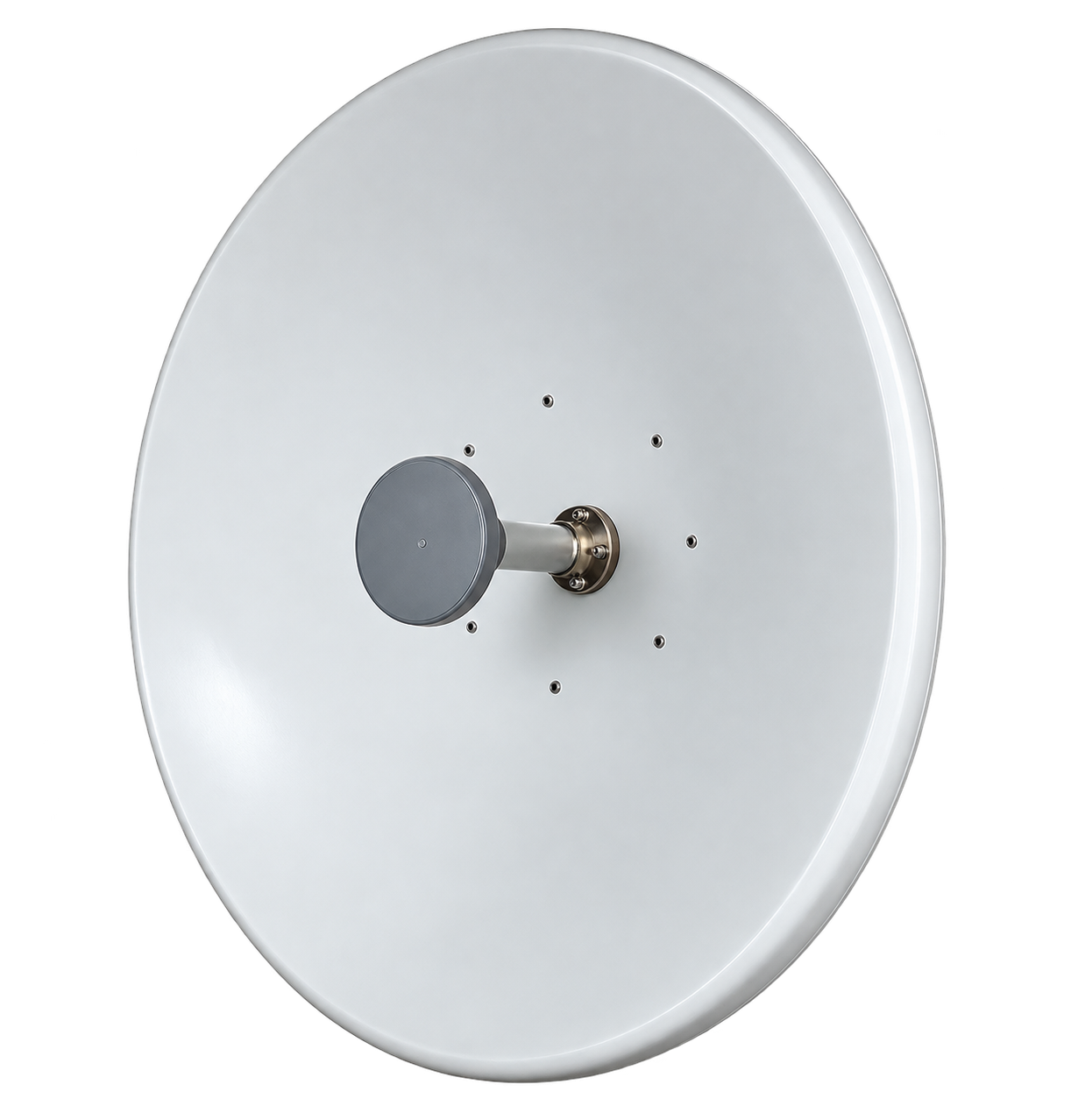

DRA-K06 K-band double reflector directional antenna is a high-performance Cassegrain antenna designed for MVDS/MMDS broadcasting systems and radio relay stations. Covering the 18-22 GHz frequency range, it delivers up to 41 dBi gain, precise 3° beamwidth and excellent cross-polarization isolation of 25 dB, ensuring stable long-range signal transmission.
Constructed as a single block with WR-42 or PBR220 waveguide flange, the DRA-K06 integrates easily with professional transmitters and receivers. It supports both linear and circular polarization, enabling flexibility for diverse broadcasting and microwave infrastructures.

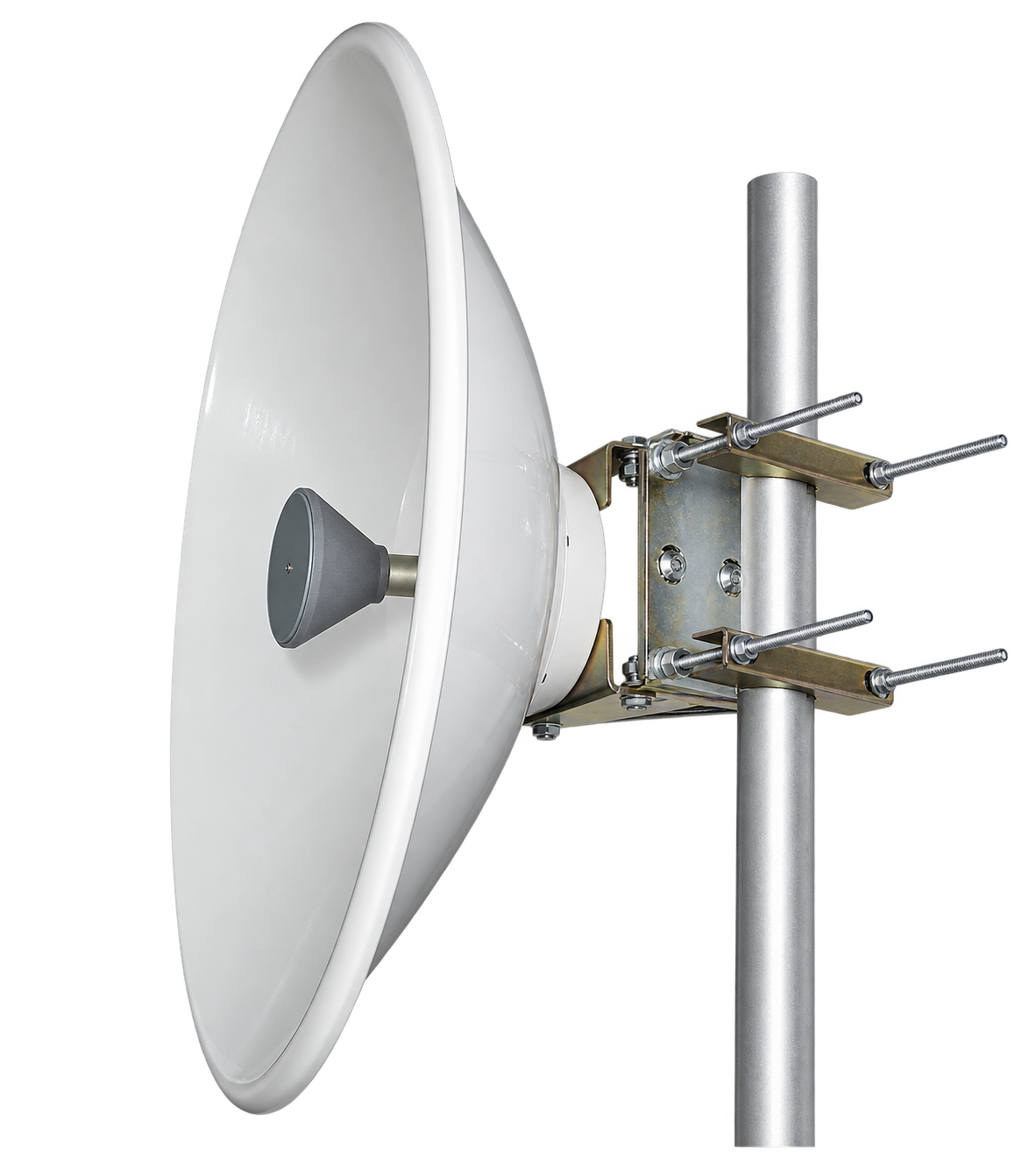

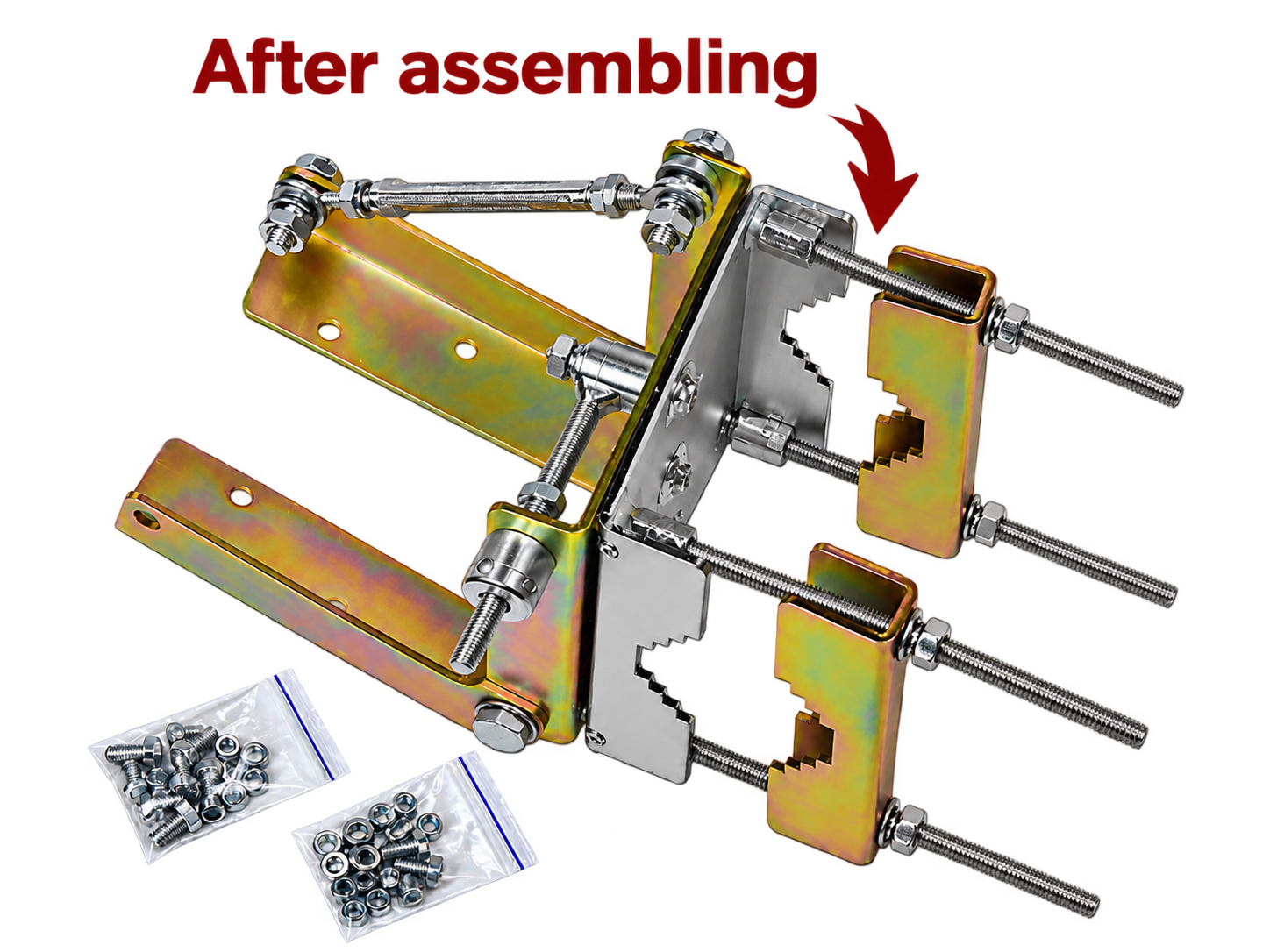

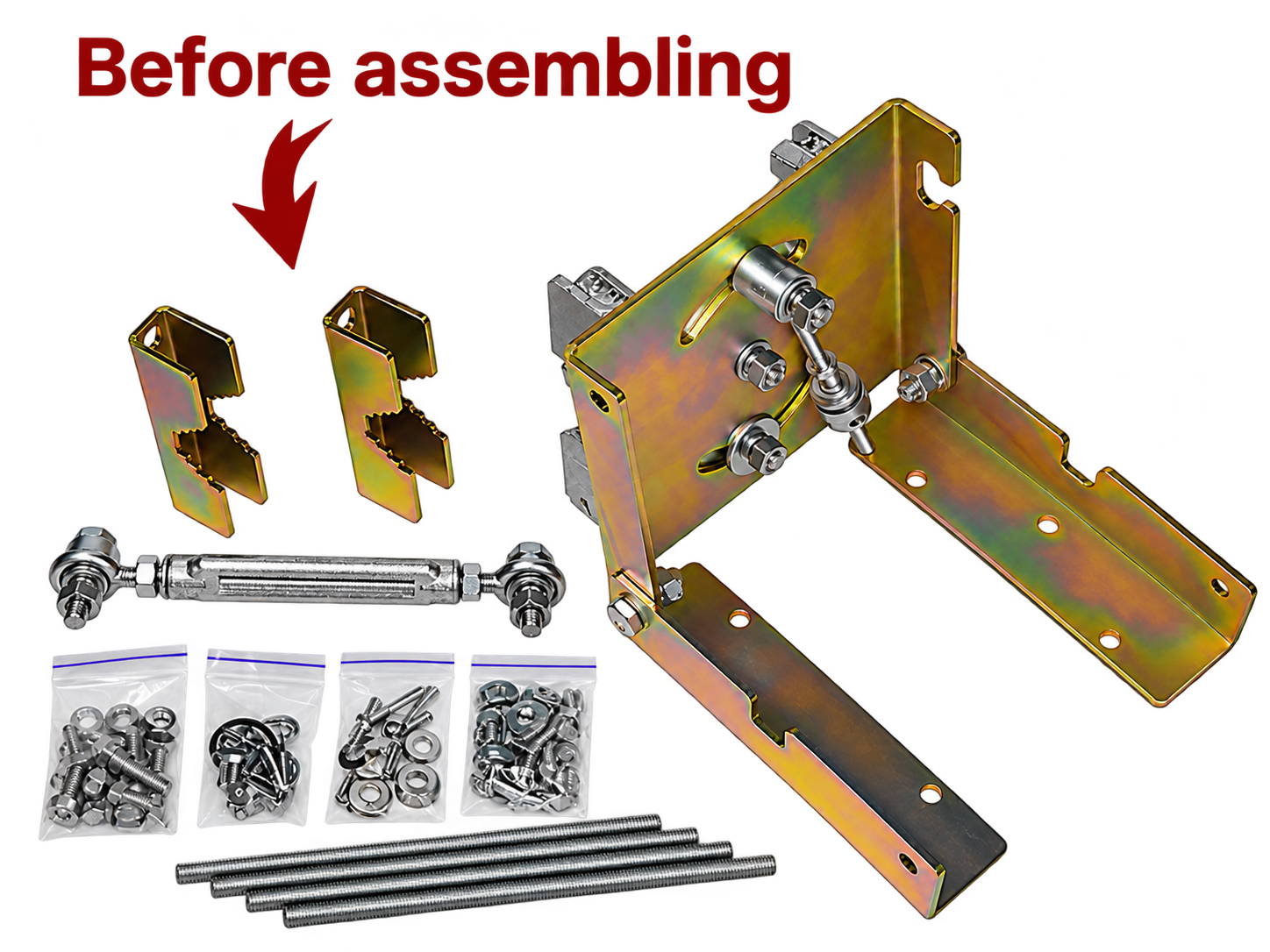

Thanks to its rugged outdoor casing with canvas protection, the DRA-K06 withstands harsh climates (-50 °C to +80 °C, 100% humidity). With its lightweight 5.8 kg design and pipe-mount installation (50-100 mm), it is a cost-effective and compact solution for professional directional antenna applications where cable laying is not feasible.
✅ 38-41 dBi high gain
The DRA-K06 high gain directional antenna delivers reliable 38-41 dBi performance. This ensures stable transmission across K-band broadcasting networks and radio relay stations.
✅ 3° beamwidth
With precise 3° beams in both planes, the DRA-K06 is a narrow beam directional antenna for efficient long-distance coverage. It reduces interference and improves point-to-point communication links.
✅ Linear and circular polarization options
The DRA-K06 supports both linear polarization directional antenna and circular polarization directional antenna modes. This versatility allows seamless integration into DVB-S2 systems, satellite uplinks and microwave infrastructures.
✅ Compact weatherproof design
The DRA-K06 is a compact outdoor directional antenna with rugged canvas casing. It withstands harsh environments, making it a durable directional antenna for professional broadcasting.
🛠️ Whether you require a 38-41 dBi high gain directional antenna, a K-band double reflector antenna with 3° beamwidth, or a durable outdoor directional antenna for broadcasting networks, the DRA-K06 provides reliable performance and easy integration.
🛒 The DRA-K06 is available to order now – ready for deployment in head-end stations, repeater hubs, microwave systems and DVB infrastructures.
📌 Key features
-
Wide frequency range 18-22 GHz
The DRA-K06 operates across the complete K-band frequency range, supporting professional broadcasting infrastructures and microwave systems. This wide coverage ensures seamless integration into MVDS/MMDS broadcasting networks and long-distance radio relay stations.
With its high gain directional antenna design, the DRA-K06 provides stable long-range performance for demanding communication links. The 38-41 dBi gain allows efficient signal transmission and reception across professional DVB-S2 infrastructures and microwave broadcasting hubs.
The precise 3° beamwidth in both planes enables the DRA-K06 to function as a narrow beam directional antenna with reduced interference. This sharp radiation pattern ensures reliable point-to-point links and efficient directional broadcasting.
-
Cassegrain double reflector design
The double reflector antenna design enhances efficiency and minimizes side-lobe interference. Thanks to this advanced Cassegrain directional antenna configuration, the DRA-K06 provides stable coverage in professional broadcasting networks.
-
Cross-polarization isolation ≥25 dB
The DRA-K06 offers excellent cross-polarization isolation, protecting signals from interference in dense environments. This feature makes it ideal for use in interactive microwave systems and high-capacity DVB broadcasting.
Engineered as a low VSWR directional antenna, the DRA-K06 ensures efficient energy transfer and minimal reflection losses. This improves signal stability in professional DVB networks and microwave infrastructures.
With its lightweight design and canvas-covered casing, the DRA-K06 is a compact outdoor directional antenna for harsh climates. It maintains performance under full humidity and extreme temperatures, ensuring reliable operation for telecom and broadcasting hubs.
-
Professional waveguide interface
The DRA-K06 supports WR-42 and PBR220 waveguide connections, making it a directional antenna with waveguide input for professional integration. This ensures compatibility with a wide range of DVB, microwave and satellite systems.
⚙️ Main functions
-
Transmission of K-band signals
The DRA-K06 provides efficient K-band signal transmission, enabling stable long-range broadcasting. Its high gain and narrow beamwidth ensure reliable performance for MVDS/MMDS infrastructures and radio relay stations.
-
Reception of K-band signals
This antenna is optimized for K-band signal reception in professional DVB and microwave systems. It guarantees clean and stable operation in head-end stations and subscriber equipment.
-
Broadcasting head-end integration
The DRA-K06 integrates seamlessly into broadcasting head-end infrastructures, enabling efficient upstream and downstream communication. Its Cassegrain double reflector design enhances reliability in professional DVB networks.
-
Repeater station deployment
As a directional antenna for repeater hubs, the DRA-K06 retransmits signals effectively across complex terrains. It provides a cost-efficient alternative to cable-based systems in challenging environments.
-
Interactive microwave systems
The DRA-K06 supports interactive microwave infrastructures, enabling stable two-way communication. This makes it a suitable directional antenna for wireless broadcasting systems and telecom hubs.
-
MVDS/MMDS broadcasting networks
Widely used in MVDS/MMDS infrastructures, the DRA-K06 ensures strong signal transmission and reception. It serves as a high gain K-band directional antenna for long-range professional broadcasting.
-
Point-to-point communication links
With its narrow 3° beamwidth, the DRA-K06 delivers precise point-to-point directional antenna performance. It ensures stable and interference-free long-distance connectivity.
The DRA-K06 enhances telecommunication infrastructures, providing stable broadcasting and signal relay. It supports reliable operation for professional microwave communication systems.
-
Outdoor broadcasting infrastructures
Built as a durable outdoor directional antenna, the DRA-K06 withstands extreme climates and full humidity. This guarantees long-term stability for permanent outdoor installations.
-
Flexible system integration
With WR-42 and PBR220 interfaces, the DRA-K06 adapts to a wide range of broadcasting networks. It functions as a directional antenna with waveguide input, ensuring professional-grade integration.
🧩 Applications
-
K-band broadcasting networks
The DRA-K06 serves as a high gain K-band directional antenna, ensuring reliable DVB broadcasting performance. It supports long-distance coverage for professional broadcasting infrastructures.
-
MVDS/MMDS infrastructures
This antenna is widely deployed in MVDS/MMDS broadcasting systems, ensuring efficient signal distribution. Its design guarantees stability for both uplinks and downlinks.
-
Repeater stations and relay hubs
The DRA-K06 is an efficient directional antenna for radio relay stations, retransmitting signals across wide territories. It ensures reliable performance even in areas with complex terrain.
-
Broadcasting head-end stations
As a professional directional antenna for head-end systems, the DRA-K06 guarantees efficient communication links. It supports stable DVB-S2 integration for broadcasting operators.
-
Interactive microwave communication systems
The DRA-K06 integrates into interactive microwave infrastructures, enabling effective two-way transmission. This ensures seamless connectivity for professional broadcasting networks.
-
Point-to-point communication links
Thanks to its 3° beamwidth, the DRA-K06 functions as a narrow beam directional antenna for long-range links. It minimizes interference while maximizing transmission efficiency.
-
Public broadcasting infrastructures
The antenna supports public broadcasting systems, ensuring reliable regional and national DVB coverage. It provides stable signal delivery for professional networks.
-
Outdoor telecom installations
Built as a rugged outdoor directional antenna, the DRA-K06 withstands extreme weather and humidity. It ensures long-lasting performance for telecom hubs and repeater sites.
-
Professional DVB networks
The DRA-K06 is fully compatible with DVB-S2, DVB-T2 and DVB-C infrastructures, making it a versatile directional antenna for broadcasting networks.
