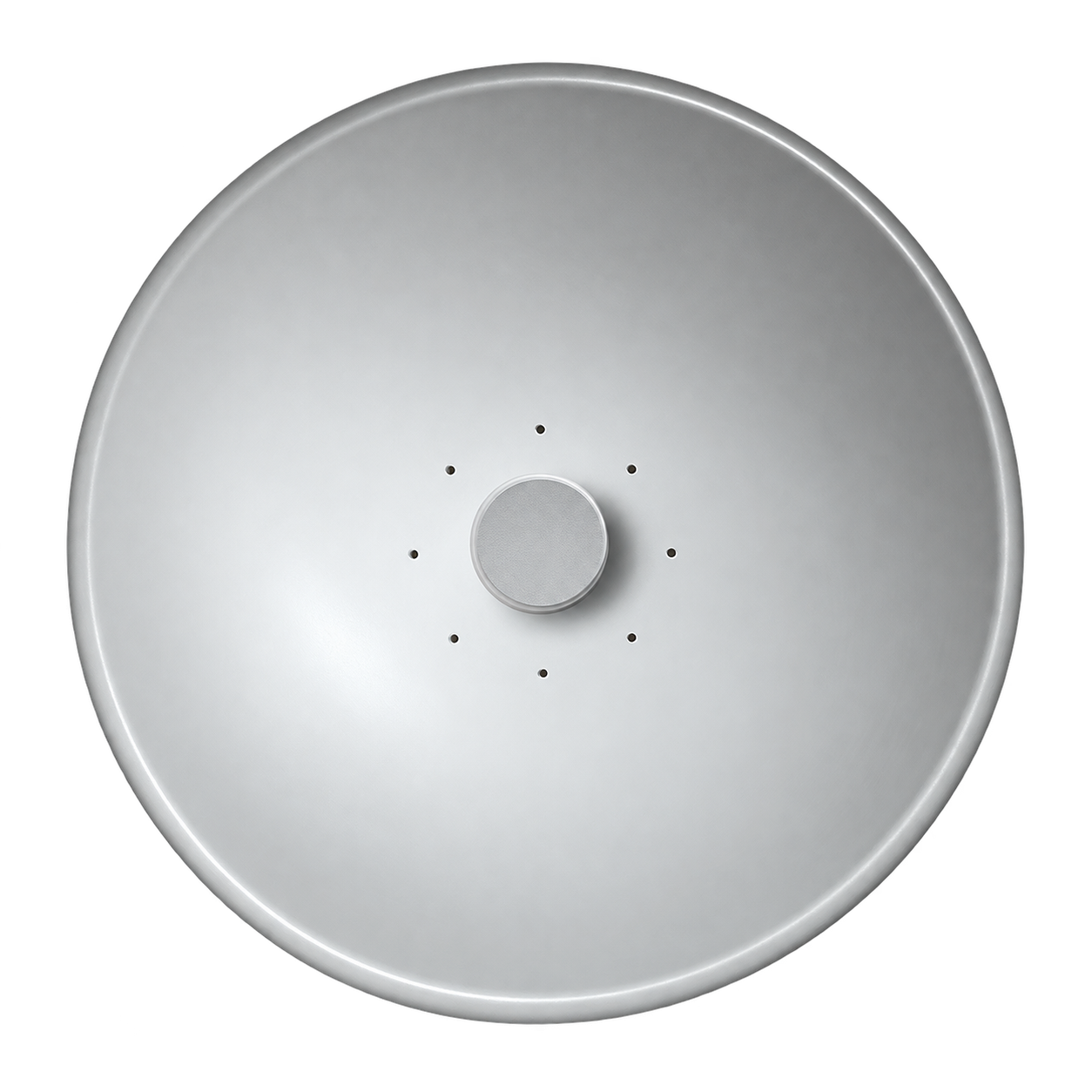

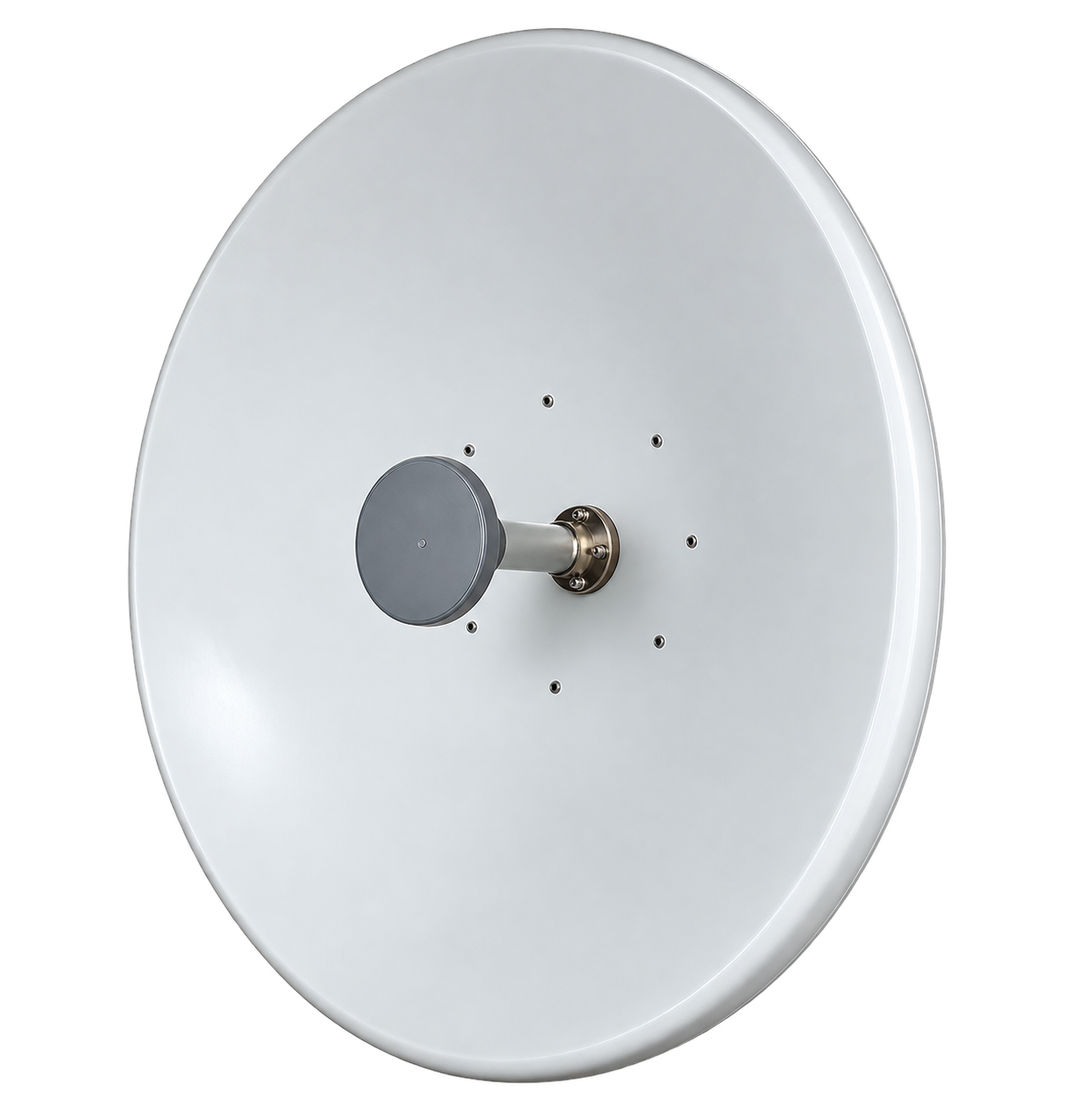

DRA-Ku06 is Ku-band double reflector antenna (Cassegrain antenna) designed for transmitting radio relay stations (RRS), MVDS / MMDS broadcasting systems. Antenna is performed as a single block with flange for transmitter or receiver connecting. Using one or several radio relay links allows to transfer the broadcast signal from/to remote TV (cable) operators or from/to remote head-end without wires. Thus, the current transmission method is especially useful in difficult terrain in the service area where cable laying is impossible.
DRA-Ku06 Ku-band double reflector directional antenna is a Cassegrain antenna designed for MVDS/MMDS broadcasting infrastructures and radio relay stations. Operating within the 10-15 GHz frequency range, it provides 33 dBi gain, a narrow 3° beamwidth and excellent cross-polarization isolation of 25 dB, ensuring clean, stable and reliable signal transmission.

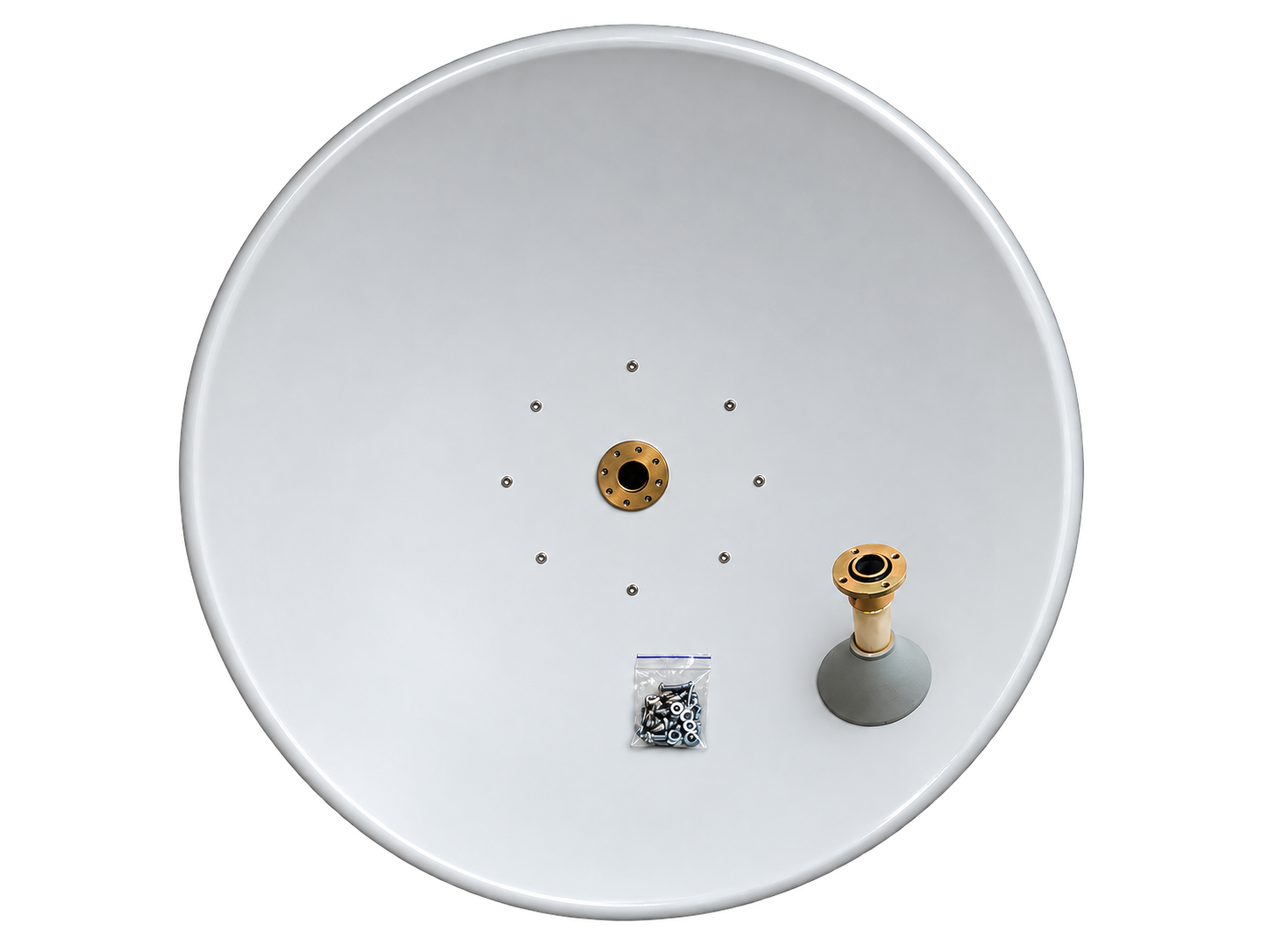

Manufactured as a single block with WR-75 or C-120 flange interface, the DRA-Ku06 easily connects with transmitters and receivers. Supporting both linear and circular polarization, it adapts to various broadcasting standards and is suitable for DVB-S2 networks, microwave communication hubs and satellite uplinks.

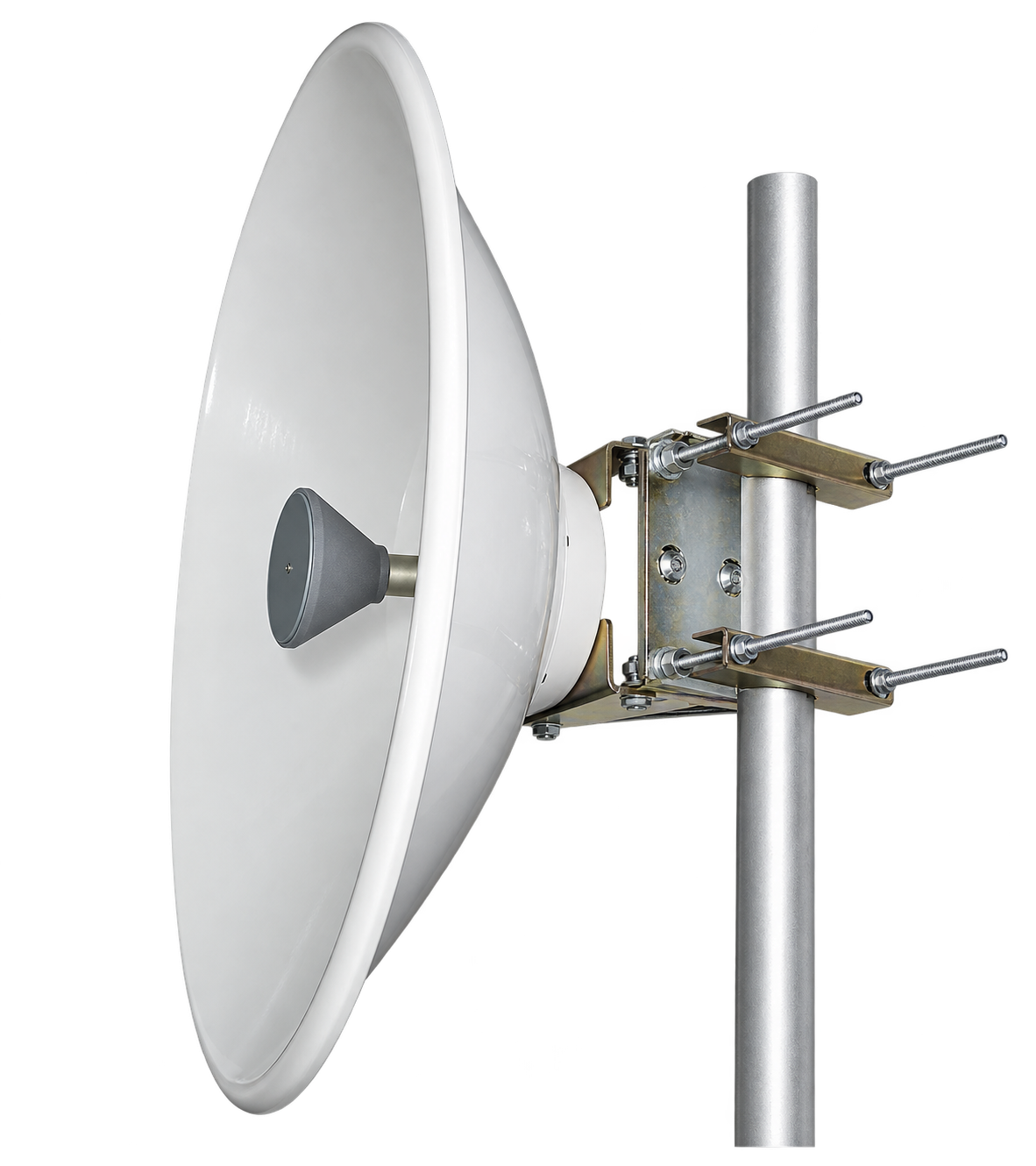

The antenna is built with a rugged canvas casing that withstands extreme weather conditions (-50 °C to +80 °C, 100% humidity). With its compact design, 5.8 kg weight and pipe-mount installation (50-100 mm), the DRA-Ku06 is a cost-effective outdoor directional antenna for regions where cable laying is impractical.
✅ 33 dBi high gain
The DRA-Ku06 provides high gain directional antenna performance with 33 dBi, ensuring stable long-range broadcasting. It is suitable for Ku-band DVB infrastructures and professional relay stations.
✅ 3° beamwidth
With a precise 3° beamwidth, the DRA-Ku06 operates as a narrow beam directional antenna. It ensures efficient point-to-point communication while reducing interference in microwave broadcasting systems.
✅ Linear and circular polarization options
Supporting both linear and circular polarization, the DRA-Ku06 is a versatile Ku-band antenna. It integrates seamlessly into DVB-S2 infrastructures, interactive microwave systems and satellite uplinks.
✅ Compact and rugged outdoor design
The canvas-protected casing makes the DRA-Ku06 a durable outdoor directional antenna. Lightweight and compact, it ensures long-term reliability for telecom hubs, repeater stations and DVB broadcasting infrastructures.
🛠️ Whether you require a Ku-band antenna with 33 dBi gain, a narrow beam directional antenna for point-to-point communication, or a durable professional Cassegrain antenna, the DRA-Ku06 delivers reliable long-term performance.
🛒 Available now, the DRA-Ku06 is ready for use in head-end broadcasting stations, repeater hubs, DVB infrastructures and interactive microwave networks.
📌 Key features
-
Wide frequency range 10-15 GHz
The DRA-Ku06 covers the full Ku-band frequency range, ensuring compatibility with modern broadcasting infrastructures. It is suitable for MVDS/MMDS systems, DVB networks and microwave communication links.
With 33 dBi gain, the DRA-Ku06 is a reliable Ku-band directional antenna for professional applications. It ensures strong and stable performance in broadcasting head-end stations and radio relay links.
The antenna’s 3° beamwidth allows precise directional performance with reduced signal loss. It works as a narrow beam directional antenna for point-to-point links in professional DVB infrastructures.
-
Cassegrain double reflector design
The advanced double reflector antenna design improves efficiency and reduces interference. As a Cassegrain directional antenna, the DRA-Ku06 provides consistent performance in professional broadcasting environments.
-
Cross-polarization isolation ≥25 dB
The DRA-Ku06 delivers excellent cross-polarization isolation, reducing interference and improving signal clarity. It is ideal for interactive microwave infrastructures and DVB systems.
The low VSWR design ensures efficient energy transfer and minimal reflection losses. This improves overall reliability in satellite uplinks and DVB-S2 broadcasting infrastructures.
The canvas-covered construction makes the DRA-Ku06 a rugged outdoor directional antenna. It ensures reliable performance even in harsh climates and full humidity.
-
Professional waveguide interface
Equipped with WR-75 or C-120 flanges, the DRA-Ku06 is a directional antenna with waveguide input. It integrates easily into Ku-band DVB infrastructures and microwave communication systems.
⚙️ Main functions
-
Transmission of Ku-band signals
The DRA-Ku06 ensures efficient Ku-band broadcasting transmission, delivering strong long-distance coverage. It is used in professional DVB and MVDS/MMDS infrastructures.
-
Reception of Ku-band signals
The antenna provides stable Ku-band reception, ensuring clean signal quality. It is suitable for DVB-S2 broadcasting hubs and subscriber networks.
-
Broadcasting head-end integration
The DRA-Ku06 is designed for broadcasting head-end stations, ensuring reliable communication links. Its Cassegrain design provides enhanced performance in professional DVB systems.
-
Repeater station deployment
As a directional antenna for repeater hubs, the DRA-Ku06 retransmits signals effectively across complex terrains. It is a cost-effective alternative to cable solutions.
-
Interactive microwave systems
The antenna supports interactive microwave infrastructures, enabling two-way communication. It enhances the performance of professional DVB and telecom networks.
-
MVDS/MMDS broadcasting networks
The DRA-Ku06 is widely used in MVDS/MMDS broadcasting systems, ensuring stable transmission. It works as a high gain Ku-band antenna for long-distance coverage.
-
Point-to-point communication links
With its 3° beamwidth, the DRA-Ku06 is a narrow beam directional antenna for point-to-point systems. It provides efficient and interference-free broadcasting.
The DRA-Ku06 enhances telecommunication hubs, ensuring stable signal distribution. It supports efficient broadcasting in microwave infrastructures.
-
Outdoor broadcasting infrastructures
As a durable outdoor directional antenna, the DRA-Ku06 guarantees stability in extreme climates. It is built for permanent installations in professional DVB networks.
-
Flexible system integration
The DRA-Ku06 supports WR-75 and C-120 interfaces, allowing seamless integration. It is a versatile Ku-band directional antenna for broadcasting and satellite infrastructures.
🧩 Applications
-
Ku-band broadcasting networks
The DRA-Ku06 is a Ku-band directional antenna designed for professional DVB broadcasting. It ensures strong long-distance coverage and reliable performance.
-
MVDS/MMDS infrastructures
The antenna is widely applied in MVDS/MMDS systems, ensuring efficient signal distribution. It supports professional-grade broadcasting networks.
-
Repeater stations and relay hubs
As a radio relay directional antenna, the DRA-Ku06 retransmits signals effectively in challenging terrains. It ensures uninterrupted connectivity.
-
Broadcasting head-end stations
The DRA-Ku06 works as a professional antenna for head-end infrastructures, providing strong upstream and downstream communication.
-
Interactive microwave communication systems
It integrates into interactive microwave infrastructures, enabling reliable two-way broadcasting. This ensures efficiency in professional DVB networks.
-
Point-to-point communication links
Thanks to its 3° beamwidth, the DRA-Ku06 is a narrow beam directional antenna for point-to-point communication. It minimizes interference while maximizing efficiency.
-
Public broadcasting infrastructures
The antenna supports public DVB broadcasting networks, ensuring stable regional and national coverage. It is ideal for professional operators.
-
Outdoor telecom installations
The DRA-Ku06 is a rugged outdoor directional antenna built for challenging climates. It ensures reliable service for telecom hubs and repeater sites.
-
Professional DVB networks
The DRA-Ku06 integrates smoothly into DVB-S2, DVB-T2 and DVB-C networks, ensuring compatibility and reliable performance.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the DRA-Ku06 Ku-band double reflector directional antenna, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.

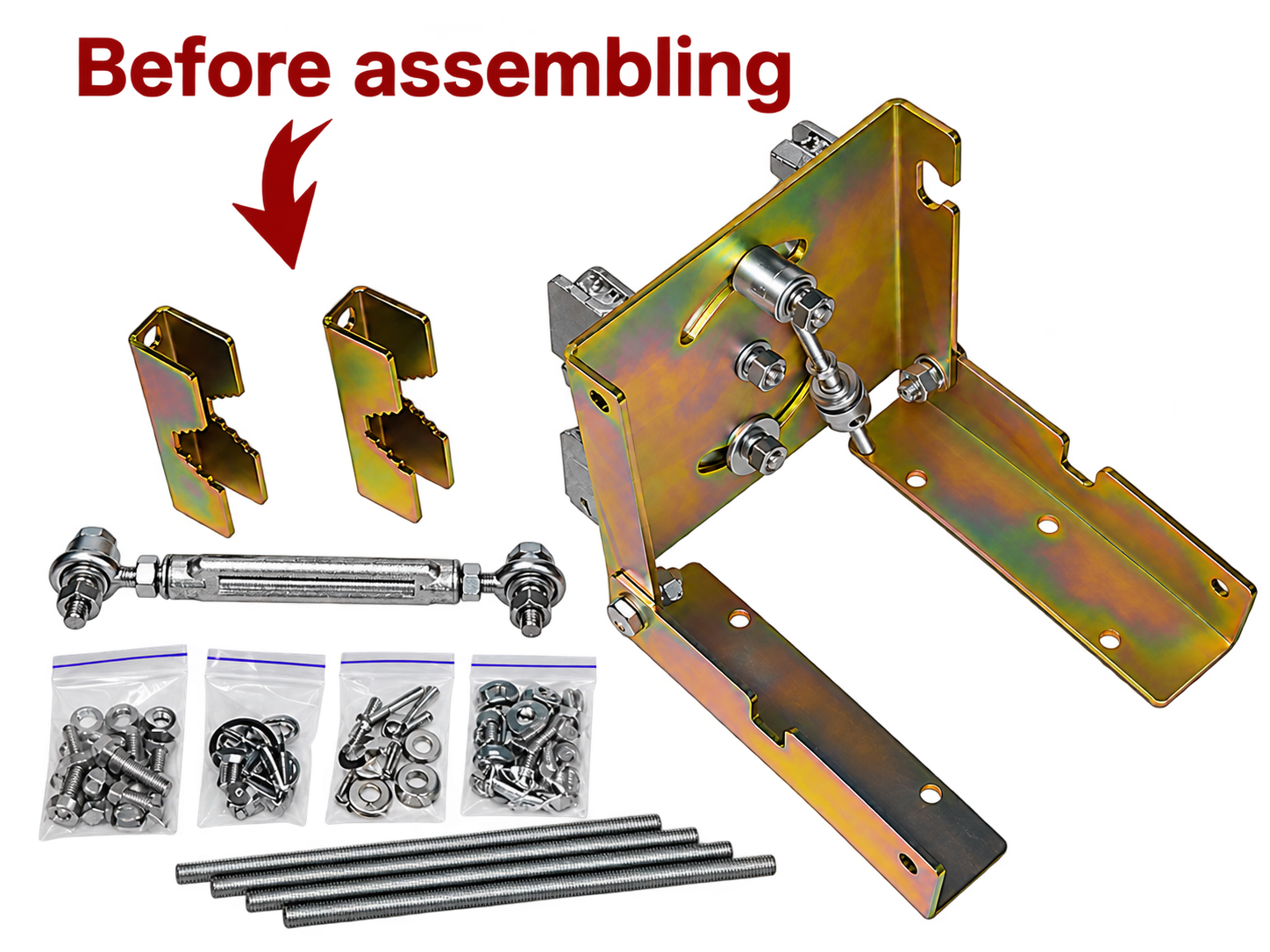

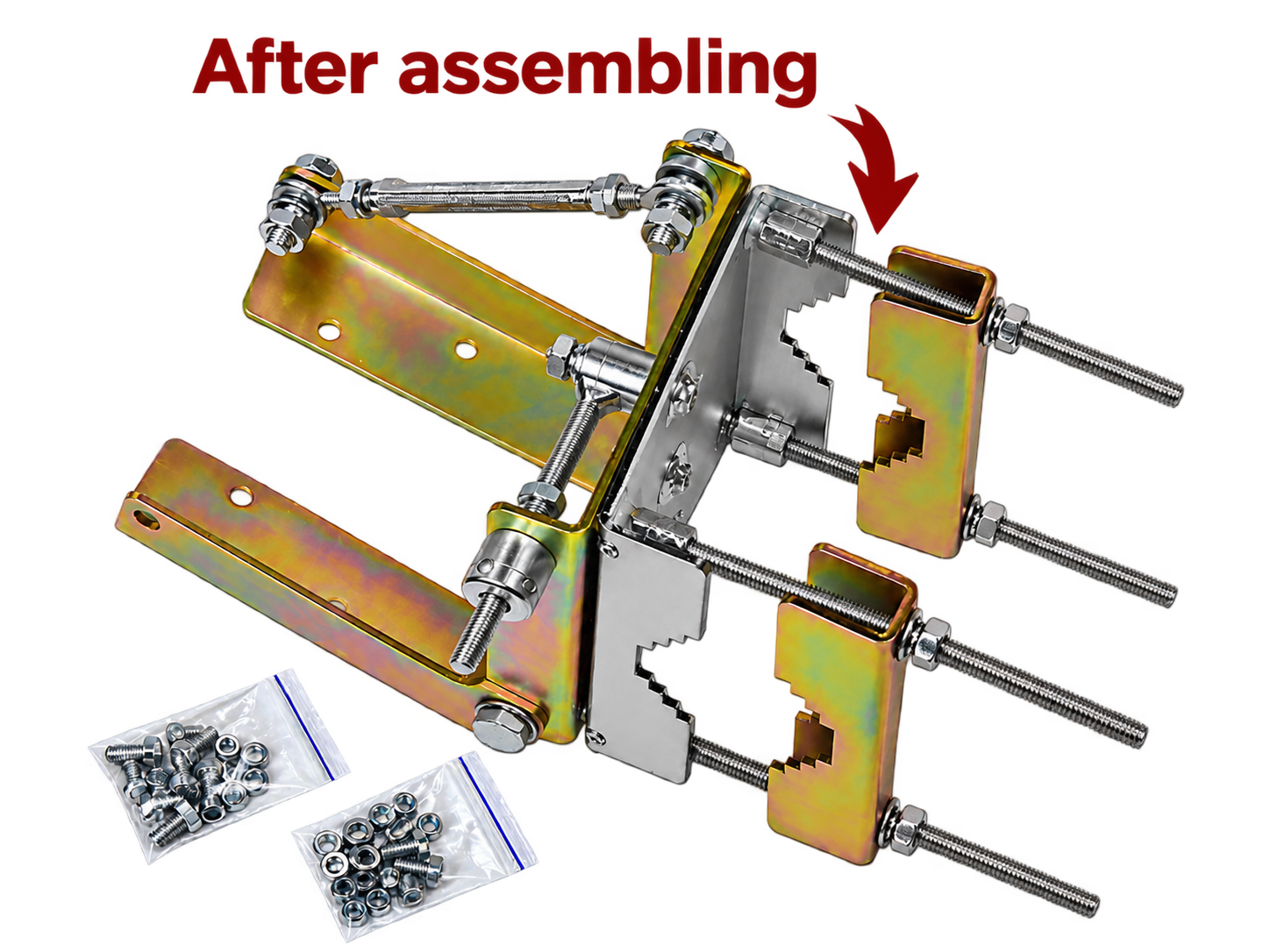

Short instruction about antenna assembling%20UMT%20LLC.jpg)
