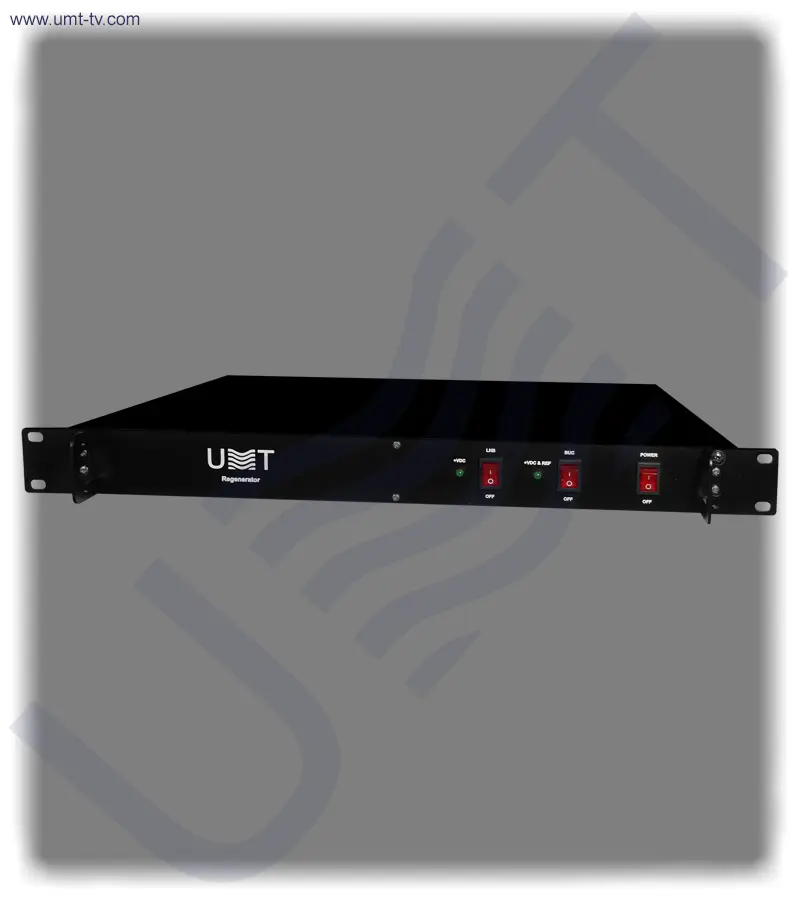

DVB-T-T2 Regenerator

  • Description
  • Downloads

This type of regenerator supports the DVB-T/T2 standard. DVB-T/T2 Regenerator is controlled by our own developed VCC software by Ethernet. DVB-T/T2 Regenerator can be produced with N-, F- or SMA-type of input / output connectors by order.

KEY FETURES:

  • can be produced from 1 to 32 independent regeneration channels;
  • high stable hardware;
  • fast and high reliable control software;
  • remote control by Ethernet.

MAIN FUNCTIONS:

  • if power is lost all saved settings are recovered in the device after restoration of supply;
  • integrated over‐voltage protection;
  • integrated over‐load protection;
  • integrated short‐circuit protection.



Inputs
The input level -65 ... -25 dBm
RF Frequency range (DVB-T) 10 MHz-1100 MHz in 1 kHz-steps
Interface, connector type RF, N-type (F or SMA as option)
RF Output:
RFout (50Ω) 80-100 dBµV
Number of inputs, connector type RF output N-type (F or SMA as option)
Injection Optionaly can provide injection of DC and 10 MHz reference
Modulation parameters DVB-T mode:
Constellation   QAM16 / QAM32 / QAM64
Modulation Error Rate (MER)   >40 dB
FEC  1/2 , 2/3 , 3/4 , 5/6 , 7/8
Symbolrate   -
Bandwidth  5, 6,7,8 MHz
Signals injection
10 MHz reference  10-6-10-8 stability (optionally)
Power injection  for the BUC 24V, 3А (optionally)
Adjustment
Interface RJ-45, Ethernet
Power Supply
Input Voltage  110‐240 V AC, 50/60 Hz
Power Consumption  6W per channel
Environmental
Operating Temperature  0℃ to 45℃ (32℉ to 113℉)
Storage Temperature ‐20℃ to 80℃ (‐4℉ to 176℉)
Operating Humidity  90%, non‐condensing
Mechanical
Dimensions (W x H x D)  1RU: 483mm x 44.5mm x 450mm, 19’’ x 1.73’’ (1RU) x 17.7’’
2RU: 483mm x 89mm x 450mm, 19’’ x 3.5’’ (2RU) x 17.7’’
