HPSA-DP

  • Description
  • Downloads

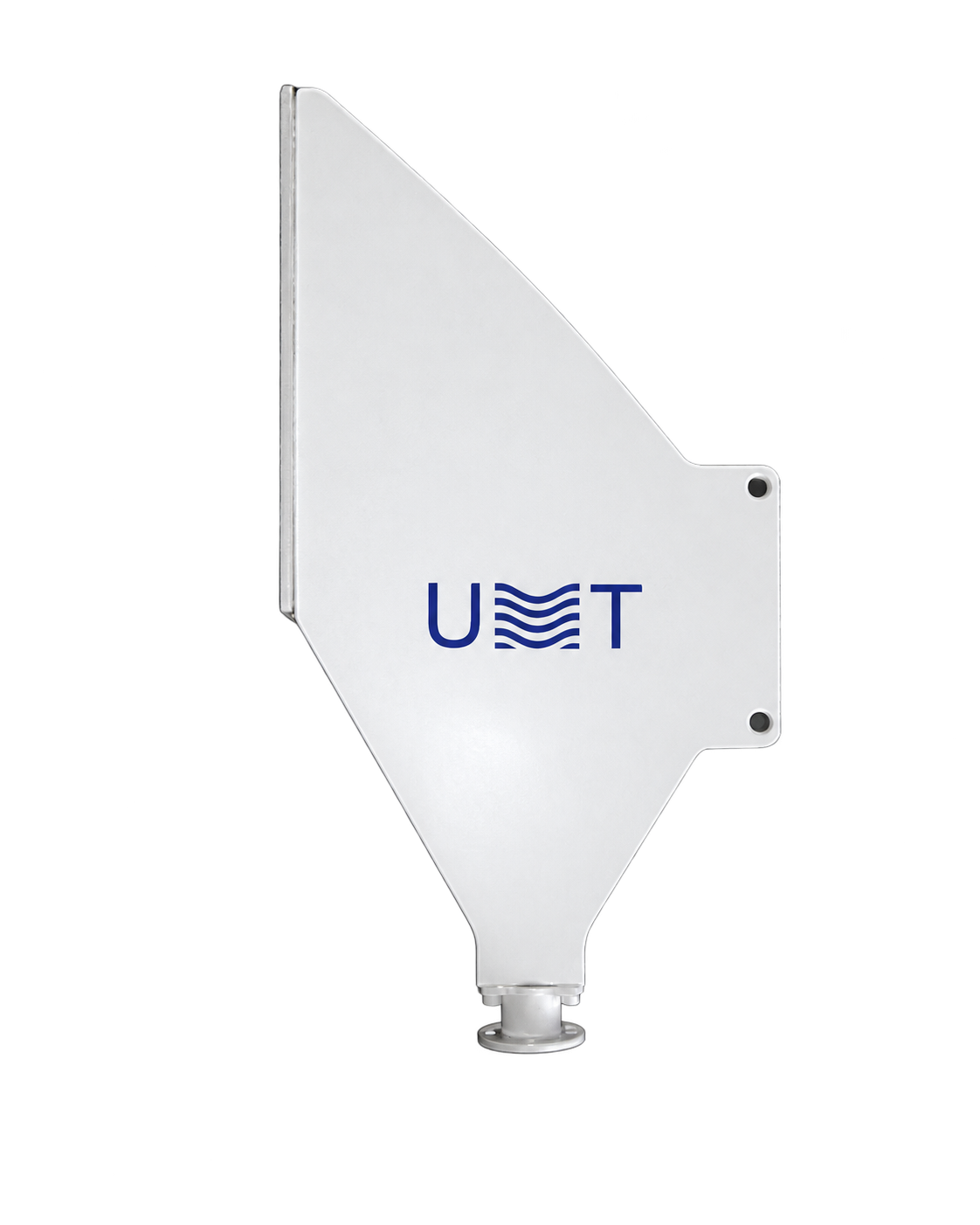

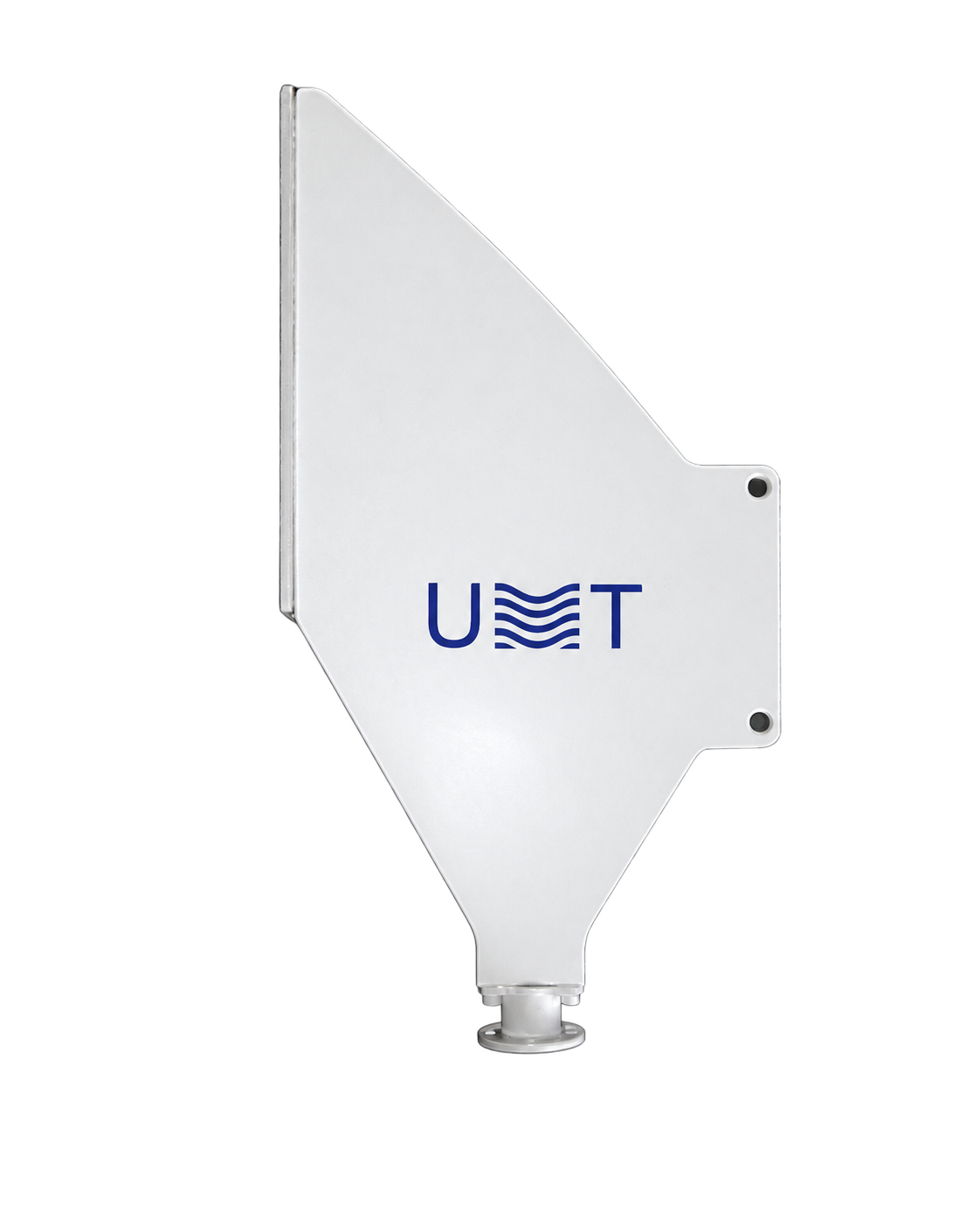

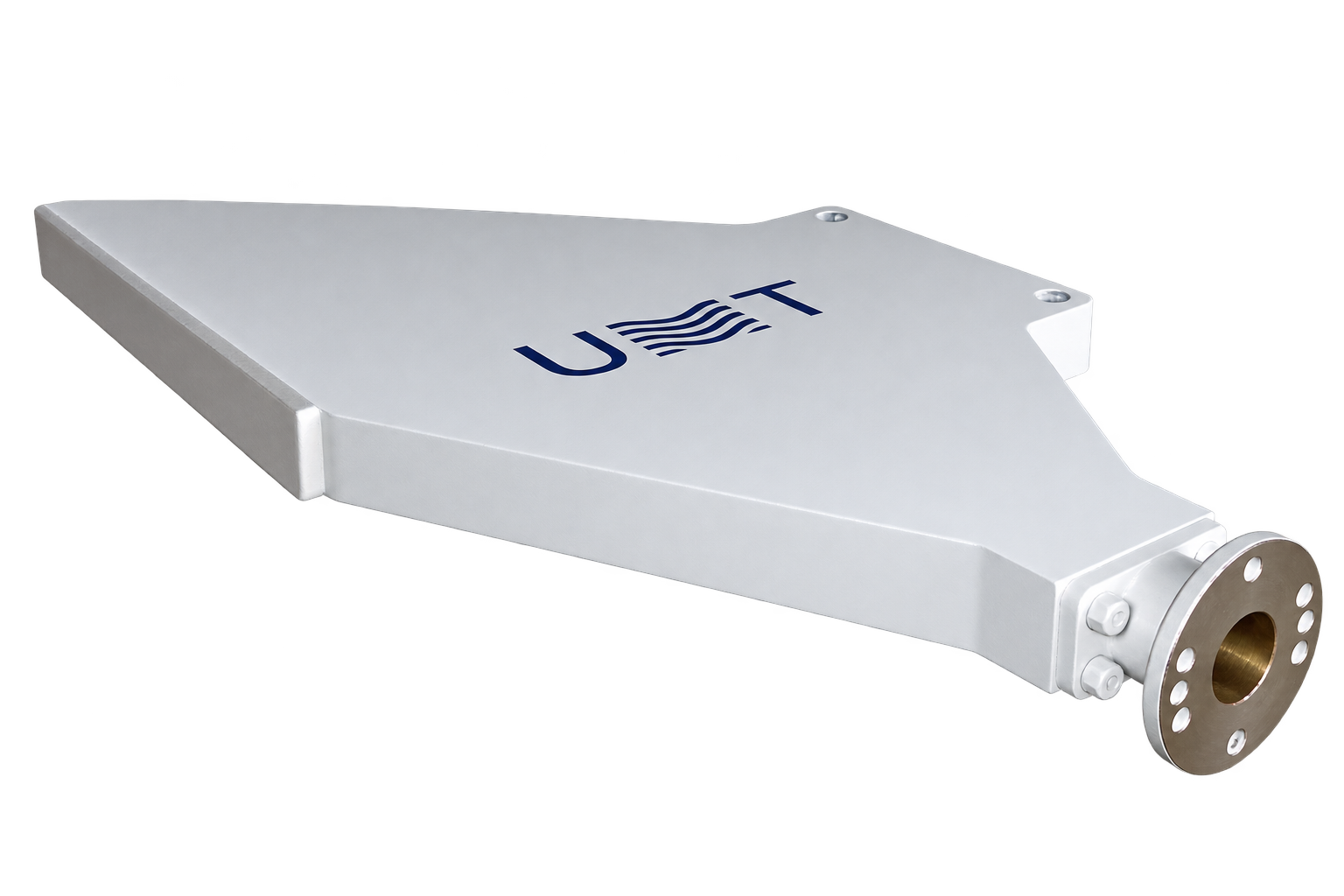

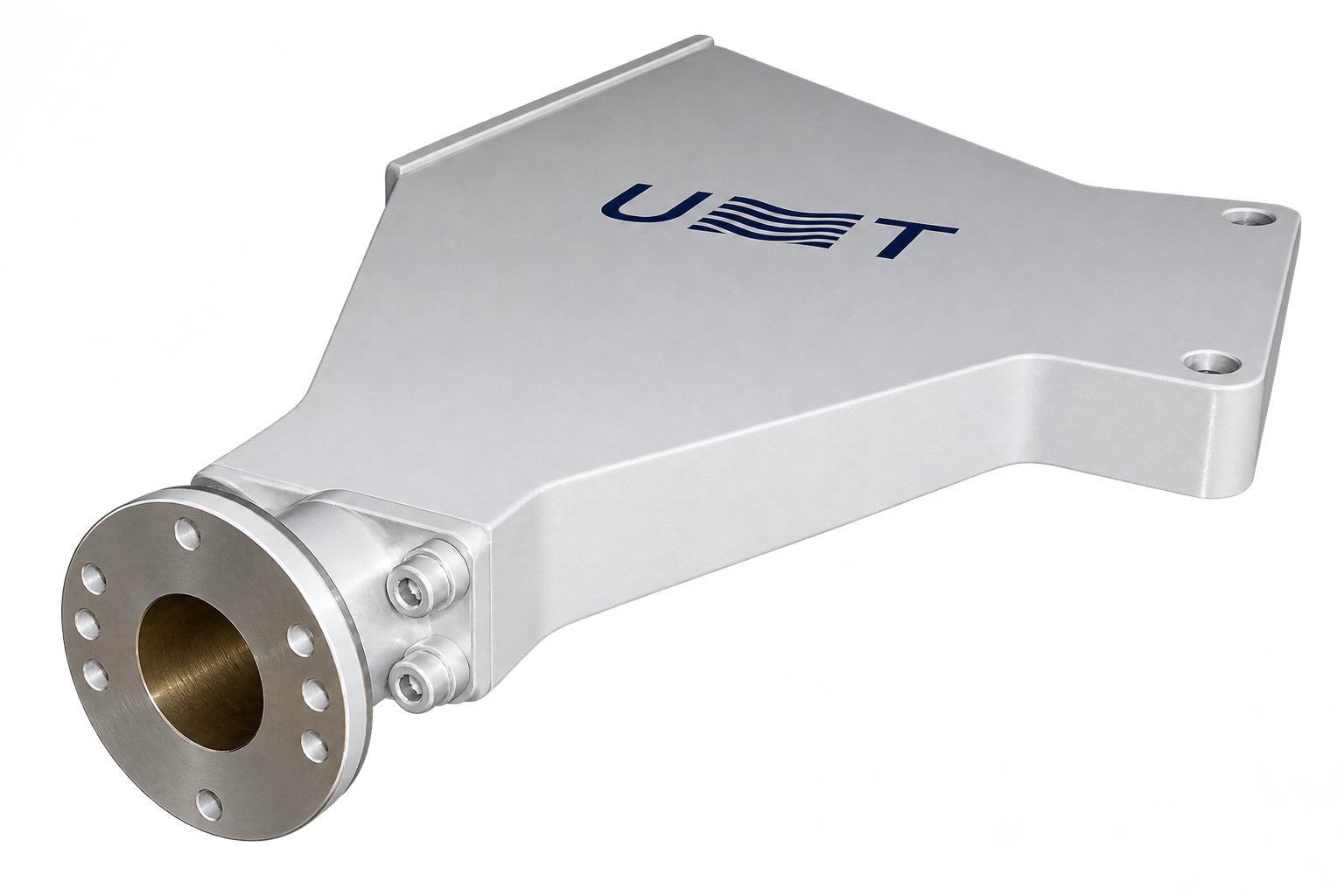

Sector antenna HPSA-DP is dual polarization antenna designed for MVDS / MMDS broadcasting systems at Ku-band range. It has compact shipping dimensions and supports two polarizations, so you are able to broadcast two times more channels at the same bandwidth.

Key features:

  • Reliable design
  • High gain
  • Compact size
  • Supports two polarizations

Main functions:

  • Transmit and receive Ku/C-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

ParameterValue
Frequency range, GHz 10.0-15.0
Gain, dBi, at least min 15.8; max 17.9
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization Linear: horizontal & vertical
Cross-polarization, dB, not less 25
HPBW:
@horizontal min 56.8°; max 76.5°
@vertical min 5.6°; max 8°
Input power (max), W 20
Waveguide WR-75 flange
Operating temperature, °C -40 до +80
Humidity 100% @ 25°C
