LSA-KuV90 v1

Short description

LSA-KuV90 v1 is Long Sector Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 90 degrees and V-polarization

► Beam (H): 90°; Beam (V): 6°

► Frequency range: 10.7-13.5 GHz

► Gain: 18 dB

► It is designed for Ku-band

V-polarizationKu-bandfrom 90° to 120°
- +

Request for customized equipment Antennas

    • Description 1
    • Downloads
    LSA-KuV90 v1 is Ku-band long sector antenna which has radiation pattern of 90 degrees in horizontal plane and wide frequency range of 10700 - 13500 MHz. Key features:
    • Reliable design
    • Light weight
    • Compact size
    • High gain
    Main functions:
    • Transmit and receive Ku-band signals
    • Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems

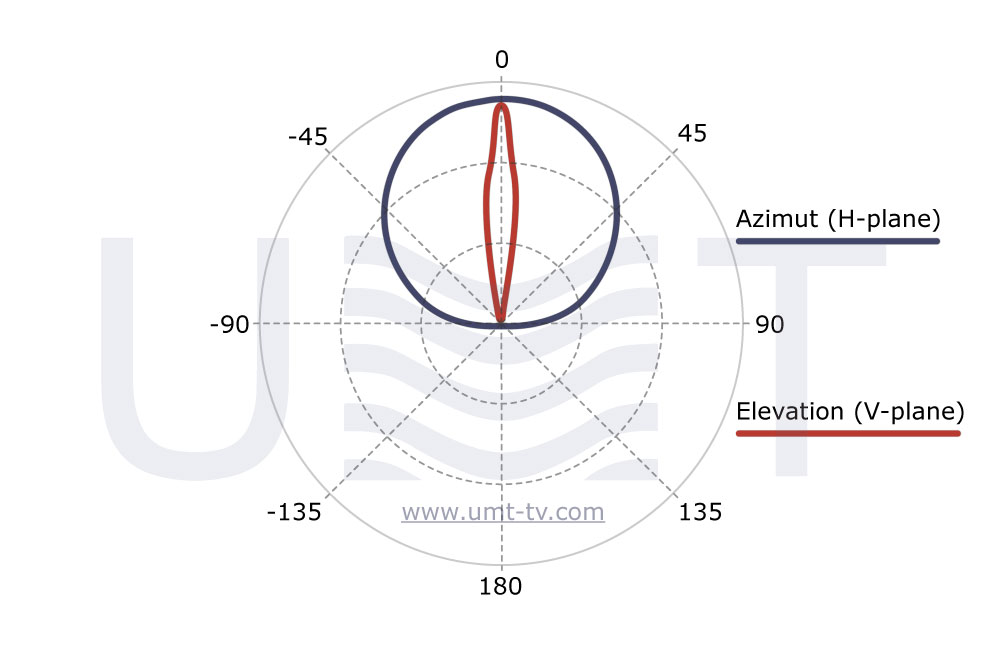

    LSA-KuV90 radiation pattern - developed by UMT LLC
