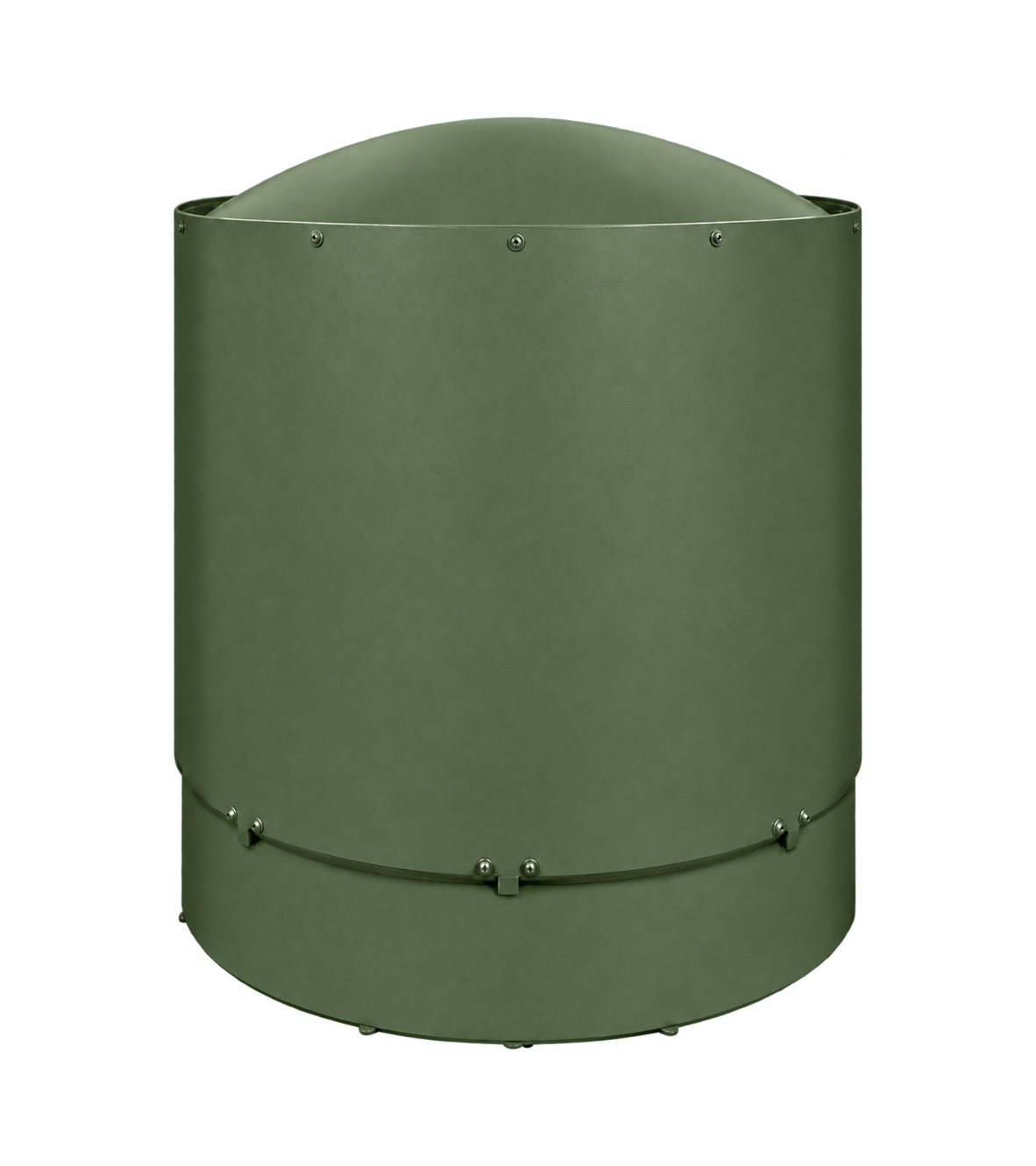

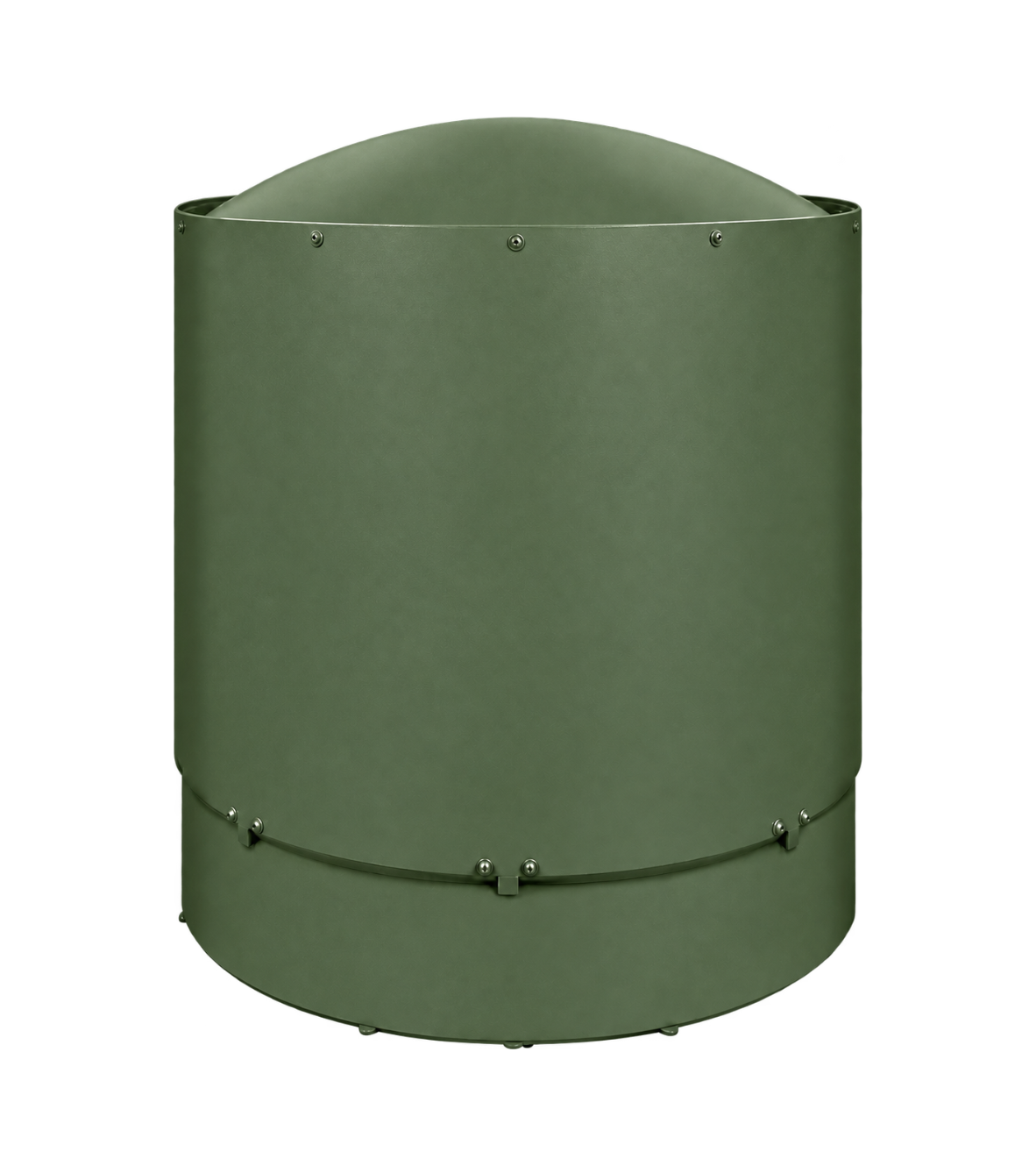

RCPOA 8-18 GHz

Short description

RCPOA 8-18 GHz is Reflective Conical Parabolic Omni Antenna which receives ALL polarizations: vertical V / horizontal H / right-hand circular RHCP / left-hand circular LHCP / elliptical

► It is designed for both X + Ku bands

► Has 360° radiation pattern

► Supports ALL polarizations

► Wide frequency range of 8-18 GHz

- +
  • Description
  • Downloads

RCPOA 8-18 GHz is Reflective Conical Parabolic Omni Antenna which works in both X and Ku bandsreceives ALL ( vertical V / horizontal H / right-hand circular RHCP / left-hand circular LHCP or elliptical ) polarizations,  has 360 deg radiation pattern, wide frequency range of 8-18 GHz

Key features:

  • Receives ALL polarizations
  • Works in wide frequency range 8-18 GHz (works in both X and Ku bands)
  • Reliable design
  • High gain
  • Omnidirectional

Main functions:

  • Transmit and receive X + Ku band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

RCPOA 8-18 GHz diagram - developed by UMT LLC

Parameter Value
Frequency range, GHz 8-18
Gain, min, dB 7.0
VSWR, max 2.5
Polarization All ( vertical V / horizontal H / right-hand circular RHCP / left-hand circular LHCP or elliptical by order )
HPBW (vertical), av., deg 11°
Input power, kW 1
Input and output connectors SMA or K-type
Storing temperature range, °C -40 to +70
Working temperature range, °C -10 to +50
Humidity 100%
Dimensions (height/diameter), mm 570/625
Weight, kg, max
Allowable wind speed, mps
Casing material Radio transparent plastic
Mount Mounting on a horizontal surface

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
