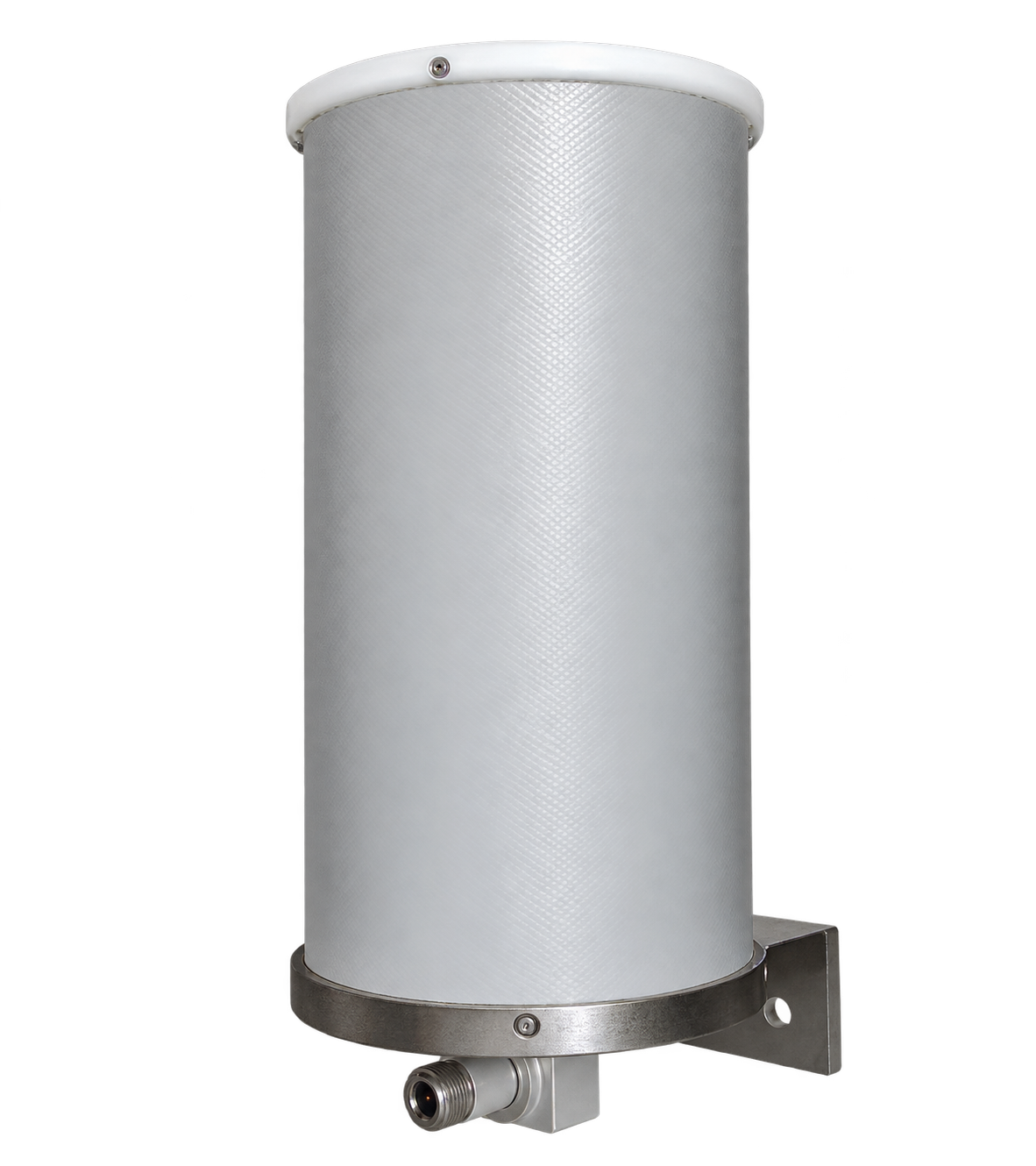

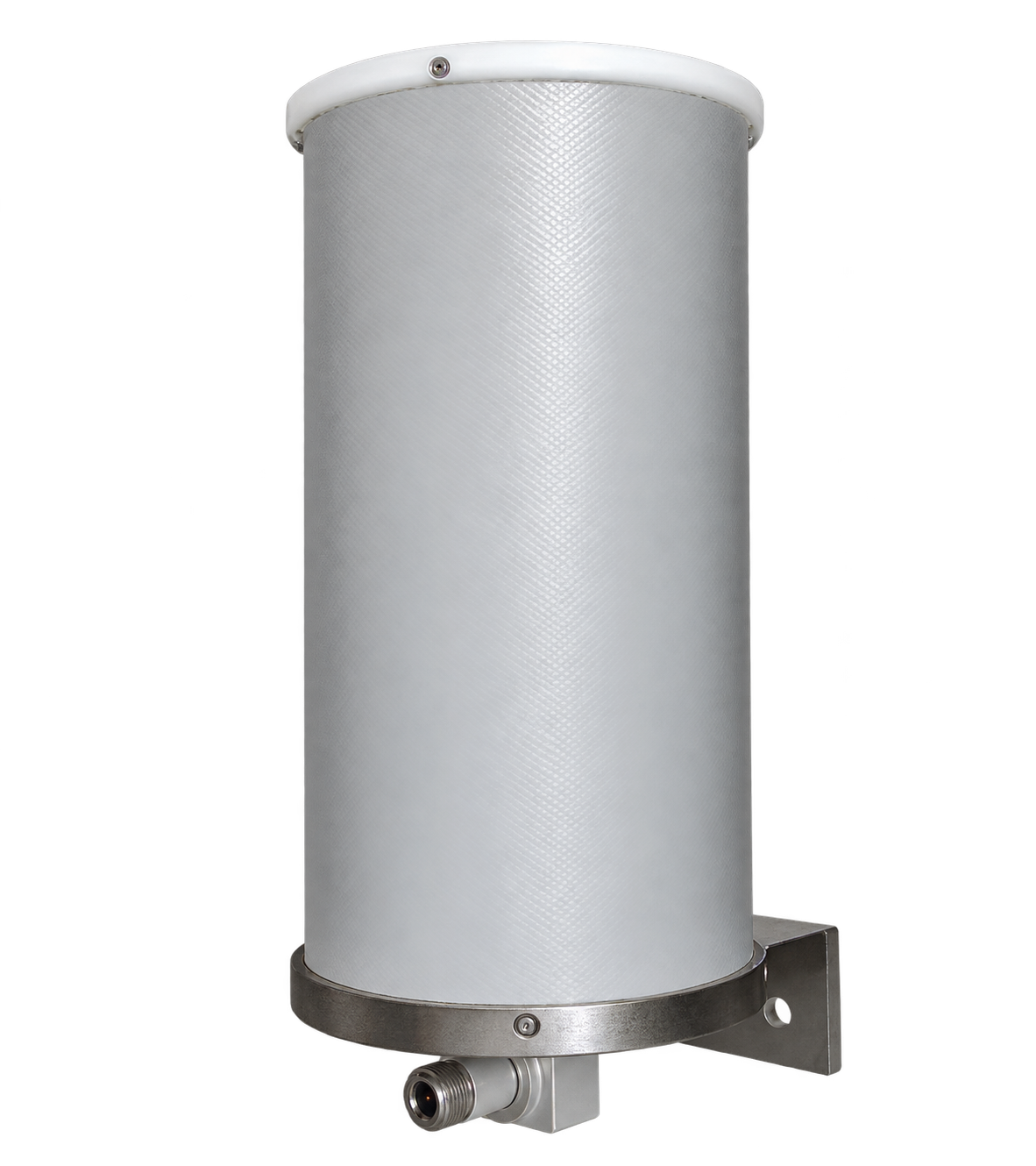

SWA-X360 v2 7.0-7.5 GHz is X-band omni slotted waveguide antenna designed for MVDS / MMDS broadcasting systems. SWA-X360 v2 has 360 deg radiation pattern, high gain of 7.75 dBi and wide frequency range of 7.0-7.5 GHz (other by order), in addition, has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by SWA-X360 v2 7.0-7.5 GHz can be received by typical X-band satellite dish and LNB.
SWA-X360 v2 X-band omni slotted waveguide antenna is a professional solution engineered for broadcasting systems, repeater networks and interactive microwave infrastructures. Operating in the 7.0-7.5 GHz frequency range, with the possibility to customize other X-band segments, it delivers 7.75 dBi gain, a 360° omnidirectional radiation pattern and stable performance for professional communication networks.
With horizontal polarization by default, cross-polarization isolation ≥25 dB and low ripple ≤2 dB, the SWA-X360 v2 ensures clean and reliable signal transmission in demanding environments. Its WR-112 waveguide interface and optional N-type connector provide seamless integration into standard broadcasting and satellite systems.
Compact and lightweight at only 2.5 kg, the SWA-X360 v2 is designed for mounting on vertical pipes with a diameter of 40 mm. Its dust- and moisture-proof casing, operating temperature range of -40 °C to +80 °C and resistance to 100% humidity at 25 °C make it a dependable X-band omni slotted waveguide antenna for long-term outdoor deployment.
✅ Customizable X-band coverage
The SWA-X360 v2 operates in the 7.0-7.5 GHz band and can be tailored to other X-band segments by request. This makes it suitable for different regional allocations and specialized broadcasting applications.
✅ High-gain omnidirectional design
With 7.75 dBi gain and full 360° horizontal coverage, the SWA-X360 v2 provides uniform signal distribution without blind zones. Its optimized vertical beamwidth improves stable coverage across large service areas.
✅ Compact and lightweight construction
At only 245 × 115 × 115 mm and 2.5 kg, the SWA-X360 v2 combines easy installation with low visual impact and reduced windage. It is practical for towers, rooftops and other outdoor broadcasting setups.
✅ Rugged outdoor performance
The dust- and moisture-proof casing protects the antenna in harsh climates. With reliable operation from -40 °C to +80 °C, the SWA-X360 v2 is built for long-term professional use.
🛠️ Whether you need an X-band omni slotted waveguide antenna with 7.75 dBi gain, a customizable X-band antenna for broadcasting systems, or a compact outdoor-ready antenna with WR-112 flange, the SWA-X360 v2 is designed for stable and professional-grade performance.
🛒 The SWA-X360 v2 is available to order now and ready for integration into DVB infrastructures, repeater networks, interactive microwave systems and satellite broadcasting chains.
📌 Key features
-
Frequency range of 7.0-7.5 GHz
The SWA-X360 v2 supports operation in the 7.0-7.5 GHz segment, with the option to customize other X-band ranges. This ensures flexibility for operators working with different spectrum plans.
-
High antenna gain of 7.75 dBi
With 7.75 dBi gain, the SWA-X360 v2 delivers strong and stable signal transmission. This improves service reliability and coverage quality across professional broadcasting zones.
-
360° omnidirectional radiation pattern
The SWA-X360 v2 distributes signals equally in all directions, eliminating blind spots and ensuring consistent performance in omnidirectional networks.
-
Vertical beamwidth of ~20.6°
The optimized vertical beamwidth provides stable coverage and efficient signal distribution across both urban and rural infrastructures.
-
Low ripple performance ≤2 dB
The SWA-X360 v2 maintains consistent gain with minimal ripple. This improves transmission quality and reduces signal distortion in professional applications.
-
Cross-polarization isolation ≥25 dB
High polarization purity reduces unwanted interference and ensures clear signal delivery in complex RF environments.
-
Horizontal polarization standard
By default, the SWA-X360 v2 operates with horizontal polarization. Other polarization options are available by request to suit specific infrastructure requirements.
The low VSWR design minimizes reflection losses and improves power transfer efficiency, supporting stable and reliable broadcasting performance.
The SWA-X360 v2 features a WR-112 waveguide connection for seamless compatibility with professional broadcasting and satellite equipment.
-
Compact and lightweight design
At just 2.5 kg, the SWA-X360 v2 is easy to install and transport. Its compact structure reduces wind load and visual impact in outdoor deployments.
⚙️ Main functions
-
X-band signal transmission
The SWA-X360 v2 ensures reliable transmission of X-band signals for professional broadcasting and communication infrastructures.
-
Signal reception for X-band systems
In addition to transmission, the SWA-X360 v2 supports stable reception, improving the efficiency and versatility of integrated systems.
-
Broadcasting network integration
The SWA-X360 v2 is optimized for professional broadcasting infrastructures and ensures stable operation across wide service zones.
-
Repeater system deployment
The SWA-X360 v2 extends broadcasting reach through reliable retransmission, supporting continuous service across urban and remote areas.
-
Interactive microwave system support
The antenna integrates into interactive microwave infrastructures, enabling efficient two-way communication and stable signal handling.
-
Omnidirectional 360° coverage
With full azimuth coverage, the SWA-X360 v2 provides stable broadcasting without blind zones, simplifying deployment in complex network topologies.
Its 7.75 dBi gain enhances broadcasting efficiency and ensures stronger coverage in demanding professional environments.
-
Efficient low VSWR design
The SWA-X360 v2 maximizes power transfer and minimizes losses, improving the overall efficiency of the broadcasting chain.
-
Reliable outdoor operation
Built for durability, the SWA-X360 v2 withstands extreme temperatures and humidity, providing uninterrupted service in harsh climates.
-
Seamless WR-112 flange integration
The antenna connects easily through WR-112 flange, with optional N-type support available by request. This ensures broad compatibility with professional systems.
🧩 Applications
-
X-band broadcasting networks
The SWA-X360 v2 is suitable for X-band digital broadcasting and ensures reliable large-area coverage for professional DVB infrastructures.
-
MVDS/MMDS infrastructures
Widely used in MVDS/MMDS systems, the SWA-X360 v2 guarantees stable signal distribution for professional operators and service providers.
The SWA-X360 v2 strengthens repeater coverage and ensures continuous service across both urban and rural territories.
-
Interactive microwave systems
The antenna supports integration into interactive microwave infrastructures and enables efficient two-way communication in advanced networks.
-
Public broadcasting infrastructures
The SWA-X360 v2 ensures reliable performance for regional and national broadcasters, improving service availability and network stability.
The antenna integrates into telecom infrastructures and provides efficient X-band signal handling for professional communication systems.
-
Point-to-multipoint X-band systems
With its omnidirectional coverage, the SWA-X360 v2 acts as a central hub for multiple receivers and simplifies wide-area broadcasting.
-
Outdoor broadcasting installations
Built with rugged casing, the SWA-X360 v2 is designed for long-term outdoor use and performs reliably in all climates.
-
Urban and rural broadcasting coverage
The SWA-X360 v2 provides consistent performance across dense cities and remote rural zones, making it effective in diverse coverage scenarios.
-
Head-end broadcasting stations
The SWA-X360 v2 integrates into broadcasting hubs and ensures strong upstream and downstream connectivity for large subscriber networks.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the SWA-X360 v2 X-band omni slotted waveguide antenna, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.
