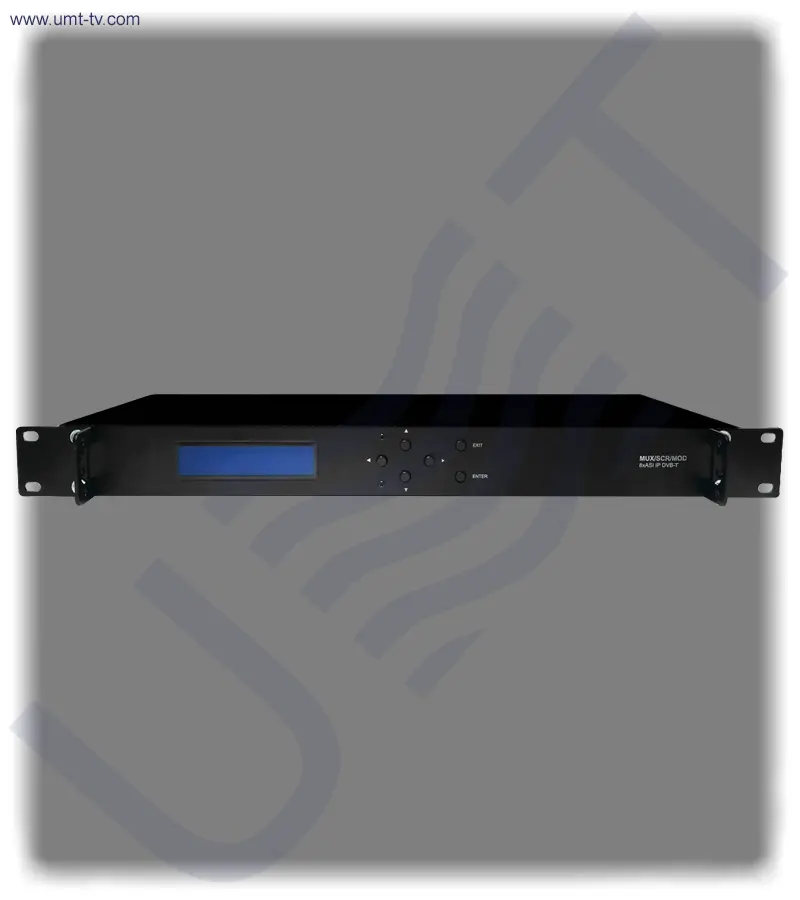

DVB-T/T2 8-ASI Scrambler
Short description
DVB-T/T2 8-ASI Scrambler is professional solution for multichannel digital video broadcasting: it is broadcasting server with its own memory and integrated multiplexer, scrambler and modulator — all in one device — powerful conditional access system
Using our DVB-T/T2 8-ASI Scrambler (in which are integrated remultiplexer, scrambler and DVB-T/T2 modulator) you are able to organize digital CATV broadcasting network including PC channels monitoring system.
The range of the output frequency adjustment for 2 configuration variants: 1RF and 2RF respectively
Examples of packages spectrum arrangement within 48 MHz of 2 RF carriers
KEY FEATURES:
- DVB-T/T2 8-ASI Scrambler has integrated re-multiplexer with 8 ASI inputs — which allows you to form program packages from 8 independent transport streams for further broadcasting
- One or two carriers can be set within 36-850 MHz range, subcarrier frequency can be set within 48 MHz
- Supports both SD (Standard Definition) and HD (High Definition, 1920x1080i) channels, H.264 / H.265 standard
- Typical DVB-T/T2 set-top-boxes with CI can be used as subscribers’ receivers
- 90% of STBs with CI support the working with DVB-T/T2 8-ASI Scrambler
- Connection to PC for management: Ethernet (100 Mbit/s), RJ45
- 1Gbit data port for IP output (UDP/RTP protocol)
MAIN FUNCTIONS:
- Works 24/7/365
- Supports state-of-art broadcasting standards
- Automatic and manual PID insertion
- EPG, OTA, LCN support, Network search
- Generation of output stream with up to 92 PID selected from 8 ASI inputs
- Optional enabling/disabling of stuffing in the IP output
- Supports QPSK/QAM16/QAM64
- The ability to set the frequency of the output IF signal in the range of 36-850 MHz
- All settings, including DVB-T/T2-mode switching and upgrading, are carried out via LAN (Ethernet 100)
- IP output can be used for IP streaming by UPD/RTP protocol, as well as for output or input TS monitoring at your PC
- Parameters indication on the LCD
- Quick replacement of the device in the system without stream rescan
| Inputs/Outputs | |
|---|---|
| Input interface, connector | 8×DVB-ASI, 8×BNC |
| Output interface, connector | 2×DVB-ASI, 1×RF, 1×DVB-IP, 2×BNC, 1×F and 1×RJ-45 respectively |
| Output RF signal frequency range | 36-850 MHz |
| Output RF signal level | 0 dBuV, adjustment -10dBuV |
| Modulation parameters DVB-T | |
| Constellation | QPSK / QAM16 / QAM64 |
| Guard interval | 1⁄4 1⁄8 1⁄16 1⁄32 |
| Forward Error Correction (FEC) | 1⁄2 2⁄3 3⁄4 5⁄6 7⁄8 |
| COFDM Mode | 2k |
| Modulation parameters DVB-T2 | |
| Constellation | QPSK / 16QAM / 64QAM / 256QAM |
| Modulation Error Rate (MER) | >42 dB @ 500 MHz |
| Forward Error Correction (FEC) | 1⁄2 3⁄5 2⁄3 3⁄4 4⁄5 5⁄6 |
| Constellation rotate | Embedded, Disable |
| Pilot S | PP2, PP3, PP8 |
| Guard interval | 1⁄4 19⁄128 1⁄8 19⁄256 1⁄16 1⁄32 1⁄128 |
| Bandwidth | 1.7, 5, 6, 7 and 8 MHz |
| COFDM Mode | 1k, 2k, 4k, 8k, 8k ext., 16k, 16k ext. |
| IP stream | |
| IP | RTP, UDP protocol support |
| IP address format | Multicast, unicast |
| TS bit rate | 0.5…60 Mbps |
| TS packet format | 188 Byte |
| Power Supply | |
| Power | ~220V+-20% |
| Power Consumption | Max 20 W |
| Others | |
| Size | 19”, 1U transport mode: 440×49×243 (mm) operating mode: 483×49×243 (mm) |
| Weight | 3.25 Kg |
