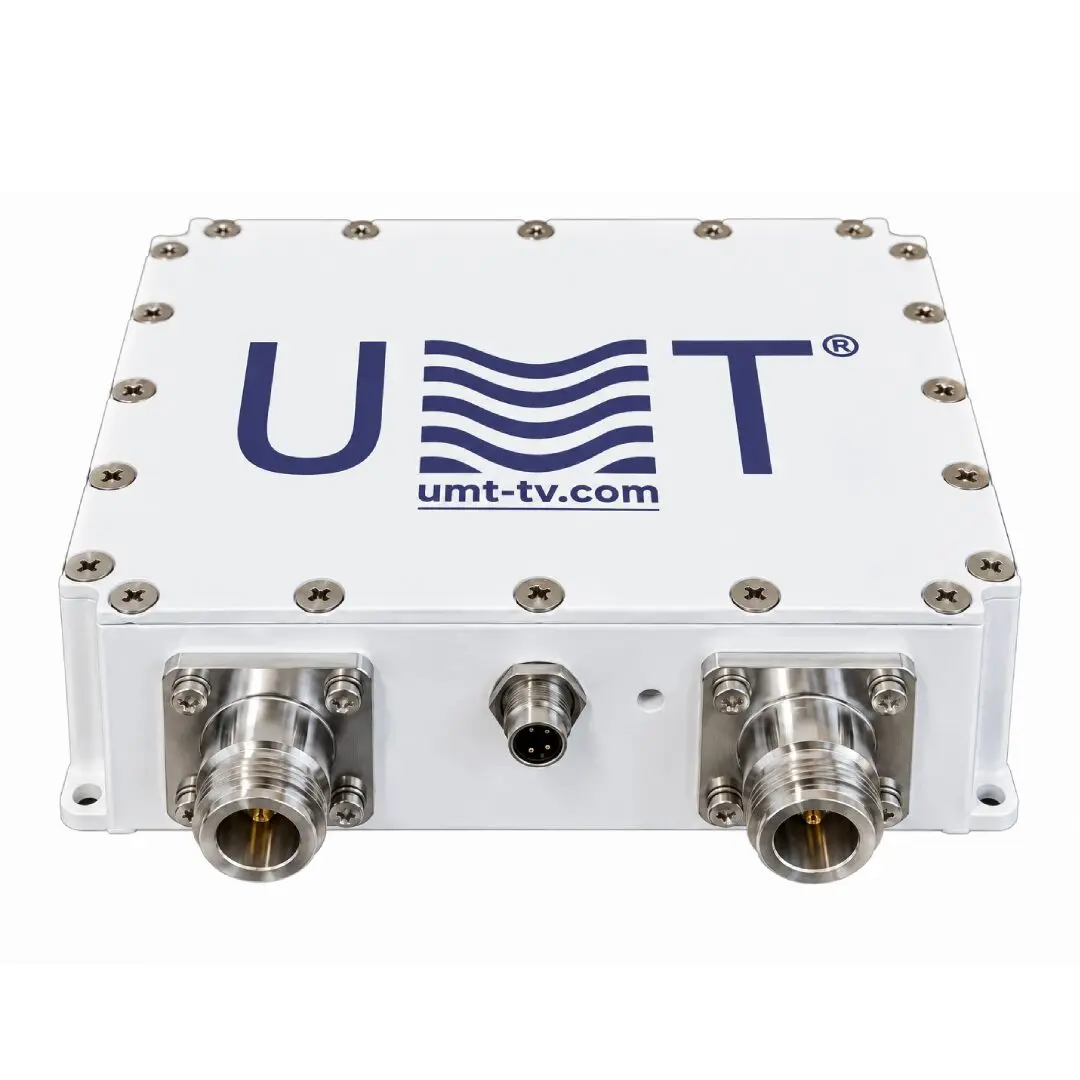

The Extended Ku-band Upconverter 13.75-14.5 GHz is designed for operators who need more than the standard Ku-band uplink. Its output spans the conventional 14.0-14.5 GHz band and the additional 13.75-14.0 GHz extension, converting 950-1750 MHz IF signals with a 12.8/13.05 GHz local oscillator referenced to an external 10 MHz source.
This wider range gives flexibility in transponder selection across Ku-band satellites. The unit delivers a minimum P1dB of 10 dBm and 5-30 dB gain, runs from 10-24 VDC at less than 9 W, and fits a 115x120x38 mm IP54 indoor enclosure weighing up to 0.95 kg.
The Extended Ku-band Upconverter 13.75-14.5 GHz converts 950-1750 MHz IF signals into the 13.75-14.5 GHz Ku-band uplink. By covering both the standard 14.0-14.5 GHz band and the 13.75-14.0 GHz extension, it lets one converter model serve transponders across the full extended Ku-band.
Frequency translation is performed by a 12.8/13.05 GHz local oscillator locked to an external 10 MHz reference. The output provides a minimum P1dB of 10 dBm and 5-30 dB gain, with ±1 dB full-band flatness and ±0.4 dB flatness over 40 MHz.
Linearity and spectral cleanliness are specified as IMD3 -30 dBc max, spurious -60 dBc max @P1dB and LO leakage -75 dBm without signal. The IP54 indoor enclosure with N-type input and N-type female output is ready for rack or shelter integration.
✅ Standard and extended Ku-band in one unit
One converter covers 14.0-14.5 GHz and the 13.75-14.0 GHz extension, simplifying spares management and network planning.
✅ Flexible transponder selection
The wide 13.75-14.5 GHz output range gives freedom to move carriers between transponders without changing the converter type.
✅ Wide 950-1750 MHz IF input
The extended IF range matches the wider output band, so modulators can be tuned across the whole extended Ku-band uplink.
🛠️ Whether you operate Ku-band VSAT hubs, teleport uplinks or SNG and contribution links, the Extended Ku-band Upconverter 13.75-14.5 GHz covers the complete extended Ku-band in a single compact unit.
🛒 Contact us for a quote on the Extended Ku-band Upconverter 13.75-14.5 GHz, including fixed or adjustable gain versions.
📌 Key features
-
13.75-14.5 GHz extended Ku-band output
Covers the standard 14.0-14.5 GHz uplink band and the 13.75-14.0 GHz extension.
Accepts IF signals across 950-1750 MHz from satellite modulators.
-
12.8/13.05 GHz reference-locked LO
The 12800/13050 MHz local oscillator is synchronized with an external 10 MHz reference.
-
Flat response over the wide band
±1 dB flatness across the full band and ±0.4 dB over 40 MHz.
IMD3 of -30 dBc max for two tones 5 MHz apart at 6 dB back-off, spurious -60 dBc max and LO leakage -75 dBm.
10-24 VDC supply, under 9 W consumption, IP54 indoor housing of 115x120x38 mm.
⚙️ Main functions
-
Extended Ku-band upconversion
Shifts 950-1750 MHz IF carriers to the 13.75-14.5 GHz Ku-band uplink.
-
Reference-locked operation
Locks the LO to the station external 10 MHz reference, with LED lock indication.
Fixed or optional adjustable gain of 5-30 dB sets the output level for the following power stage.
Two-tone IMD3 of -30 dBc max is specified at 6 dB back-off from P1dB.
RF isolation at ALARM is specified at -80 dB min; alarm status is shown by LED.
🧩 Applications
Transmit chains at teleports working across standard and extended Ku-band transponders.
Hub uplinks of Ku-band VSAT networks.
-
Broadcast and contribution
Ku-band broadcast feeds and contribution links.
Ku-band satellite links for government communications.
-
Satellite operator tracking
Satellite operator tracking applications requiring stable IF-to-Ku-band conversion.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the Extended Ku-band Upconverter 13.75-14.5 GHz, feel free to contact our team. We provide professional consultation and aftersales support to help with integration, installation and setup of the upconverter within your satellite communication system.
