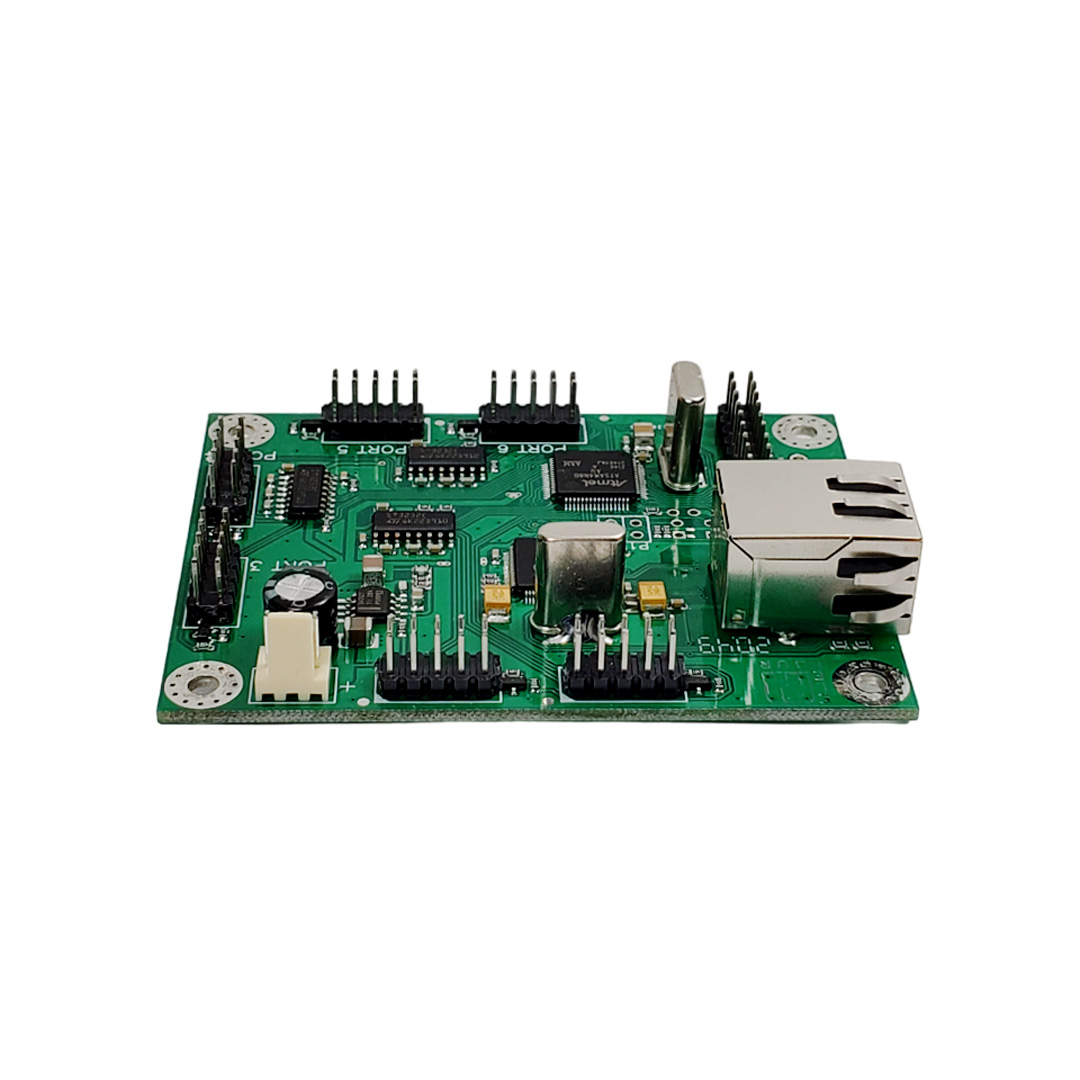

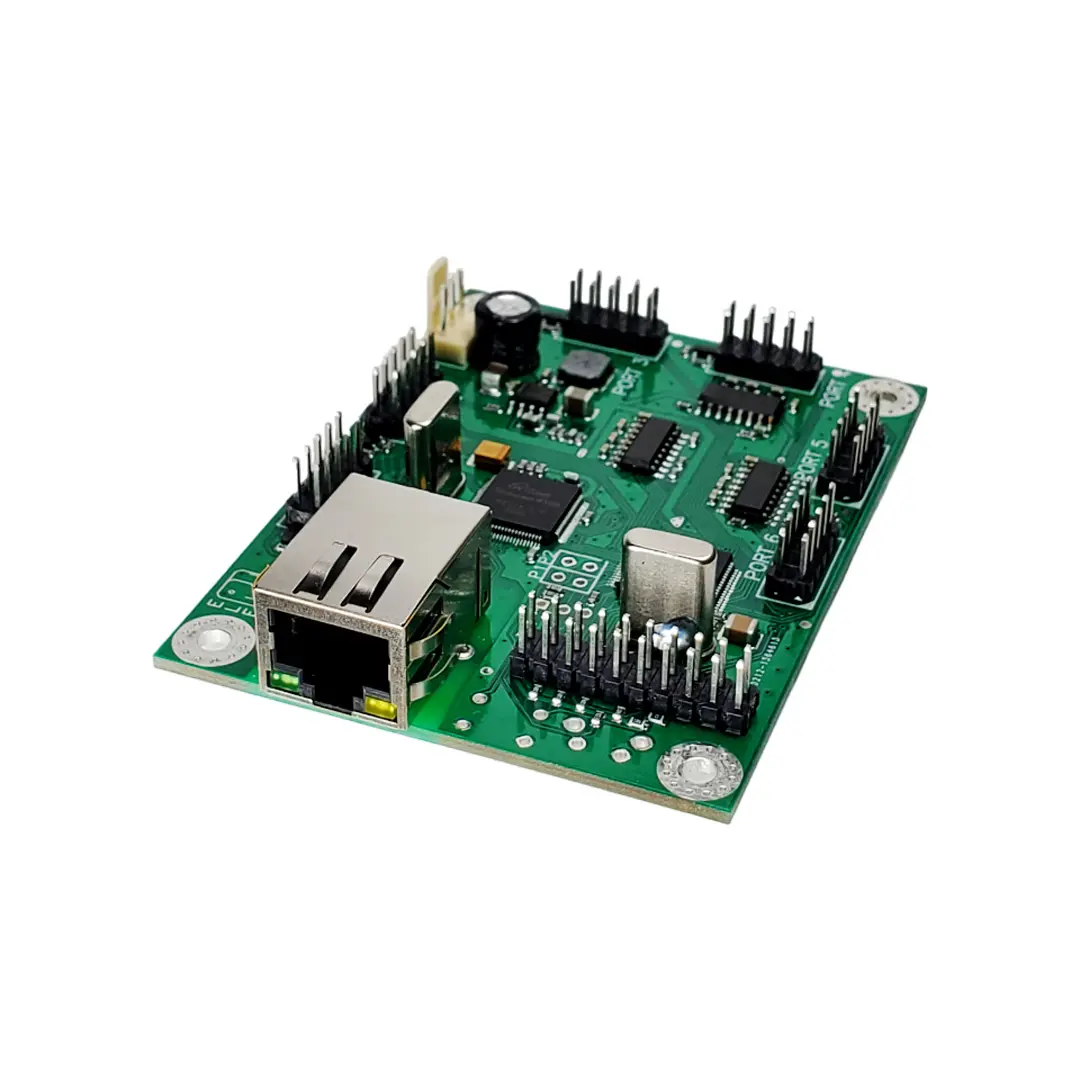

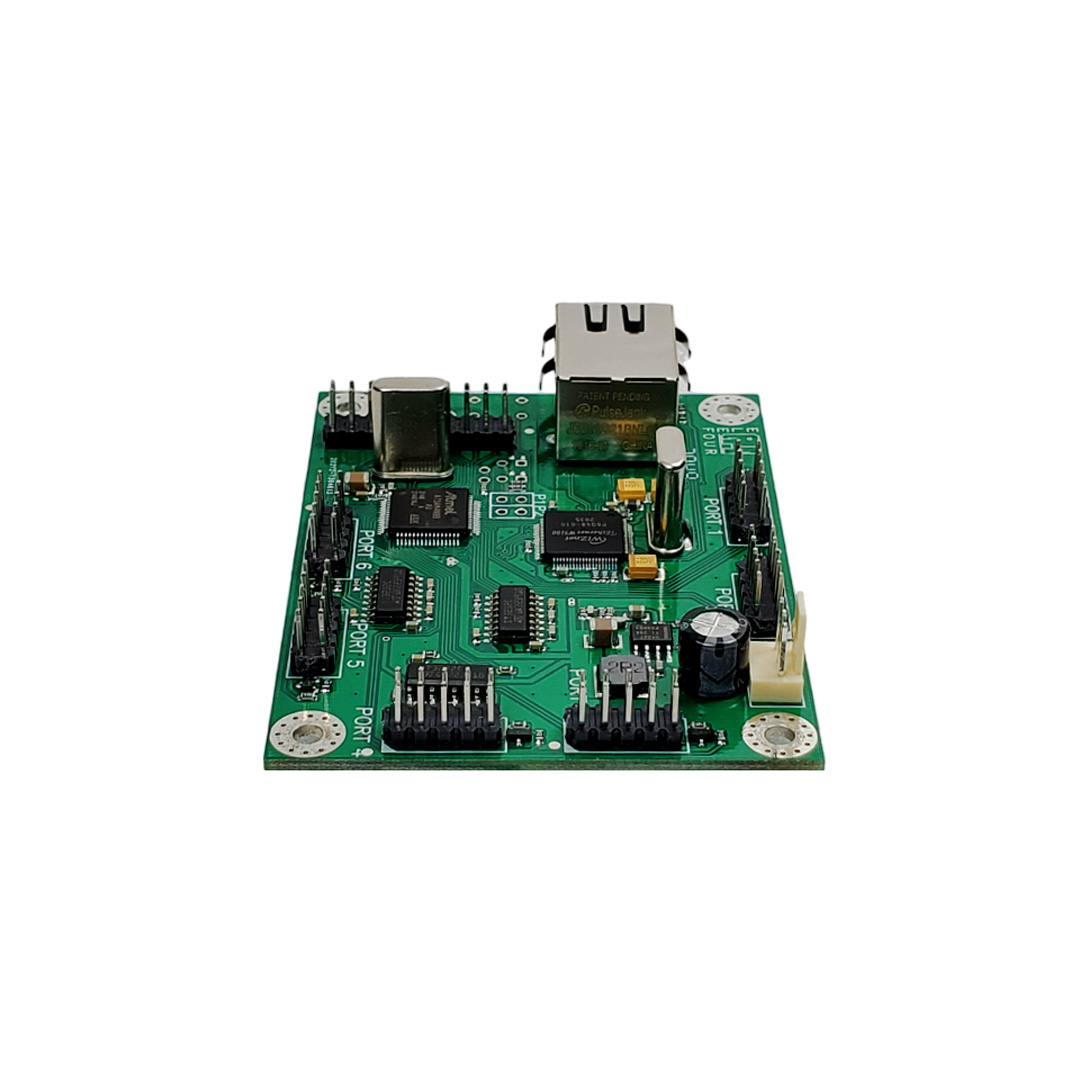

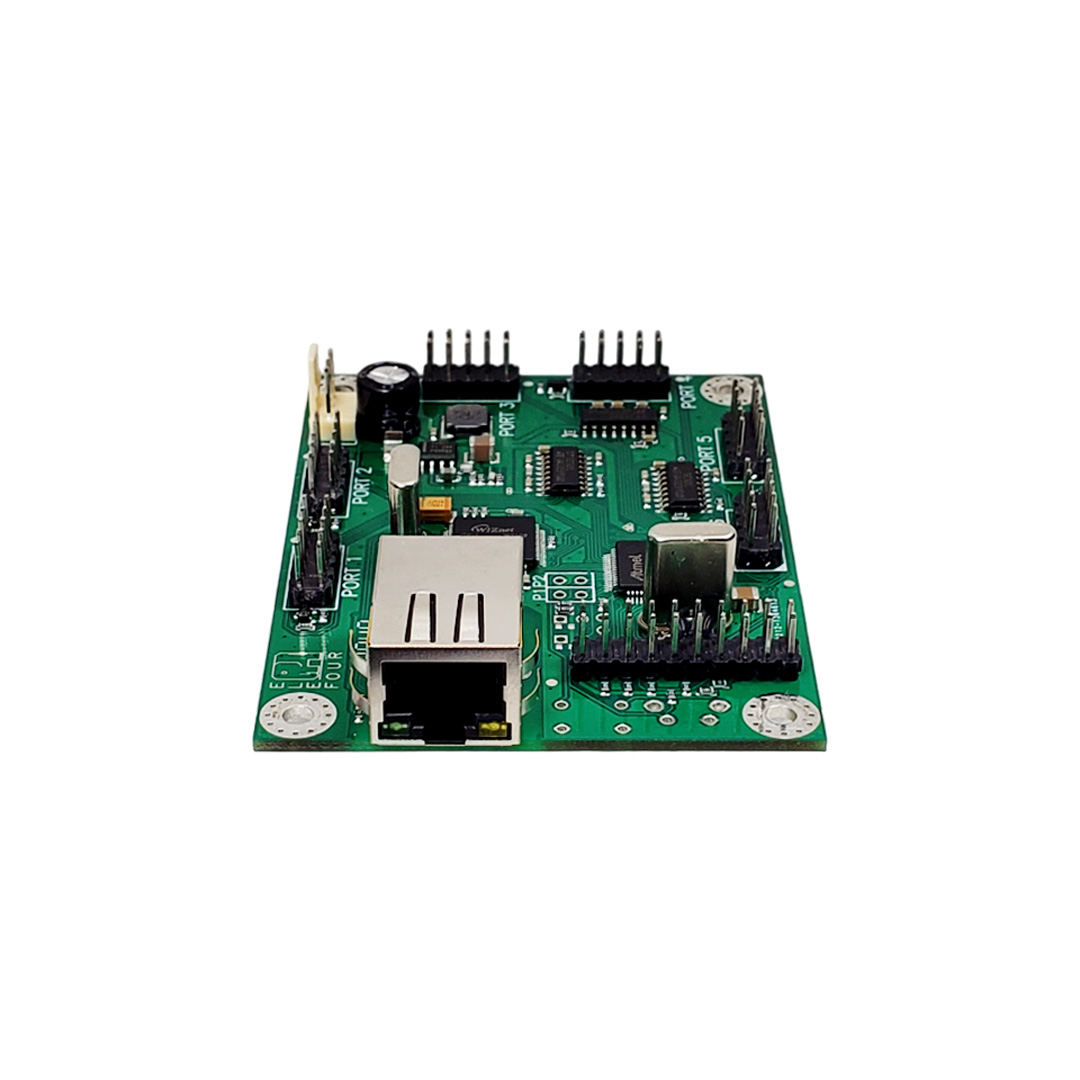

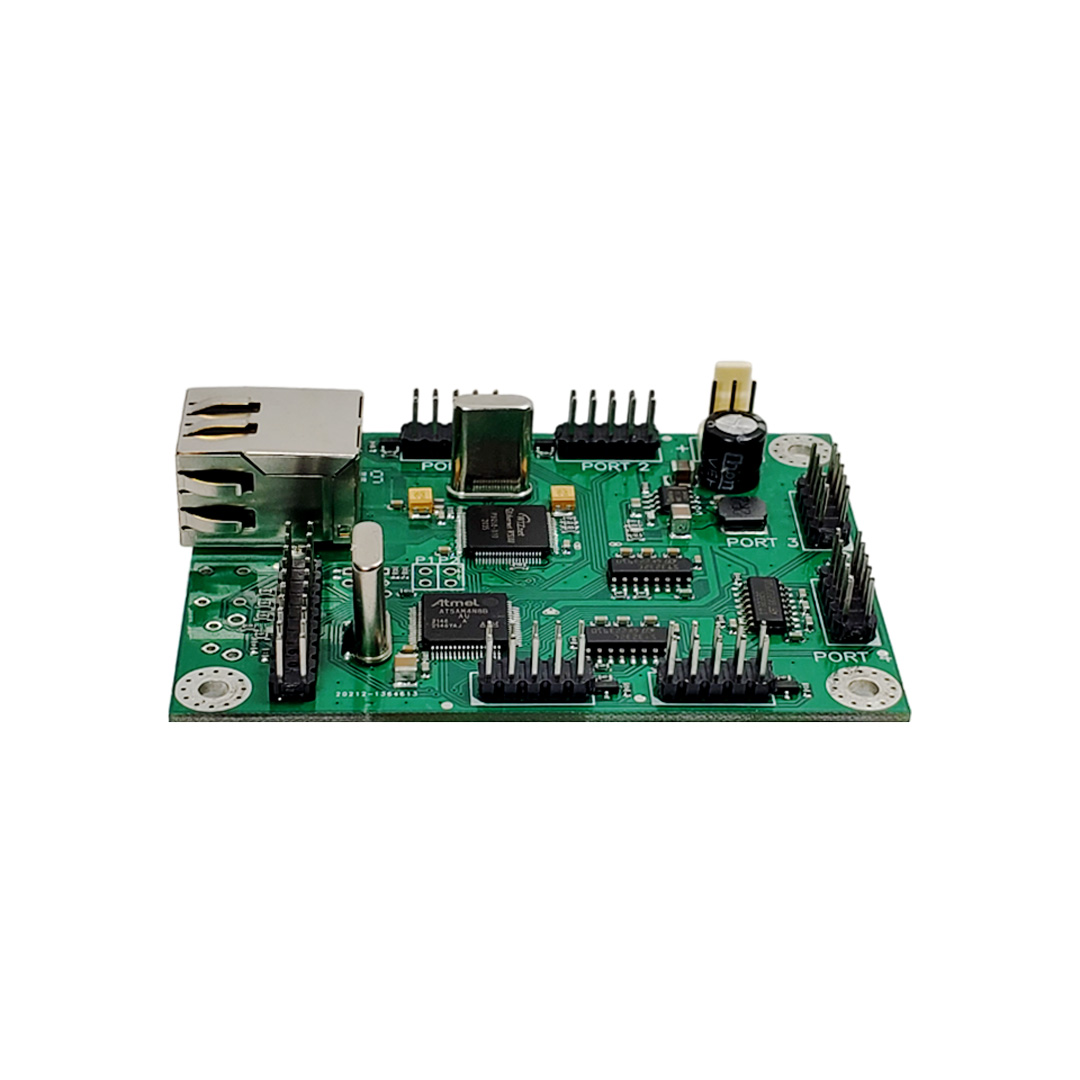

6 ch IP control board

6 ch IP Control Board is an advanced Ethernet-managed DVB control module designed for centralized control of professional broadcasting equipment. It provides up to six independent ports for connecting DVB-S/S2 modulators, DVB-S/S2 receivers, DVB-T modulators, DVB ASI TS input/output boards and DVB IP I/O modules. This compact solution is built for engineers, OEM developers and system integrators who need stable TCP/IP management over Ethernet in digital broadcasting infrastructures.

With its RJ45 10/100 Base-T interface, support for full and half duplex modes, automatic or manual negotiation, 82×61 mm dimensions, 1 W power consumption and 8–18 V supply range, the 6 ch IP Control Board is optimized for modular headends, IP-to-DVB gateways and scalable multi-standard signal processing platforms.

✅ Centralized TCP/IP control for DVB systems

The 6 ch IP Control Board supports real-time monitoring and management of up to six DVB modules simultaneously. Each port works independently, ensuring flexibility and scalable control for professional broadcasting systems.

✅ Seamless Ethernet connectivity

Equipped with an RJ45 10/100 Base-T interface, the board supports both full and half duplex modes with automatic or manual negotiation. It ensures stable and low-latency communication in standard network environments.

✅ OEM-grade reliability and compact design

With only 1 W power consumption and compact 82×61 mm dimensions, the board is suitable for embedded OEM integration. Its stable 8–18 V supply range supports reliable 24/7 operation in professional broadcast systems.

🛠️ The 6 ch IP Control Board is integration-ready and works seamlessly with DVB modulators, receivers and ASI boards, creating a unified digital broadcasting management chain for modular and scalable system design.

🛒 This professional IP-based DVB controller is available for purchase and OEM integration. It is suitable for broadcasters and integrators who need centralized IP management for complex digital broadcasting infrastructures.

📌 Key features

• 6 channel IP control board for DVB systems

The board provides six independent ports for managing DVB-S/S2 modulators, receivers and ASI/IP boards in a professional broadcasting environment. It enables centralized configuration of multiple modules within one networked system.

• RJ45 10/100 Base-T interface

Equipped with a standard RJ45 connector, the board ensures stable communication through 10/100 Base-T Ethernet. It supports both full and half duplex modes with automatic or manual negotiation.

• TCP/IP protocol support

The 6 ch IP Control Board operates under standard TCP/IP communication, ensuring fast data exchange and remote control across complex broadcasting infrastructures. This allows engineers to configure and manage connected DVB devices remotely.

• Compact and energy-efficient design

With dimensions of only 82×61 mm and power consumption not exceeding 1 W, the module fits easily into OEM enclosures and professional broadcast systems while maintaining long-term reliability.

• Stable 8–18 V supply range

The board operates over a wide input voltage range from 8 to 18 V, ensuring flexibility for different broadcasting setups and stable operation even during voltage fluctuations.

• OEM-ready modular integration

Designed for seamless OEM integration, the board connects easily with other UMT LLC DVB modules. It enables engineers to build modular broadcasting chains with unified IP management.

⚙️ Main functions

• Centralized DVB module control

The board allows network-based management of up to six DVB modules simultaneously. Each port functions independently, reducing hardware complexity and simplifying configuration across multiple devices.

• Network management and monitoring

It provides monitoring, diagnostics and firmware update capabilities over TCP/IP. Engineers can track device status, performance and parameters remotely through a unified interface.

• Flexible Ethernet operation modes

Supporting both automatic negotiation and manual setup, the board adapts to different network configurations while maintaining consistent data transfer across connected DVB devices.

• Scalable multi-module system design

All six ports work independently, allowing easy expansion without redesigning the overall architecture. This supports future growth in professional broadcasting networks.

• Low power and compact operation

With only 1 W power draw and a compact 82×61 mm form factor, the board fits efficiently into OEM devices and supports continuous 24/7 professional use.

🧩 Applications

• Digital headend management systems

The 6 ch IP Control Board is used to manage multiple DVB modules in centralized headend systems. It simplifies complex setups by providing unified TCP/IP control over all components.

• IP-to-DVB gateway control

The board enables IP management for IP-to-DVB and DVB-to-IP conversion equipment. Its stable Ethernet operation ensures precise synchronization and reliable communication.

• Broadcasting infrastructure integration

It is suitable for managing DVB modulators, receivers and converters across large-scale networks. The IP control system ensures consistent communication and simplified expansion of existing infrastructures.

• OEM and custom DVB equipment

The compact low-power design supports seamless integration into OEM broadcasting devices. It is well suited for developers creating customized IP-managed systems for professional broadcasting needs.

💡 Why you should buy from us❓

• 1.5 years warranty
• 7 years after-sales support
• Remote support team of engineers
• Discount program for regular customers 🎁
