0.2 W Ku-band block up-converter with LO of 9.75 GHz BUC-Ku002-9.75 v2 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2 or DVB-C standards (use “Customized” button to choose needed parameters) and operates with up to 25 carriers. BUC-Ku002-9.75 v2 has output flange of PBR120 type and can be used with regular radio-relay link (directional) or broadcast (sector and OMNI) antennas. BUC-Ku002-9.75 v2 supports all modulation types up to 32APSK and 256QAM (you may choose the modulation type while filling the “customized equipment” form). BUC-Ku002-9.75 v2 has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation, therefore the local oscillator of BUC-Ku002-9.75 v2 is locked by PLL with internal frequency reference). BUC-Ku002-9.75 v2 provides 10.7 – 11.7 GHz output frequency range (bandwidth in Ku-band) for 950-1950 MHz input frequency range (bandwidth in L-band).
The BUC-Ku002-9.75 v2.0 is a professional-grade DVB-S/S2 Ku-band Block Upconverter (BUC) engineered for satellite uplinks, MVDS networks, VSAT terminals and mobile DSNG broadcast units. As a compact Ku-band BUC transmitter, it features a fixed 9.75 GHz PLL local oscillator that delivers high frequency stability and low phase noise for clean carriers and consistent EVM. This solid-state Ku-band outdoor BUC integrates an internal 10 MHz reference, simplifying timing and improving long-term stability for DVB-S2 headend workflows and TV repeater station links.

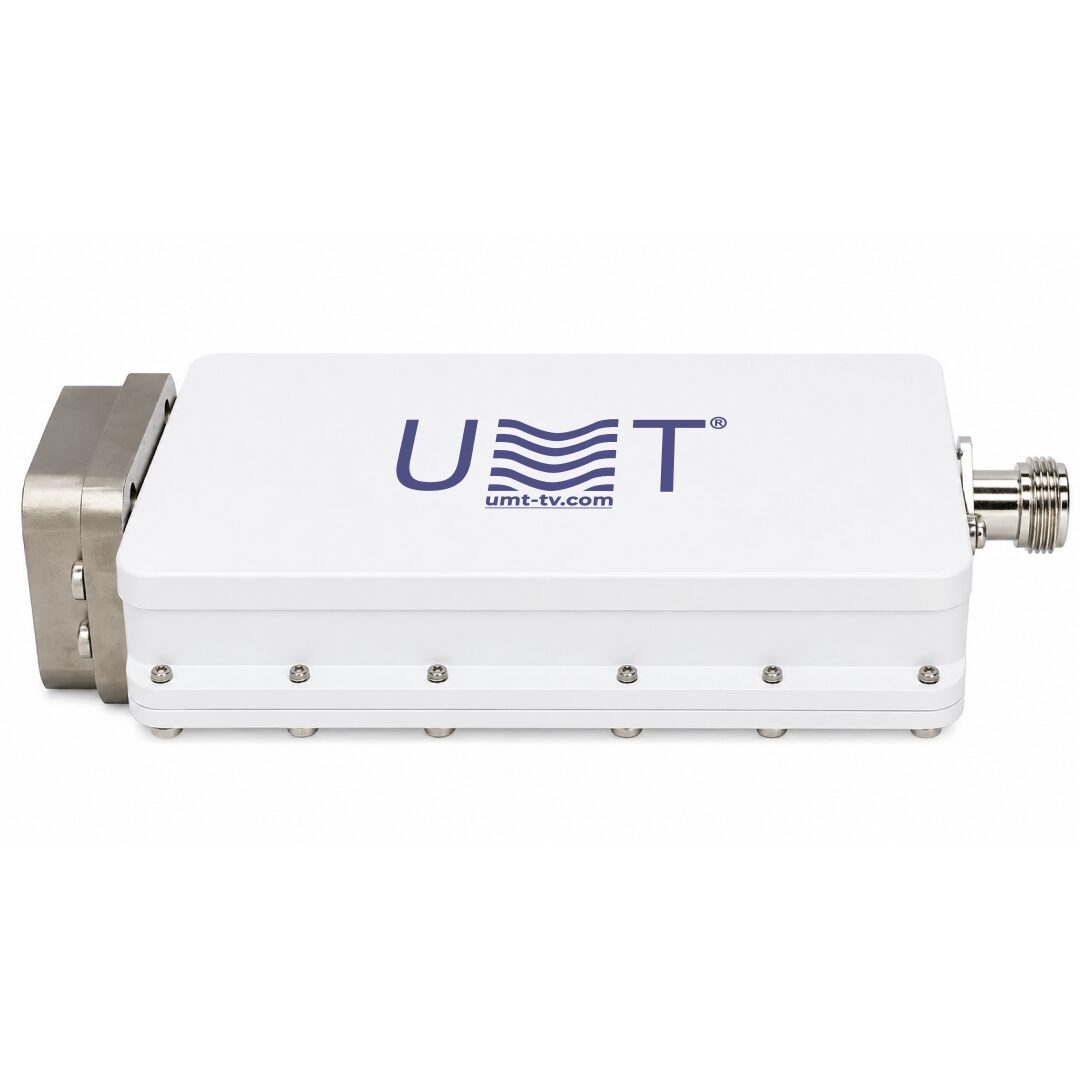

This Ku-band Block Upconverter 0.2W v2.0 provides a minimum 0.2 W output power @ P1dB with ≥45 dB gain and ALC (25 dB dynamic range, 30 mW ALC level) for automatic output leveling and protection of the transmit chain. The phase-locked LO (±2 ppm) achieves low phase noise (−80 dBc/Hz @1 kHz, −85 dBc/Hz @10 kHz, −100 dBc/Hz @100 kHz), supporting high-linearity Ku-band BUC operation with DVB-S2 32APSK and 256QAM. Spectral purity is ensured by in-band spurious ≤−55 dBc, LO leakage ≤−40 dBm and image rejection ≥60 dB.
✅ Engineered for outdoor deployment

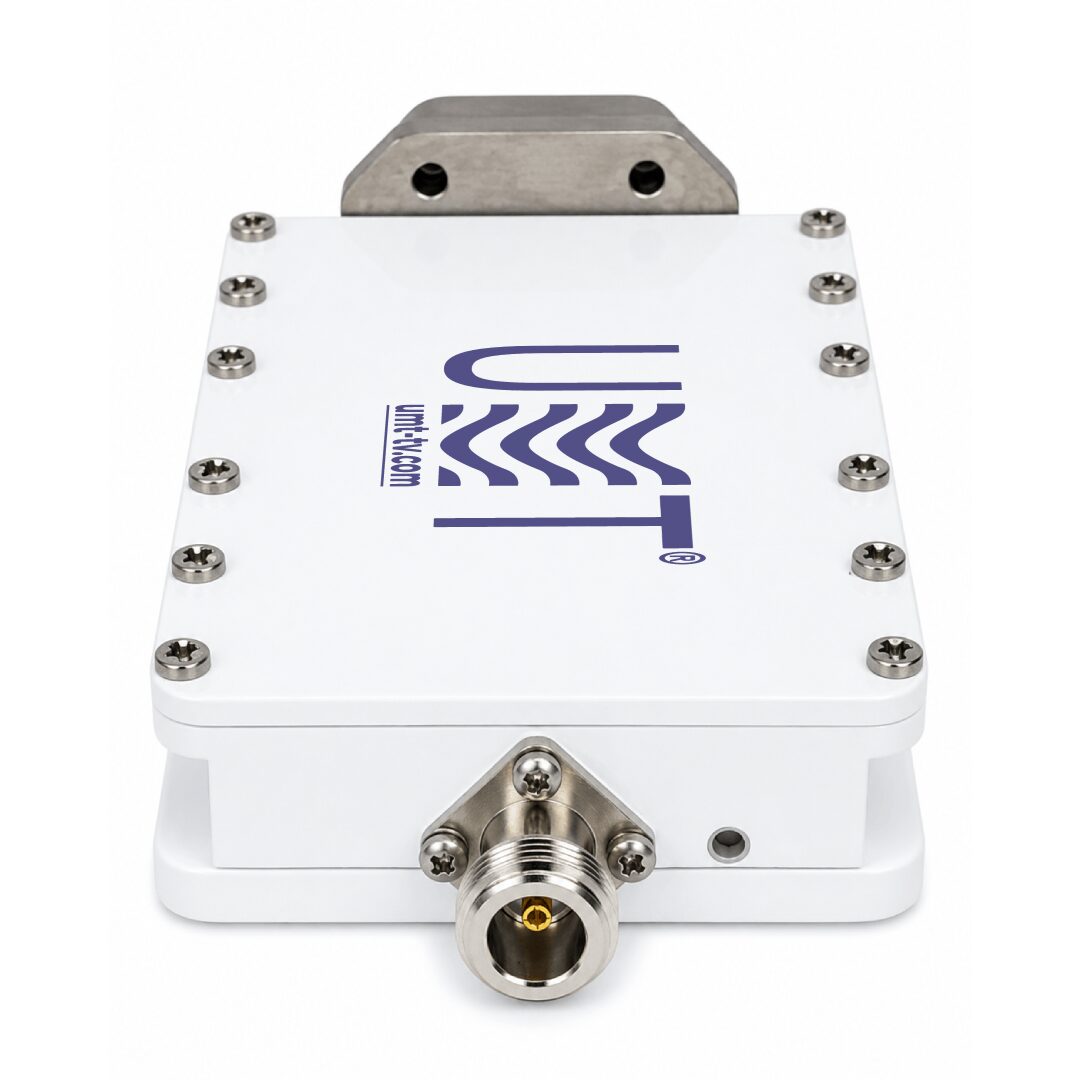

The BUC-Ku002-9.75 v2.0 comes in a rugged IP65 weatherproof BUC enclosure for reliable field performance in harsh climates. It provides WR75 waveguide / PBR120 flange RF output and 50-ohm N-type Female IF input (F and SMA – by request), making it a fully integrated outdoor Ku-band transmitter for professional DVB-S/S2 systems and MVDS block upconverter nodes.
✅ With support for up to 25 carriers
This multicarrier Ku-band BUC meets the needs of broadcasters and system integrators building dense MVDS/DVB-S2 sectors. The combination of low phase noise, high image rejection (60 dB) and in-band spurious ≤−55 dBc ensures clean, reliable transmission across Ku-band BUC for VSAT and DSNG applications. Its ALC works seamlessly in headends with ALC and AGC workflows, maintaining stable output across varying IF levels.
✅ Optimized for compact, energy-efficient integration
Designed as a solid-state Ku-band BUC with ≤6 W power consumption and ~0.55 kg mass, the BUC-Ku002-9.75 v2.0 is ideal for space-limited installations and mobile broadcast units. The unit’s WR75 PBR120 flange and N-type IF streamline mechanical and RF integration for Ku-band BUC integration projects handled by a Ku-band BUC system integrator.
🛠️ Whether you are planning a Ku-band Block Upconverter for MVDS, sourcing a Professional Ku-band BUC with internal 10 MHz reference, or standardizing on a Compact Ku-band BUC for DVB-S2 systems, this model balances low phase noise, high linearity and practical ready for integration mechanics.
🛒 The BUC-Ku002-9.75 v2.0 is available for purchase and available by order for tailored deployments. You can buy online, shop now, request quote, get pricing, request pricing or inquire to buy depending on your procurement flow. (Project availability and in stock status may vary by configuration; please get a quote.)
📌 Key Features
-
Compact Ku-band BUC-Ku002-9.75 v2.0 with solid-state design
The BUC-Ku002-9.75 v2.0 is a compact Ku-band Block Upconverter designed for integration in space-limited DVB-S2 and MVDS systems. Its solid-state architecture ensures high reliability, low power draw (≤6 W) and lightweight operation (~0.55 kg).
-

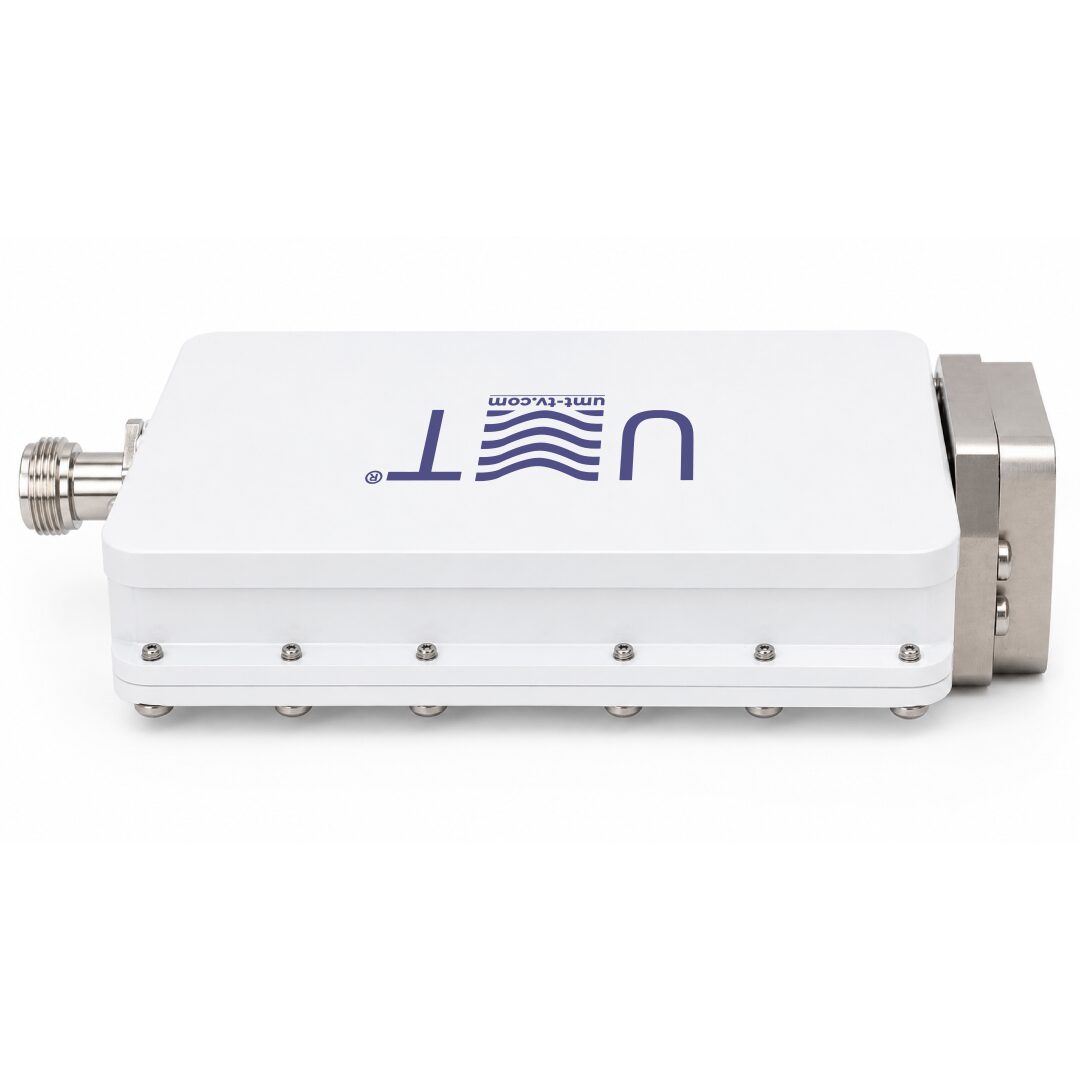

Fixed 9.75 GHz PLL LO with ±2 ppm stability
The BUC-Ku002-9.75 v2.0 with PLL LO 9.75 GHz provides excellent frequency stability and low phase noise (−85 dBc/Hz @10 kHz), making it ideal for DVB-S2 uplinks and TV repeater stations.
-
Ku-band BUC-Ku002-9.75 v2.0 with 0.2 W output power and ALC
Delivers 0.2 W @P1dB output power with an integrated ALC (25 dB dynamic range). This ensures stable RF output (30 mW at ALC level) and protects against overload in multicarrier Ku-band BUC applications.
-

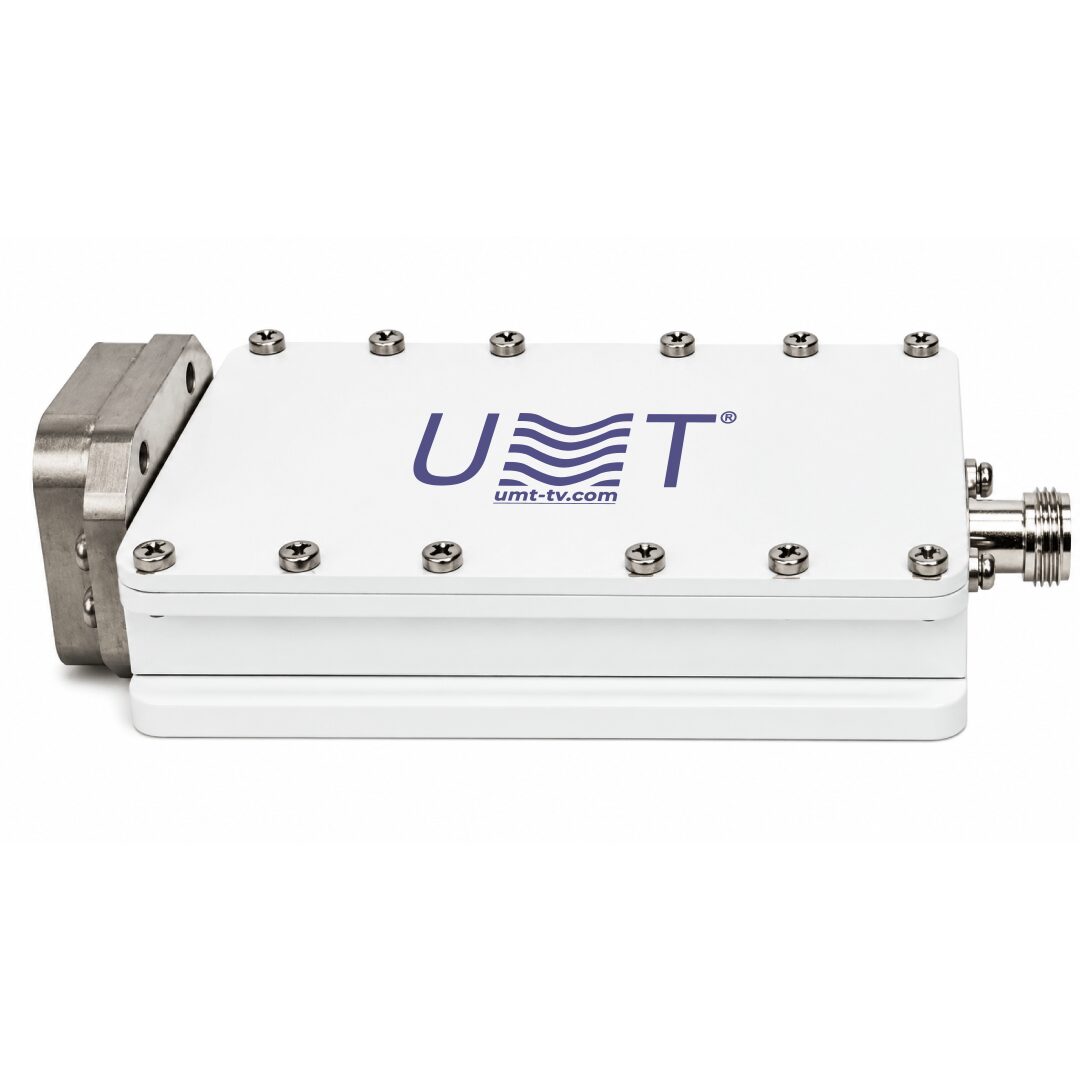

BUC-Ku002-9.75 v2.0 with integrated 10 MHz reference
The internal 10 MHz reference oscillator keeps synchronization precise without the need for external reference sources – a key advantage of the BUC-Ku002-9.75 v2.0 over many competitor solutions.
-

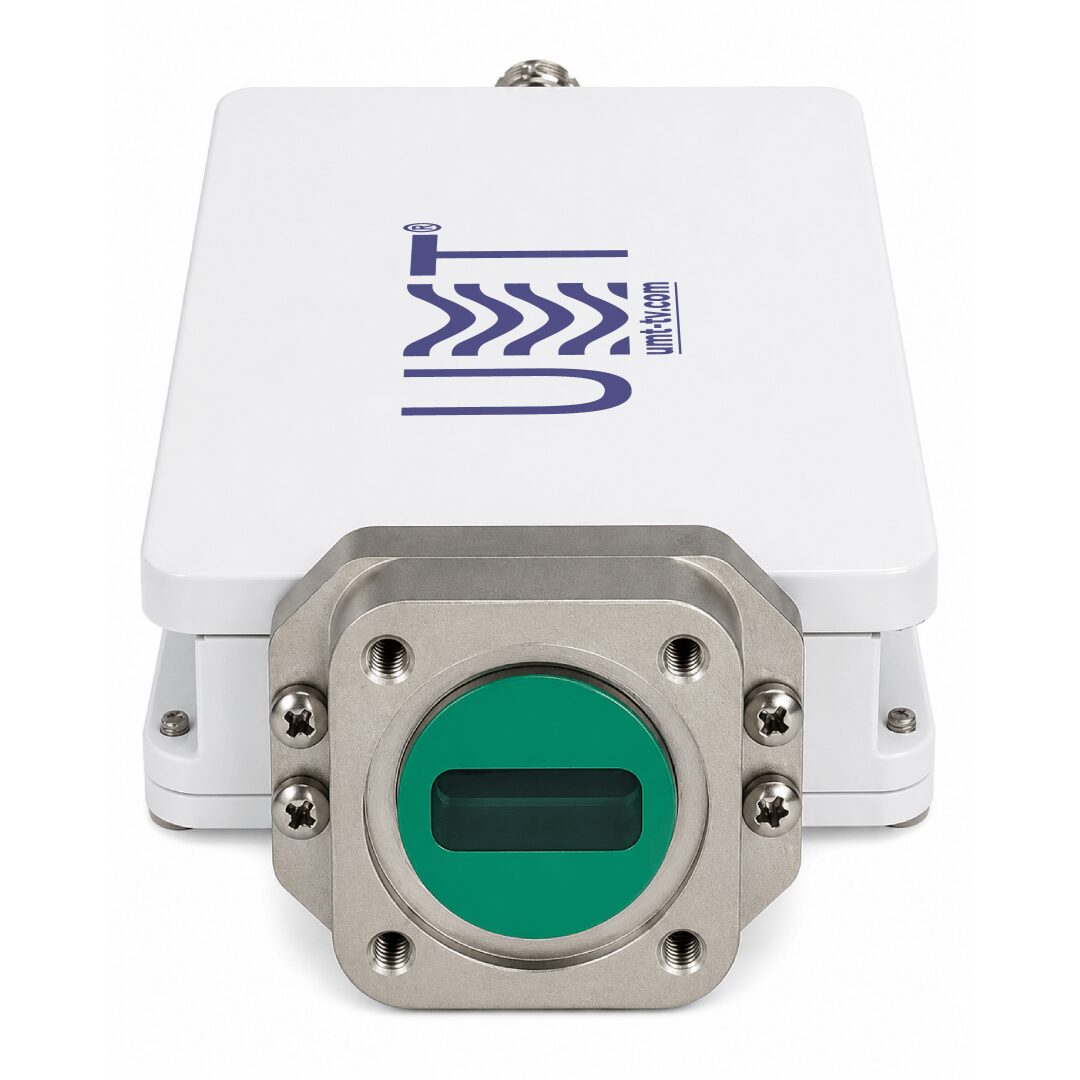

BUC-Ku002-9.75 v2.0 with WR75 PBR120 flange and N-type IF input
Equipped with WR75 waveguide / PBR120 flange RF output and a 50 Ω N-type Female IF input, the BUC-Ku002-9.75 v2.0 is easy to integrate into existing uplink systems, repeaters and MVDS headends.
-
Superior linearity and spectral purity with BUC-Ku002-9.75 v2.0
With in-band spurious ≤−55 dBc, LO leakage ≤−40 dBm and image rejection ≥60 dB, the BUC-Ku002-9.75 v2.0 maintains clean transmission for 256QAM / 32APSK modulation.
-
Outdoor-ready Ku-band BUC-Ku002-9.75 v2.0
Built in an IP65-rated enclosure, the BUC-Ku002-9.75 v2.0 withstands harsh climates while remaining compact and lightweight for fixed or mobile deployments.
⚙️ Main Functions
-
IF to Ku-band frequency upconversion with BUC-Ku002-9.75 v2.0

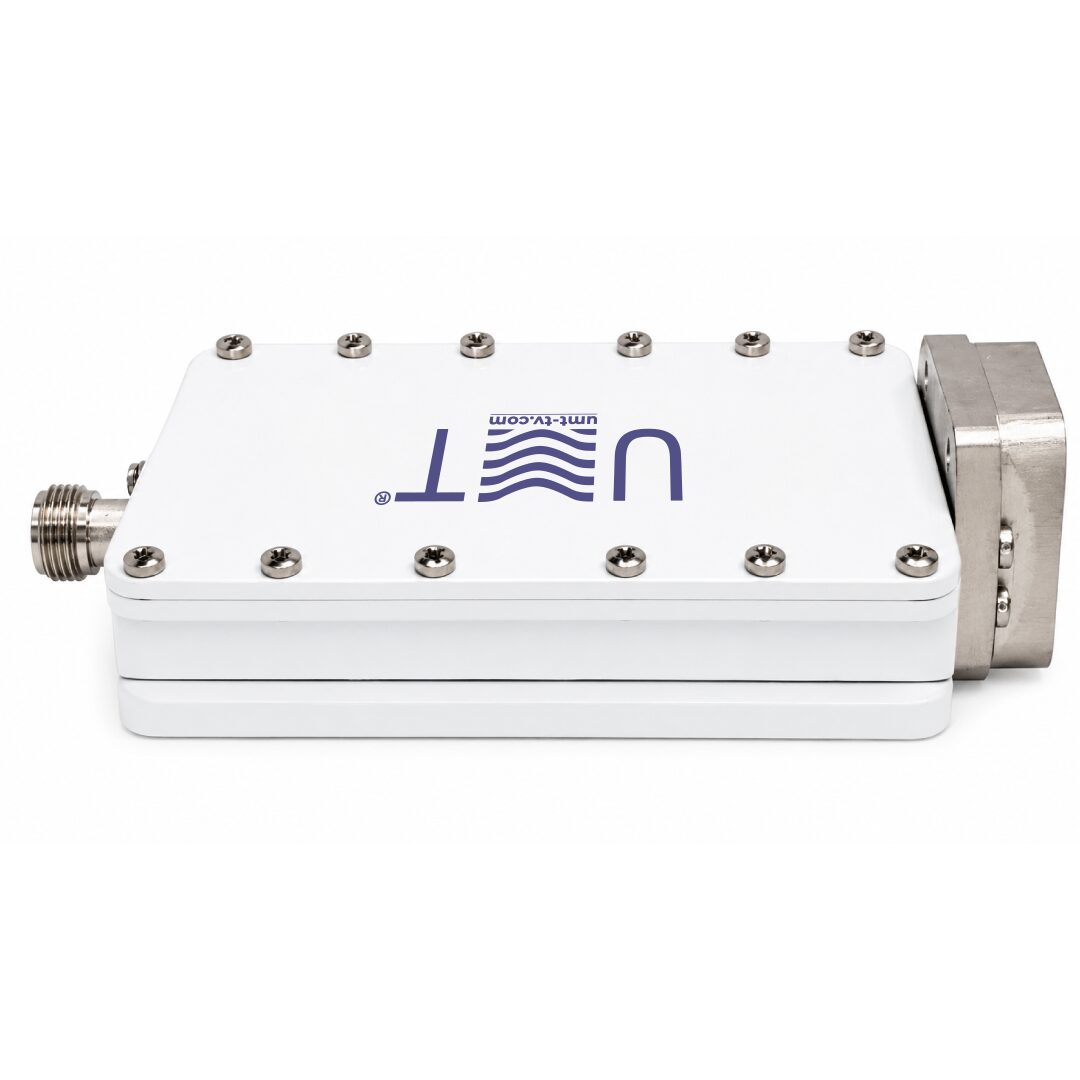

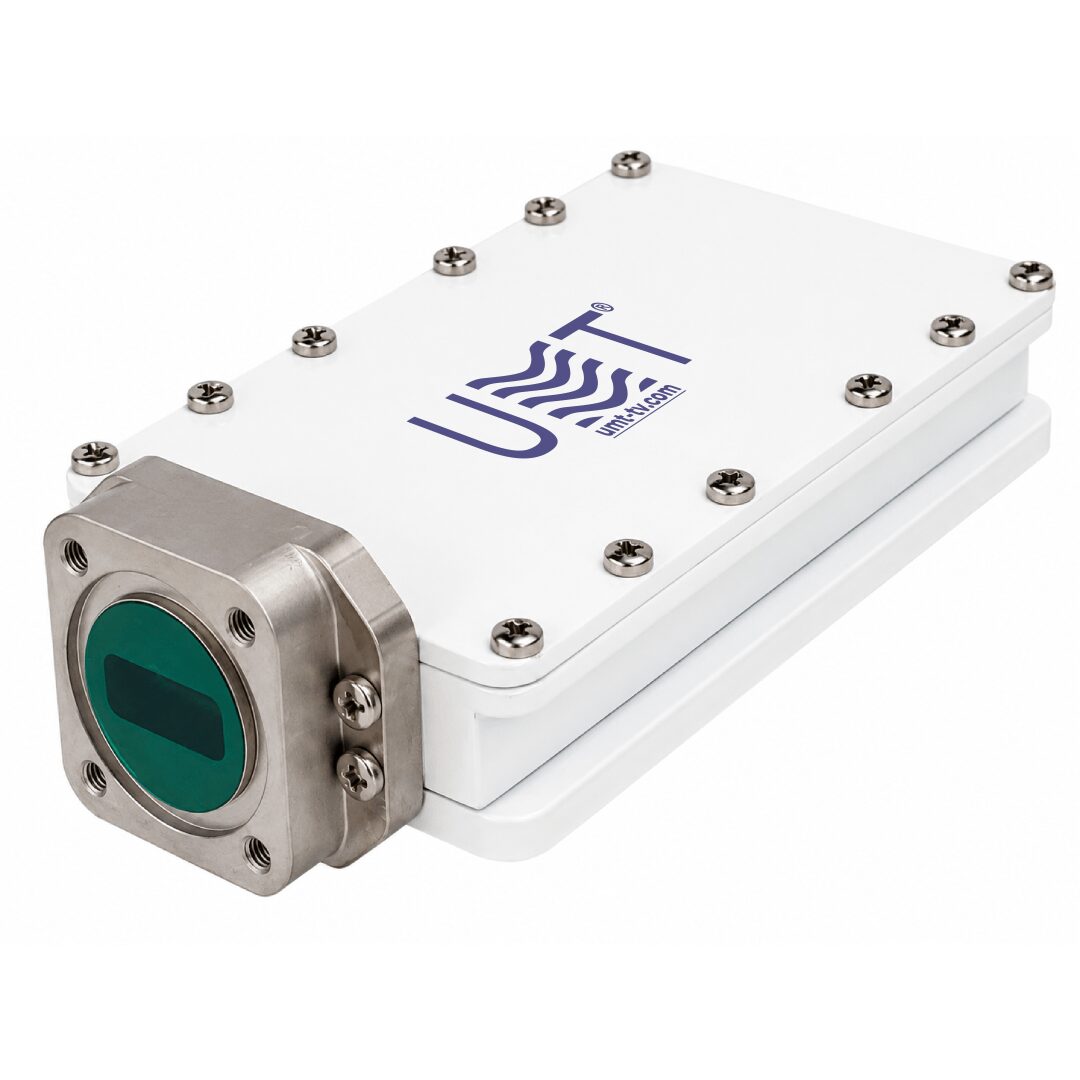

Performs accurate upconversion from 950-1950 MHz IF to 10.7-11.7 GHz Ku-band RF, ensuring compatibility with DVB-S/S2 modulators.
-
Automatic output power control in BUC-Ku002-9.75 v2.0
The integrated ALC circuitry (25 dB) stabilizes output power and secures long-term reliability of the transmit chain in multi-carrier DVB-S2 systems.
-
Stable frequency operation with BUC-Ku002-9.75 v2.0
With PLL LO (±2 ppm) and an internal 10 MHz reference, the BUC-Ku002-9.75 v2.0 ensures frequency accuracy over extended operation.
-
High-linearity amplification in BUC-Ku002-9.75 v2.0
Precision amplification stages and filtering provide distortion-free transmission, maintaining spectral purity in professional broadcasting.
-
Seamless integration of BUC-Ku002-9.75 v2.0
Easily integrated into VSAT terminals, DSNG vehicles, TV repeater stations and MVDS nodes requiring a compact Ku-band Block Upconverter.
🧩 Applications
-
VSAT and DSNG uplinks with BUC-Ku002-9.75 v2.0
Acts as a reliable VSAT BUC for small stations and a DSNG uplink transmitter for mobile contribution vehicles.
-
MVDS broadcasting with BUC-Ku002-9.75 v2.0
Works as a stable MVDS block upconverter, supporting multi-carrier terrestrial video distribution across Ku-band networks.
-
TV repeater stations using BUC-Ku002-9.75 v2.0
Provides reliable RF conversion and output stability in Ku-band TV repeater and headend systems.
-
Mobile broadcast units with BUC-Ku002-9.75 v2.0
Lightweight and compact, this Ku-band outdoor BUC integrates seamlessly into broadcast vans and temporary uplink stations.
-
OEM integration with BUC-Ku002-9.75 v2.0
Tailored for OEM system builders, the BUC-Ku002-9.75 v2.0 is compact enough for cabinets, modular headends, or integrated uplink solutions.
-
Harsh climate operation with BUC-Ku002-9.75 v2.0
With its IP65 housing, the BUC-Ku002-9.75 v2.0 withstands rain, dust, humidity and wide temperature ranges for reliable field deployment.
