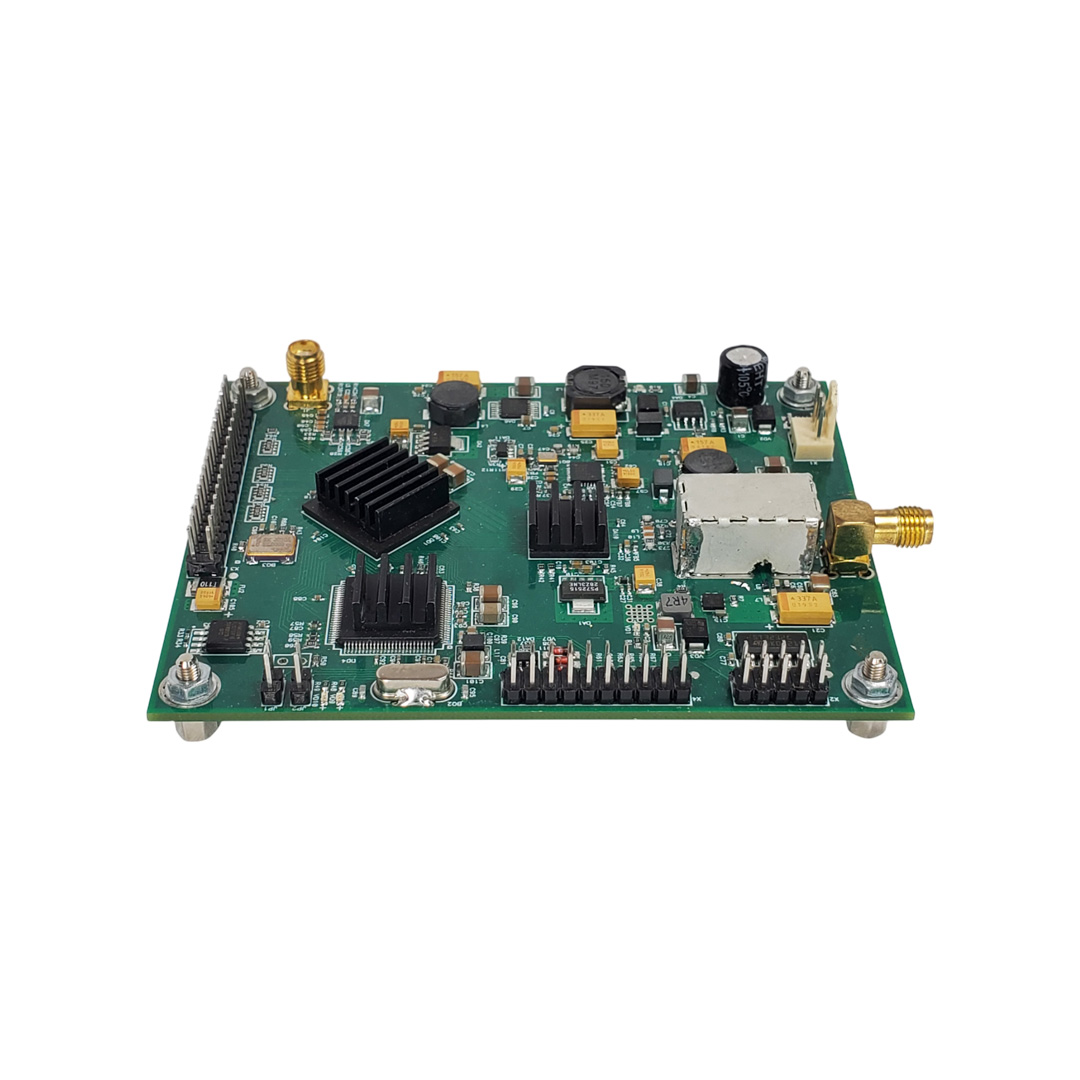

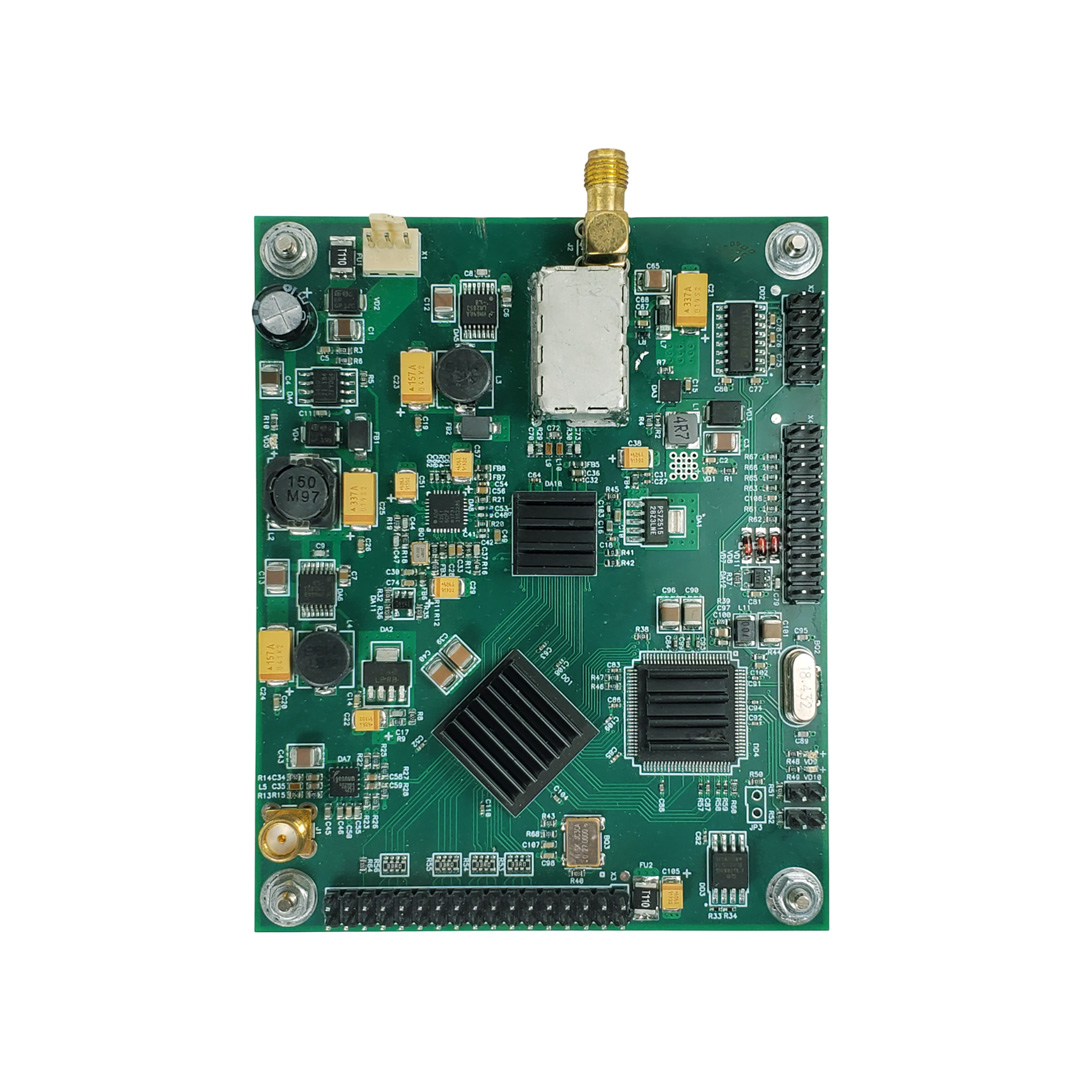

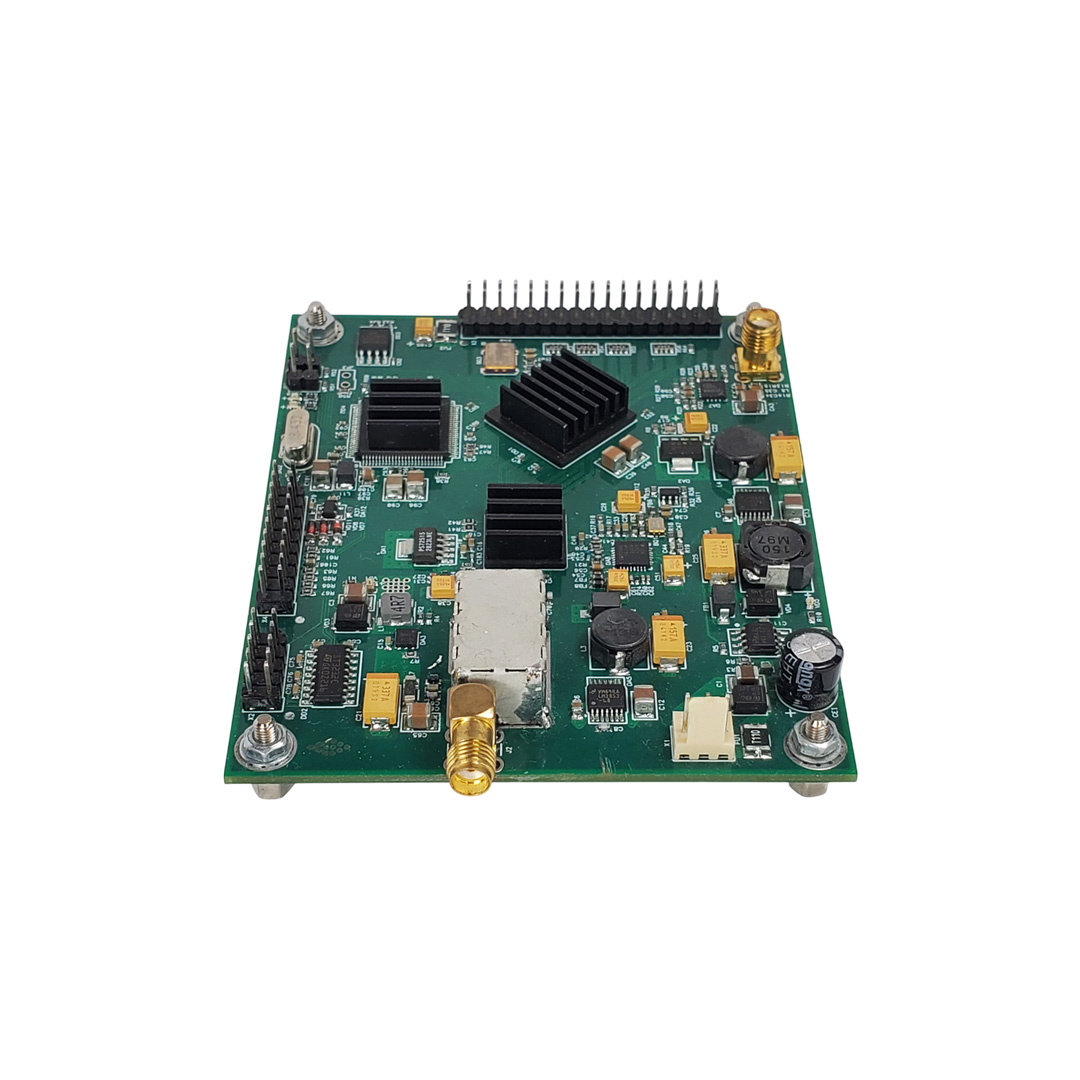

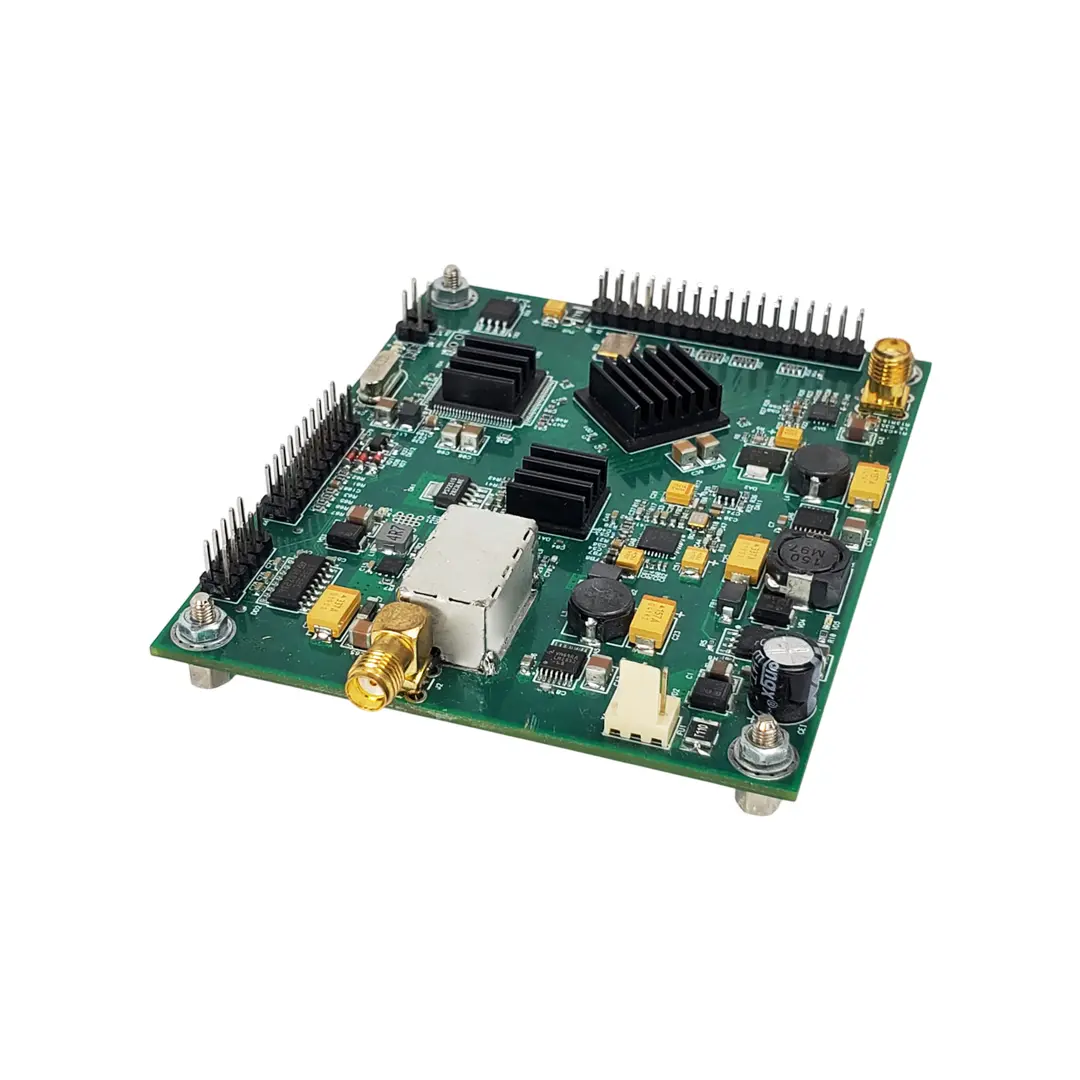

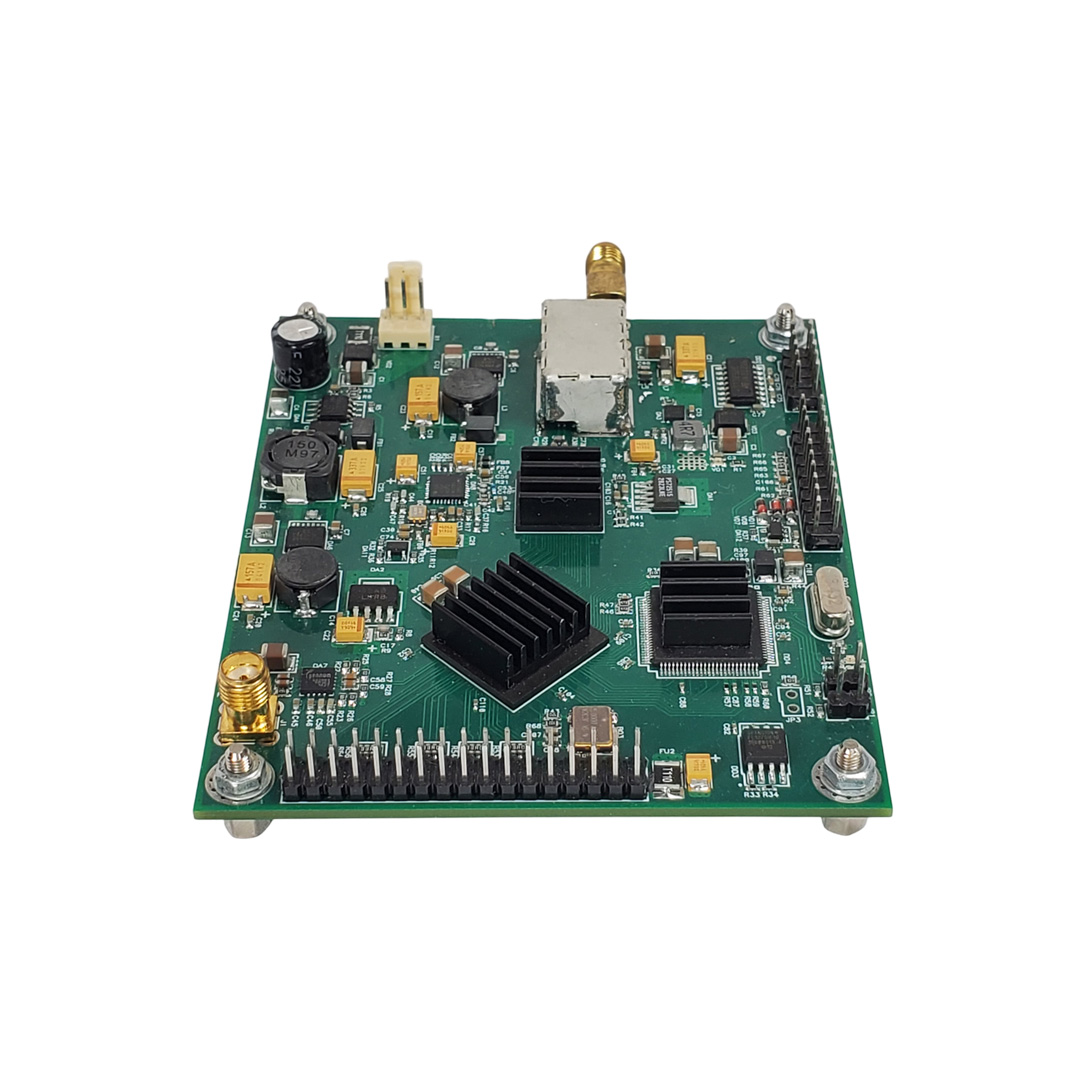

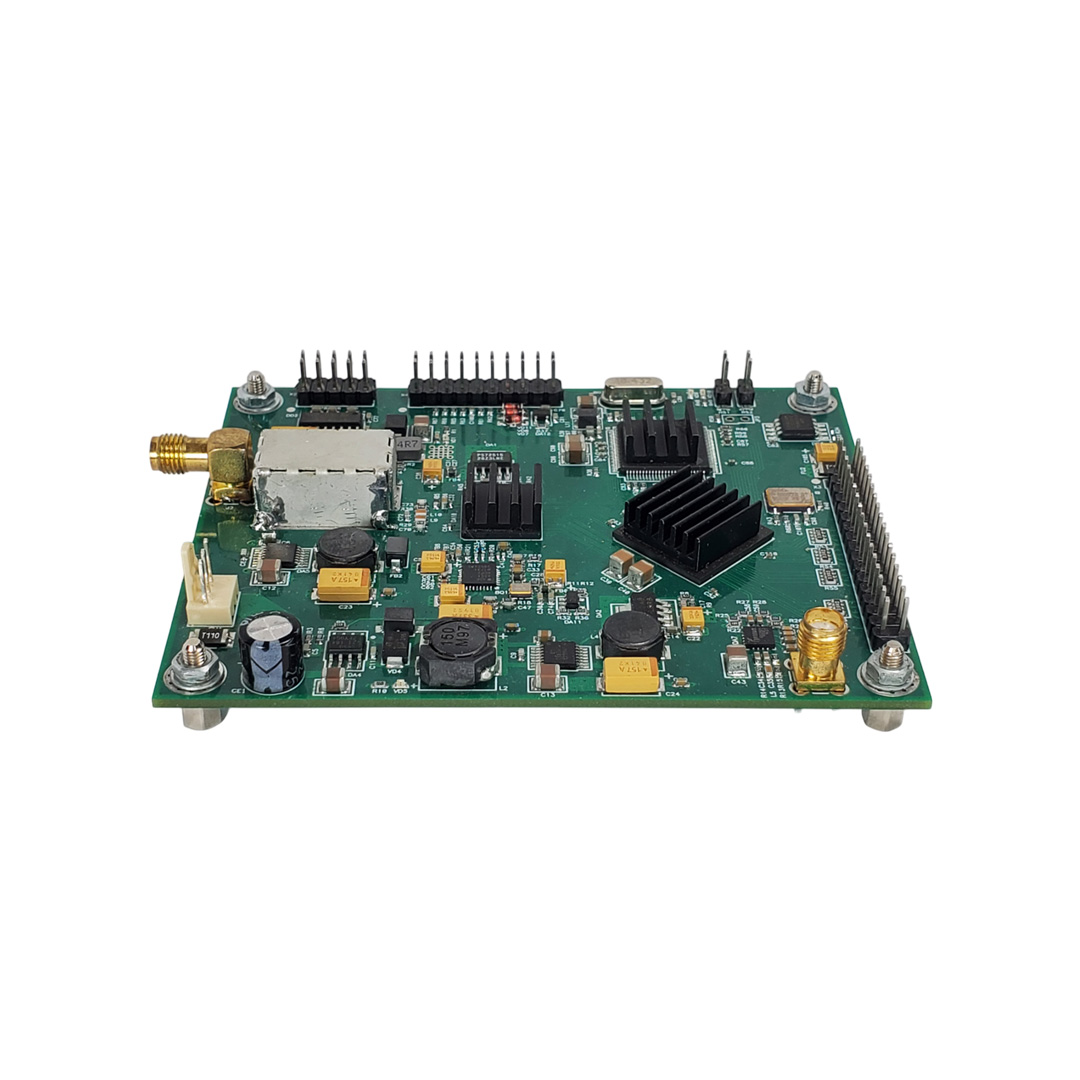

DVB-T2 modulator board
Short description
High-performance DVB-T2 modulator module designed for OEM integration, supporting advanced digital terrestrial broadcasting with robust signal quality and efficient spectrum utilization.
Request for customized equipment HEAD-END
-
Description
-
Media
-
Downloads

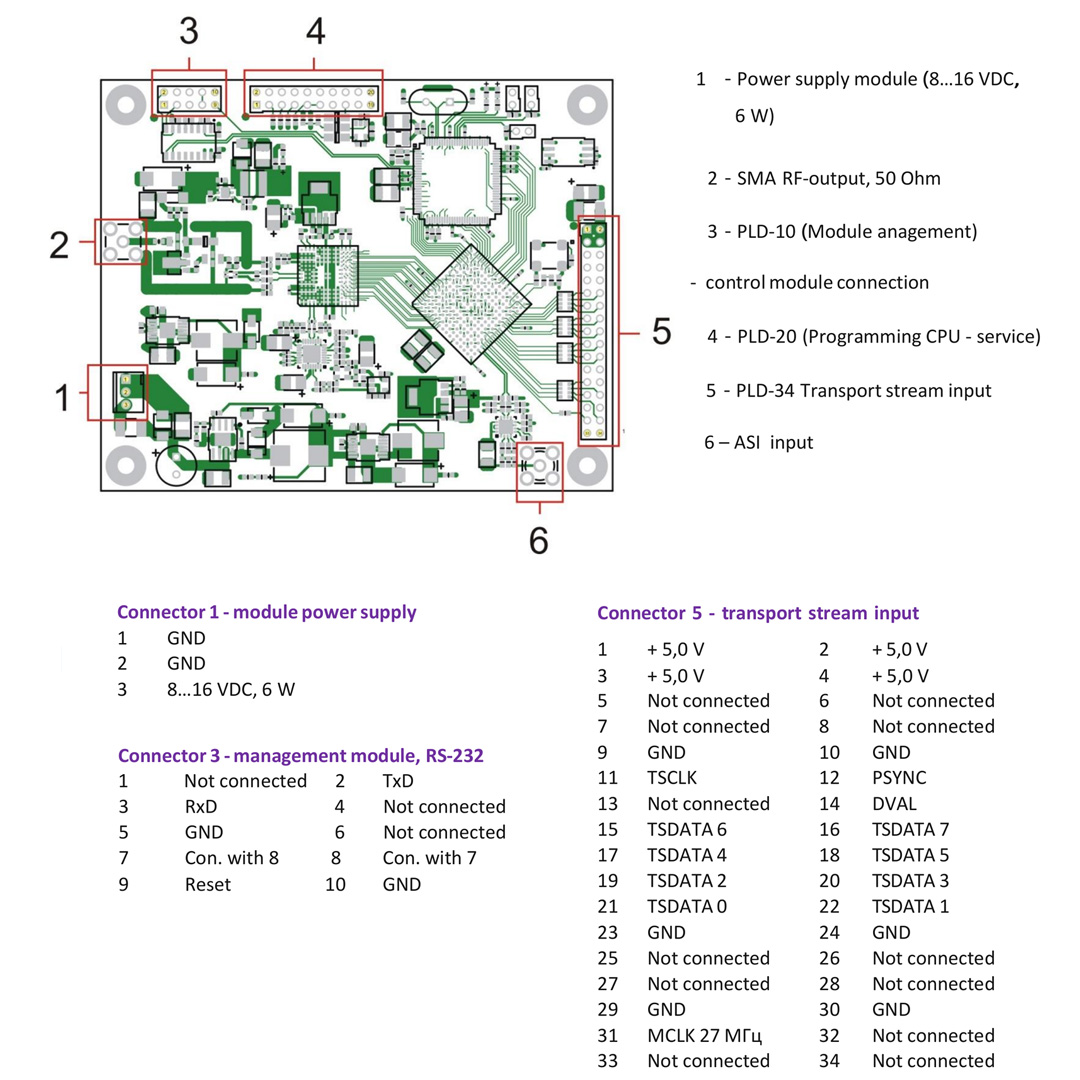

DVB-T2 modulator board can be used both as independent modulator with ASI input and in various converters, modulators, transmodulators and other digital broadcasting equipment.
Our DVB-T2 modulator module is engineered to convert parallel DVB transport streams into terrestrial IF signals, adhering to the EN302 755 standard. It supports various input sources, including DVB-S/S2/C/T/T2 receivers, MPEG encoders, and IP-to-DVB TS receivers. The module offers high-quality modulation with fine-tuning capabilities, compact size, and low power consumption, ensuring flexibility and reliability in digital broadcasting applications. Control and monitoring are facilitated via TCP/IP protocol, allowing seamless integration into existing systems.
The sources of input transport stream for this modulator board may be the followings:
📌 Key Features:
-
Compliance with DVB-T2 (EN302 755) standard
-
Supports multiple input sources which include our DVB boards
-
High-quality modulation with fine-tuning capabilities
-
Compact design with low power consumption
-
Remote control and monitoring via TCP/IP (using our IP control board)
✅ Advantages
- High-Quality Signal – Delivers superior modulation performance with high MER and low shoulder levels, ensuring reliable terrestrial broadcasting.
- Flexible Configuration – Supports a wide range of modulation parameters, including various constellations, code rates, and guard intervals, adaptable to different broadcasting needs.
- Compact and Efficient – Small form factor and low power consumption make it suitable for integration into space-constrained environments.
- Remote Management – TCP/IP control interface allows for easy monitoring and adjustment from a PC, facilitating remote operation and maintenance.
- Versatile Applications – Ideal for building DVB-T2-based converters, modulators, and regenerators in digital broadcasting systems.
🧩 Applications
- Digital Terrestrial Television (DTT) – Deployment in DVB-T2 networks for efficient spectrum utilization and high-quality signal delivery.
- Broadcasting Systems – Integration into headends and transmitters for terrestrial broadcast services.
- Regenerators – Use in signal regeneration to extend the reach of DVB-T2 signals.
- Converters – Conversion of DVB transport streams to terrestrial IF signals for various broadcasting needs.
📈 Enhance your digital broadcasting solutions with our advanced DVB-T2 modulator module
🤝 Contact us today for for more information, OEM integration options, datasheets or to request a quote
Video instructions about L-band DVB-S-S2-T modulator board watch here
Modulation type | DVB-T2 |
Input | |
---|---|
Input signal | parallel DVB transport stream from compatible modules or ASI input |
Type of input connector | PLD-34 |
Modulation parameters | |
DVB-T2 mode | |
Constellation | QPSK, 16QAM, 64QAM, 256QAM |
MER | >42 dB@ 500MHz |
TS Mode Adaption | Normal, High eff |
FEC Frame Size | Normal, Short |
Coderate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
Data Constellation | QPSK, 16QAM, 64QMA, 256QAM |
L1-Post Constellation | BPSK, QPSK, 16QAM, 64QAM |
Constellation Rotate | Enabled, Disabled |
Carrier Mode | 1k, 2k, 4k, 8k, 8kext., 16k, 16k ext. |
Pilot S | PP2, PP3, PP8 |
Guard Interval | 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 |
Bandwidth | 1.7, 5, 6, 7 and 8 MHz |
Output | |
RFout | -6 dBm…. +4.2 dBm @ 50 Ω |
Control Interface | TCP/IP |
Supply voltage | 8…16 V |
Power consumption | ~ 6 W |
Board dimensions | 102х82 mm |
Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
